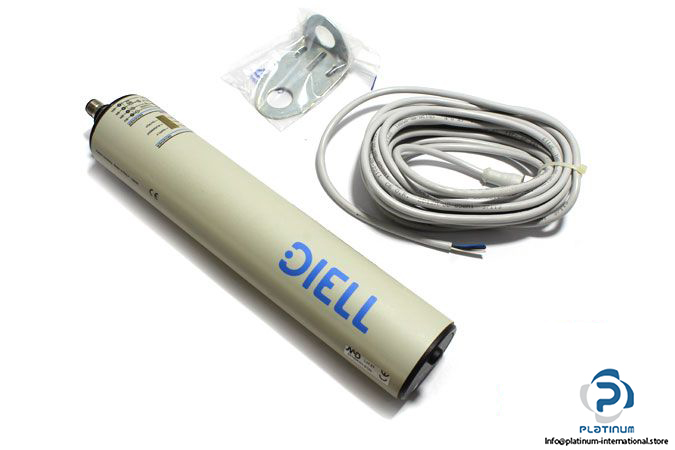

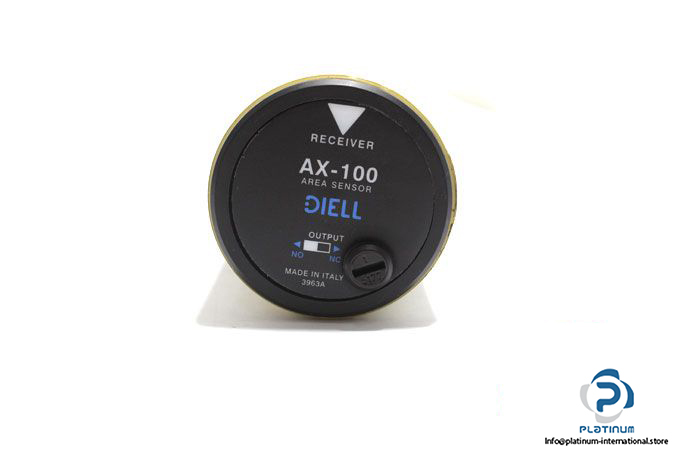

Diell AX100R/0N-EC00 Medium Resolution Area Sensor – Receiver

Manufacturer: MD Micro Detectors / DIELL

Type: Medium Resolution Area Sensor – Receiver

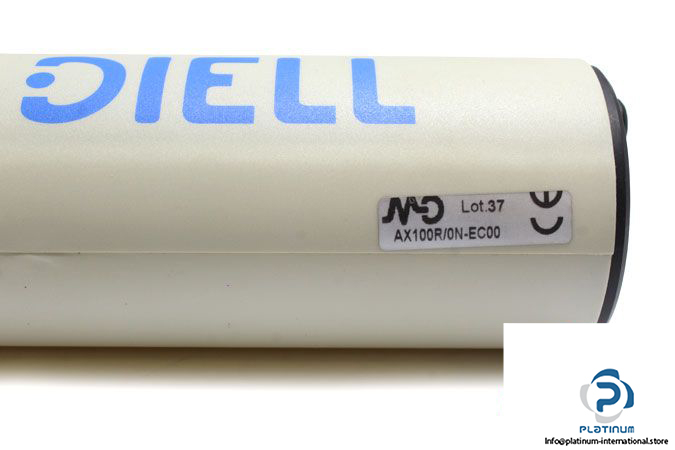

Model: AX100R/0N-EC00

Application: For detecting objects on conveyors or coming out from areas by random position

Sensing Range: 1 m

Object Diameter: 4 … 8 mm

Operating Voltage: 24 V DC

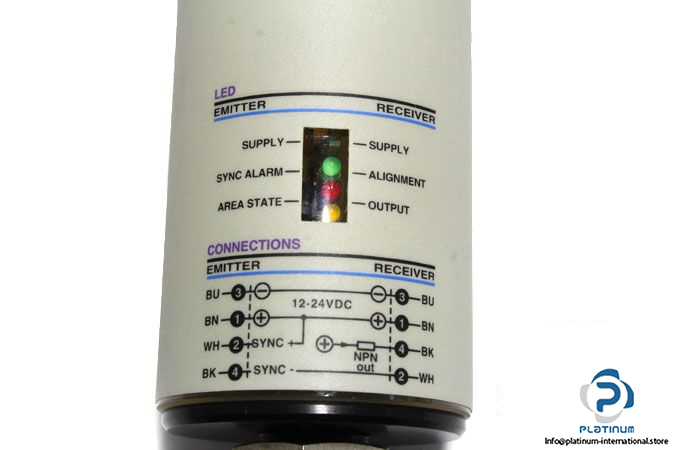

Electrical Design: NPN

Switching Output: Normally open/Normally closed

Response Time: 3 ms

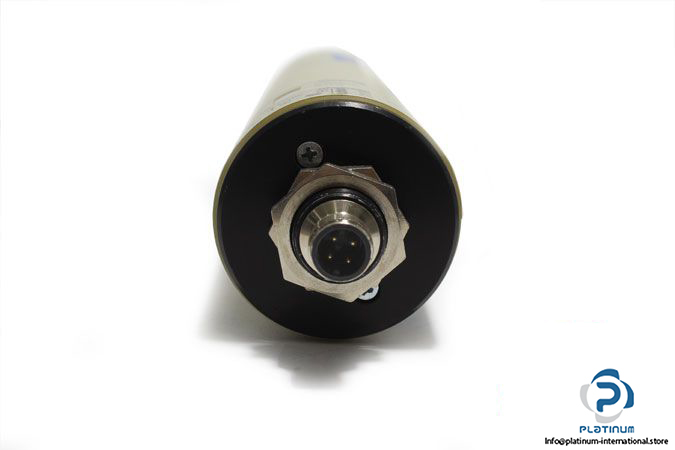

Connector Type: M12 standard plug-in exit

Enclosure Rating: IP65

Ambient Operating Temperature: 0 … 50°C

Diameter, Housing Length: 50 ,274 mm

Housing Material: PMMA
