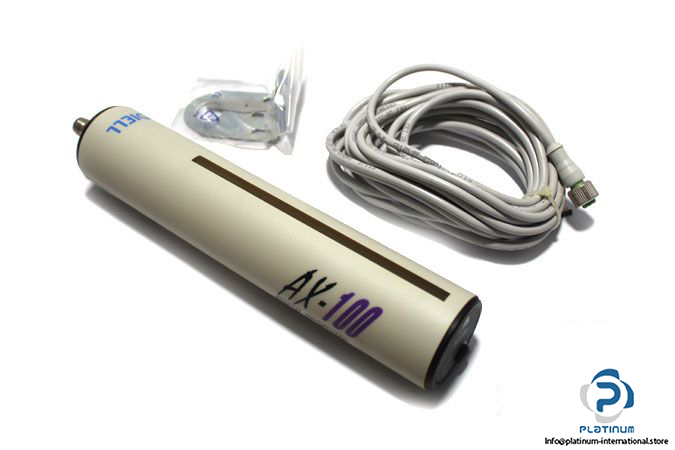

Diell AX100S/00-EC00 Medium Resolution Area Sensor – Emmiter

Manufacturer: MD Micro Detectors / DIELL

Type: Medium Resolution Area Sensor – Emmiter

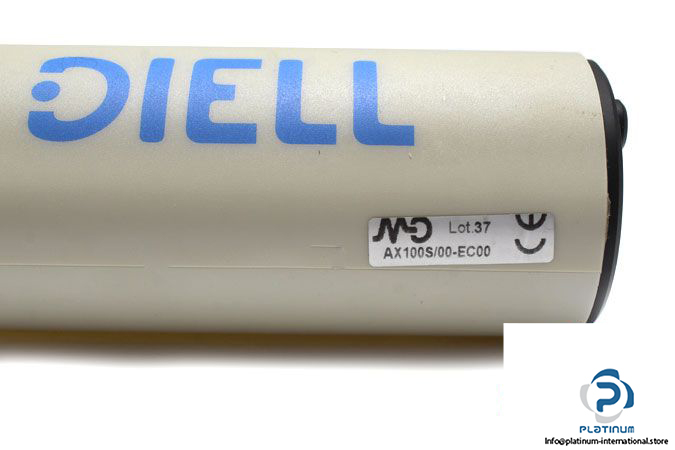

Model: AX100S/00-EC00

Application: For detecting objects on conveyors or coming out from areas by random position

Sensing Range: 1 m

Object Diameter: 4 … 8 mm

Response: 3 ms

Operating Voltage: 24 V DC

Switching Output: Normally open/Normally closed

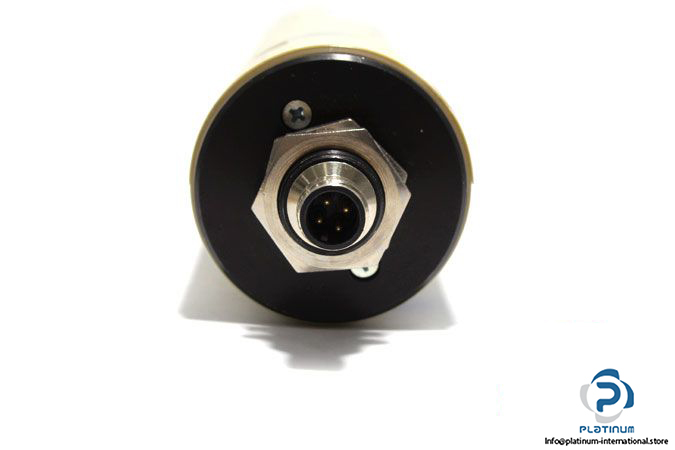

Connector Type: M12 standard plug-in exit

Enclosure Rating: IP65

Ambient Operating Temperature: 0 … 50°C

Diameter, Housing Length: 50, 247 mm

Housing Material: PMMA
