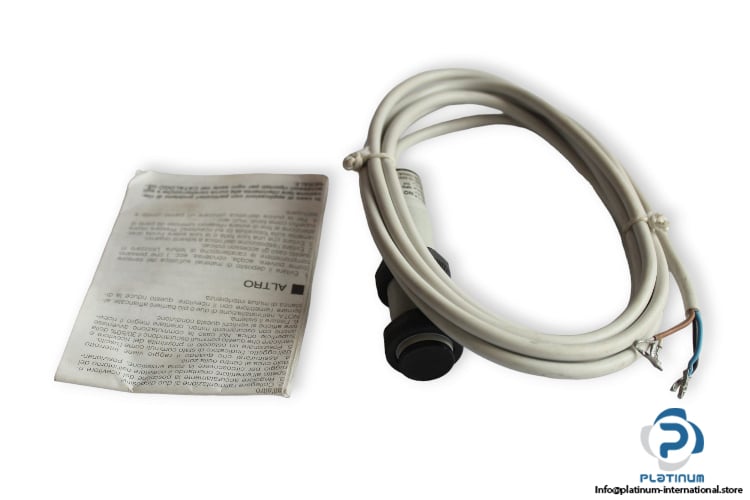

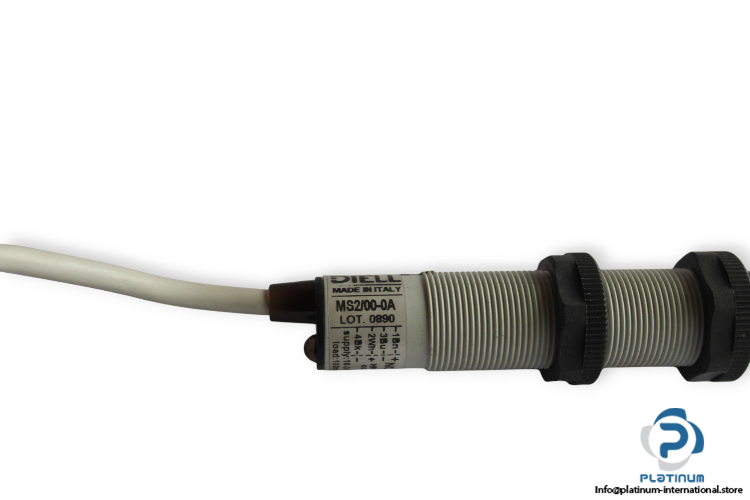

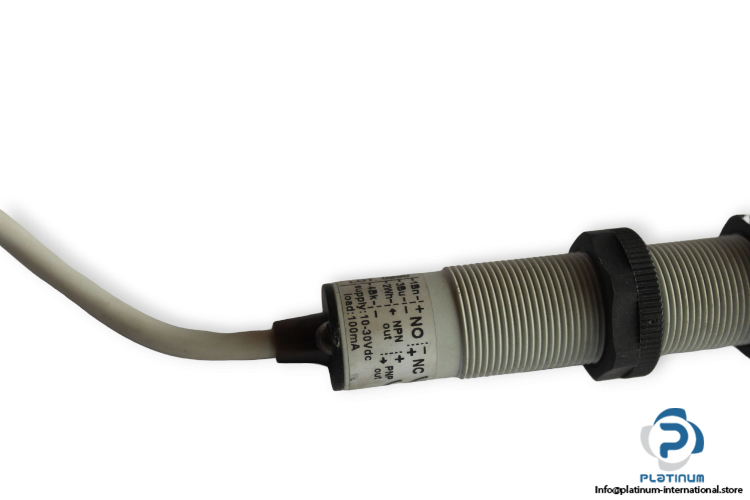

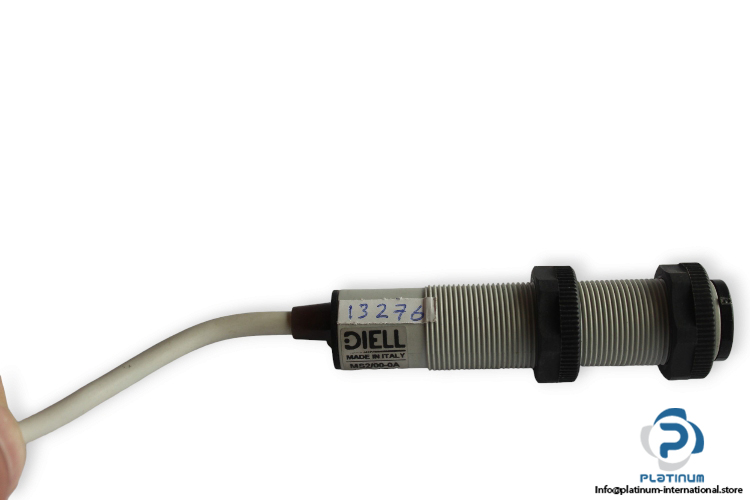

Diell MS2/00-0A Photoelectric Sensor

Manufacture: Diell
Type: Photoelectric Sensor
Model: MS2/00-0A

Optic: axial
Function: Direct Diffuse
Supply voltage: 10 … 30 V DC
Load current: 100 mA
Sensing range: 100 mm
Switching Frequency: 80 Hz
Power on delay: 200 ms
Electrical Design: PNP, NPN
Switching Output: Normally open/Normally closed
Connection: M18, Axial cable exit 4 wires
LED: red (output energized)
Protection Degree: IP67
Housing Material: PBT (plastic) / nicked plated brass (metallic) / PC (cable exit)
Optic material: PMMA
Tightening Torque: 1 Nm (plastic housing), 25 Nm (metallic housing)
Operating temperature range: -25 … 70°C
Length: 78.9 mm
