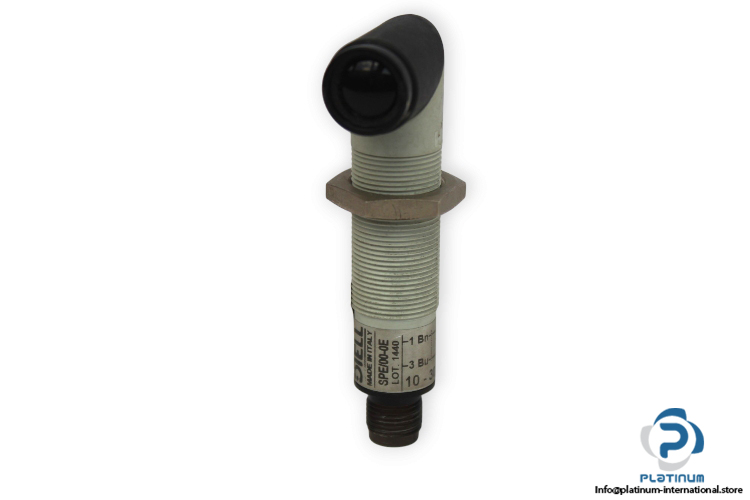

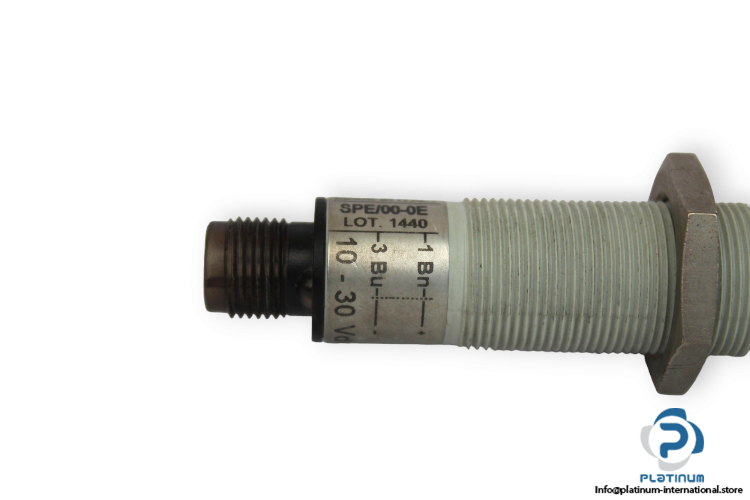

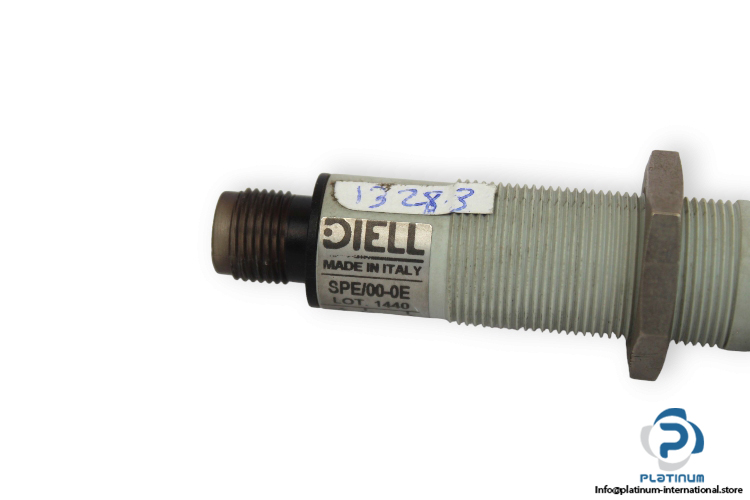

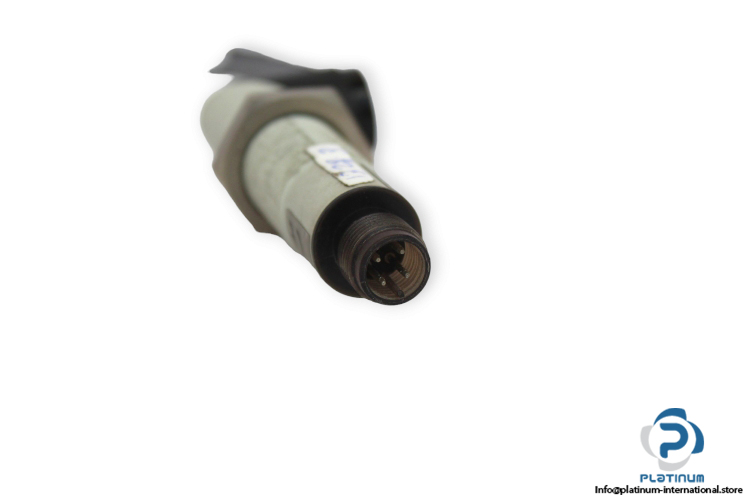

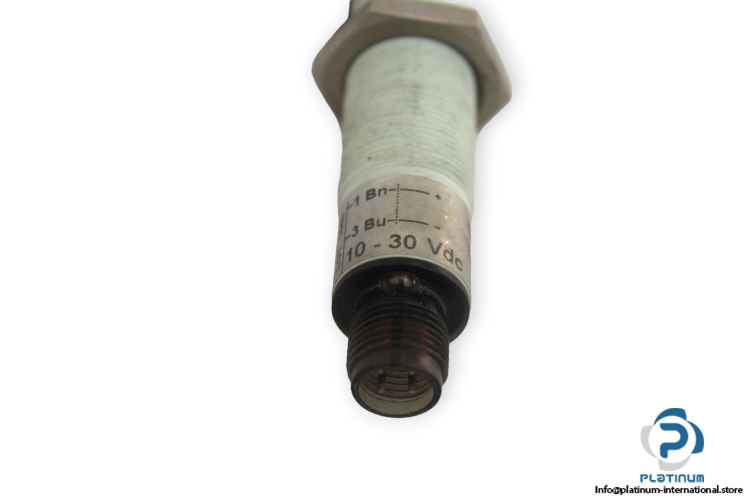

Diell SPE/00-0E Photoelectric Sensor
Manufacture: Diell
Type: Photoelectric Sensor
Model: SPE/00-0E
Optic: Right Angle
Nominal Sensing Distance: 8 m
Differential Travel: ≤ 10 %
Repeatability: 5 %
Ripple: ≤ 10 %
Switching Frequency: 25 Hz
Power on Delay: 200 ms
Operating Voltage: 10 … 30 VDC
Current Consumption: 15 mA
load Current: 100 mA
Protection Class: IP67
Indicators: Red LED
Emission: Infrared (880nm)
Operating Temperature: -25 … 70°C
Connection: 4-pin / M12
Housing: PBT
Mounting: M18
Length: 87 mm
