Diottalevi 32000 50/75 ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
DIOTTALEVI 32000 50/75 ISO Cylinder is designed for precision pneumatic applications. With a 50 mm bore diameter and a 75 mm stroke length, it ensures smooth motion control and durability. Featuring a square frame and a male piston rod end, this cylinder is ideal for industrial automation and high-pressure environments.1/43200050/7550mm75mmActuatorAirauAutomationboreCompressedconnectionControlCylinderDiottalevidouble-actingEndGhigh-performanceIndustrialISOmaleMotionPistonPneumaticRODSquareStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

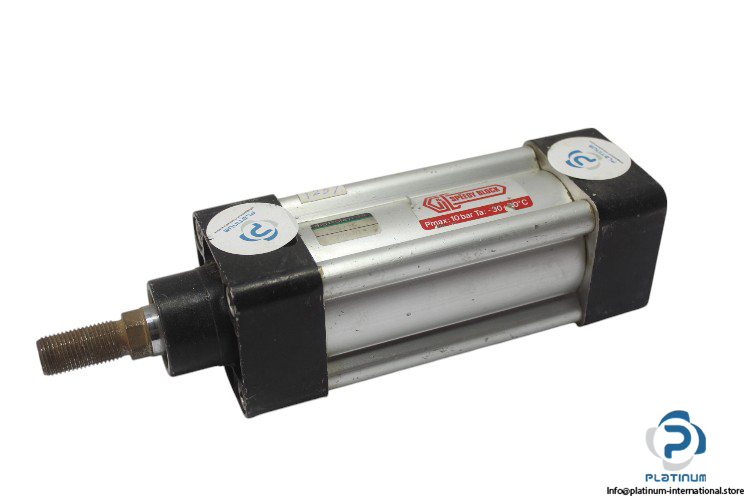

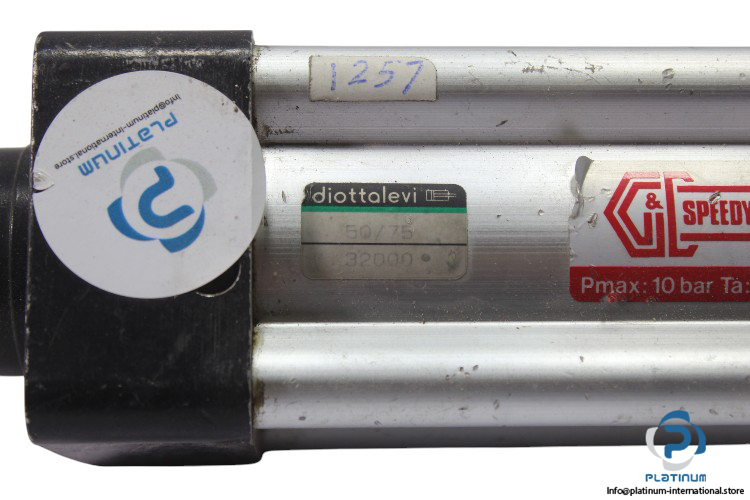

DIOTTALEVI 32000 50/75 ISO Cylinder
The DIOTTALEVI 320005075 ISO Cylinder is a high-quality pneumatic actuator designed for precision-driven applications. Built to ISO standards, it ensures optimal performance in industrial automation and motion control systems. Featuring a robust square shape and a male piston rod end, this cylinder delivers reliable operation under high-pressure conditions.
Manufacturer: DIOTTALEVI
Type: ISO Cylinder
Model: 32000 50/75
| Media | Compressed Air |
| Bore Diameter | 50 mm |
| Stroke | 75 mm |
| Bore x Stroke | 50 x 75 mm |
| Rod Diameter | 20 mm |
| Frame Dimensions | 65 x 210 mm |
| Pneumatic Connection | G 1/4 |
| Maximum Pressure | 10 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
