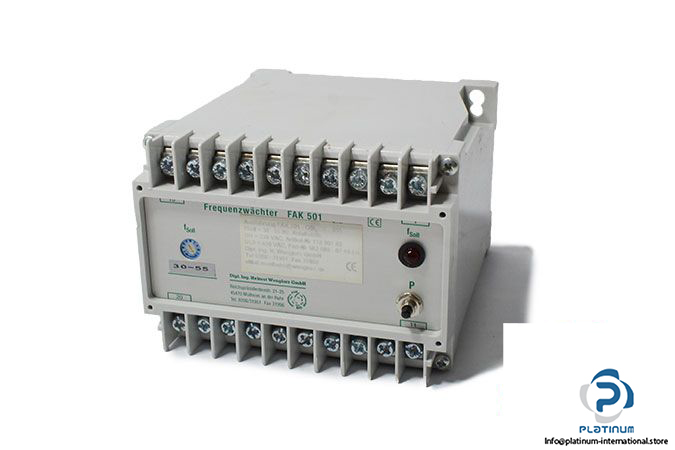

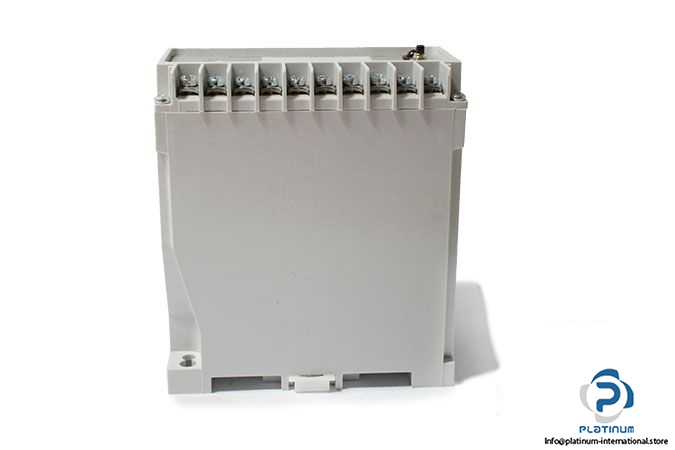

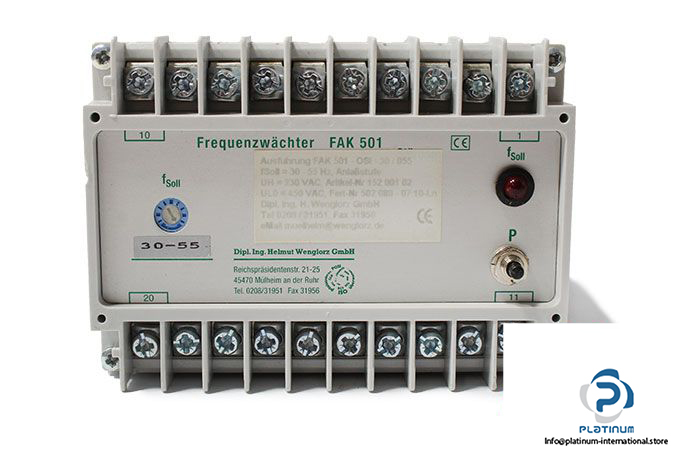

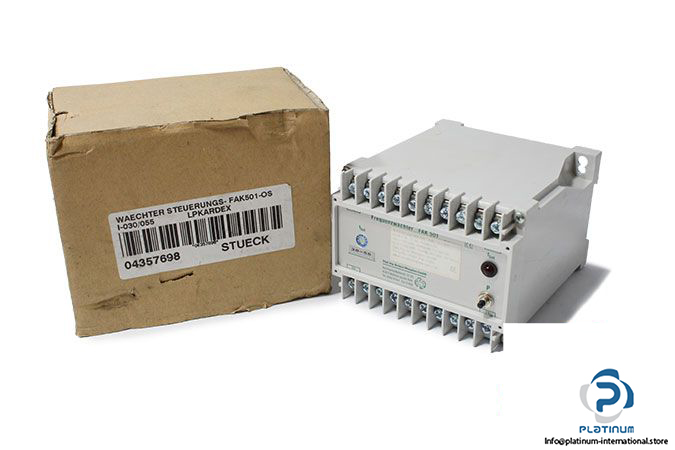

Wenglorz FAK 501-OSI-30/055 Frequency Control Monitor

Manufacturer: Dipl. Ing. Helmut Wenglorz

Type: Frequency Control Monitor without Security Time Step

Model: FAK 501-OSI-30/055

Ident No.: 152 001 02

Supply Voltage: 230 VAC

Frequency: 40 … 60 Hz

Max. Own Consumption: 3.2 VA

Setting Range for the Safety Time: 0.5 … 5.0 s

Nominal Contact Voltage: 250 VAC

Continuous Current: 8 A

Switching Capacity: 1250 VA or 150 W

Protection Class Internals/ Clamping Plate Without Cover: IP40 / IP 10 / IP 20

Ambient Temperature: -5 … +50 ° C

Dimensions: 70 X 100 X 112 mm

Weight: 0.5 Kg
