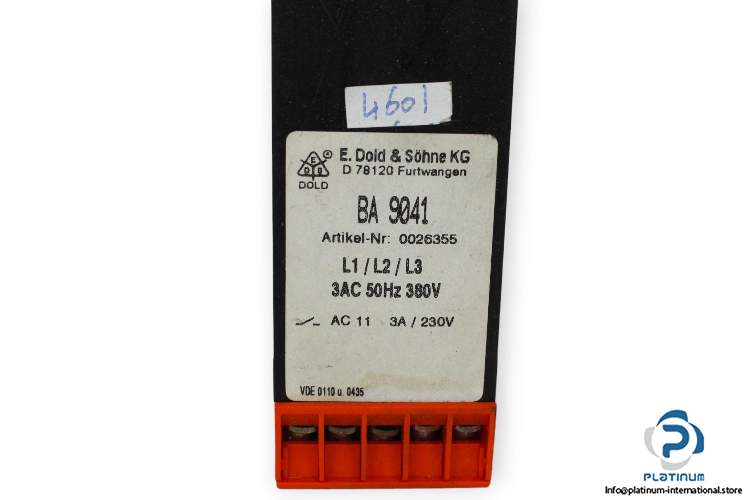

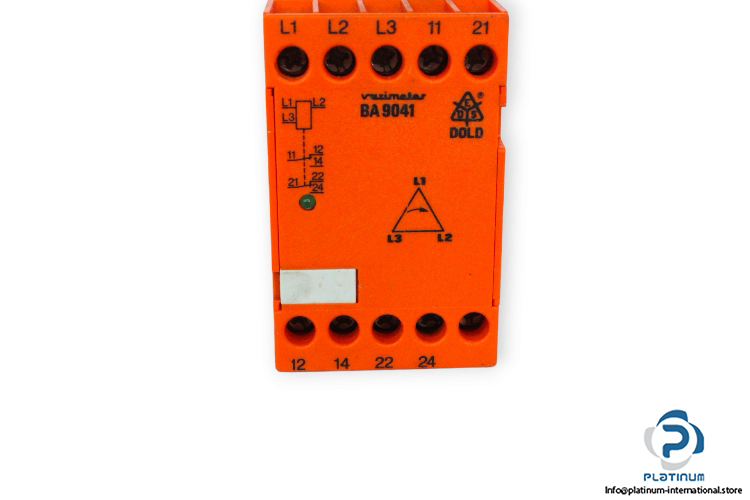

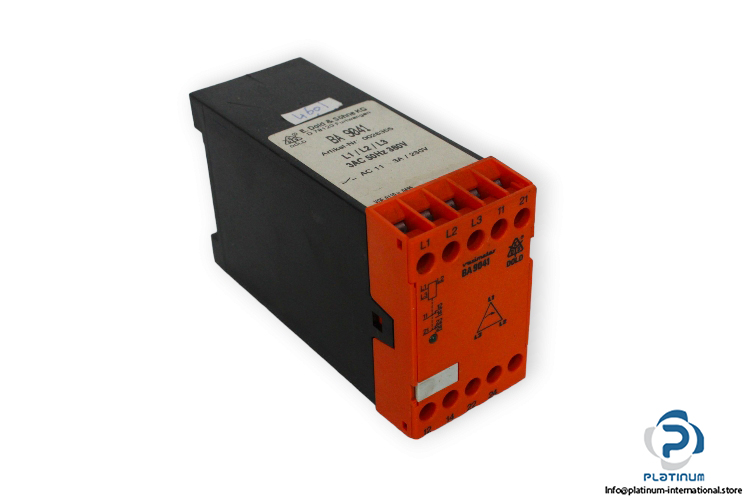

Dold 0026355 Phase-Sequence Relay
Used
In stock1 unitReady to ship
Manufacture:
Dold
Type:
Phase-sequence relay
Model:
BA9041
Art. No.:
0026355
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacture: Dold
Type: Phase-sequence relay
Model: BA9041
Art. No.: 0026355
Nominal voltage UN: 380 V AC/3-phase
Nominal frequency of UN: 50 Hz
Nominal consumption: < 3.5 VA
Contact rating: 2 changes over contact (SPDT)
Switching capacity-AC-11: 230 V AC,3 A
Operation temperature: -20 … + 60°C
Degree of protection: Housing: IP 40, Terminals: IP 20
Housing: Thermoplastic with V0 behavior
Mounting: DIN rail
Dimensions: 45 x 73,2 x 119,8 mm
