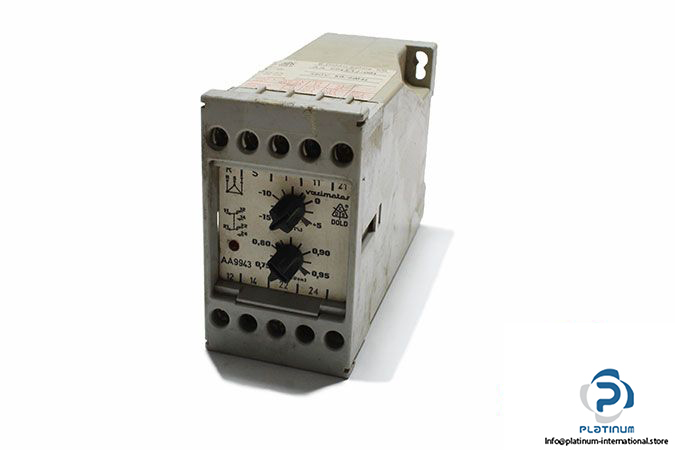

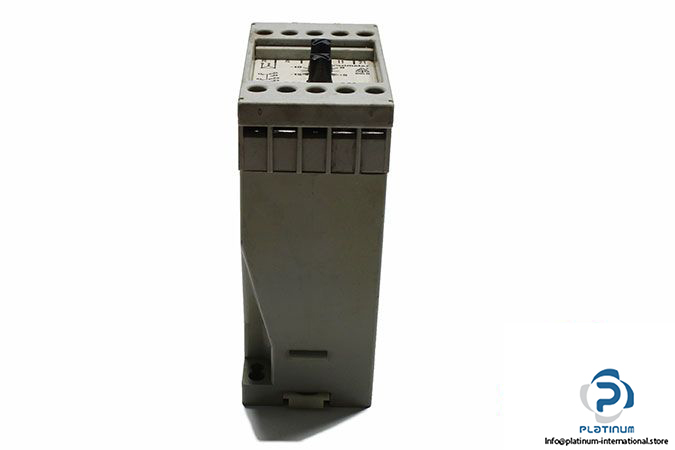

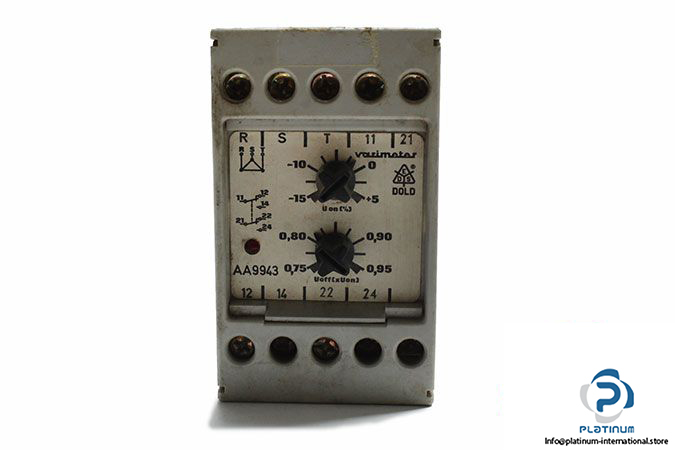

Dold AA 9943.12/001 Undervoltage Relay

Manufacturer: DOLD

Type: Undervoltage Relay

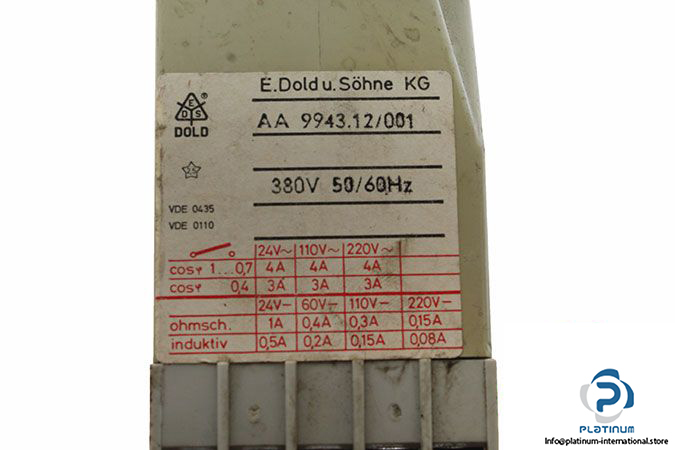

Model: AA 9943.12/001

Application:  Undervoltage detection in 3 phase systems, for industrial and railway applications

Coil Voltage: 380 VAC

Frequency: 50/60 Hz

Switching Capacity:

to AC 15: NO contact: 3 A / AC 230 V ; NC contact: 1 A / AC 230 V

to DC 13: NO contact: 1 A / DC 24 V ; NC contact: 1 A / DC 24 V

Operating Mode: Continuous operation

Temperature Operation Range: – 20 … + 60°C

Degree of protection Housing/ Terminals: IP 40 / IP 20

Output Contacts: 2 changeover contacts

Dimensions: 45 X 77 X 127 mm

Weight: 0.3 Kg
