Dold AA7616.24 Minitimer
Used
In stock2 unitsReady to ship
77,77$
MINITIMER
Dold AA7616.24 minitimer with 220 V AC supply, 0.2 s“60 h time range, 2 NO + 2 NC contacts, IP40/IP20 protection, and thermoplastic housing.0000680220V2NC2NOAA7616.24ACAgNiAutomationContactDoldIndustrialIP20IP40MinitimerRelaythermoplasticTimeTimer
New
Available on request 99,99$
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

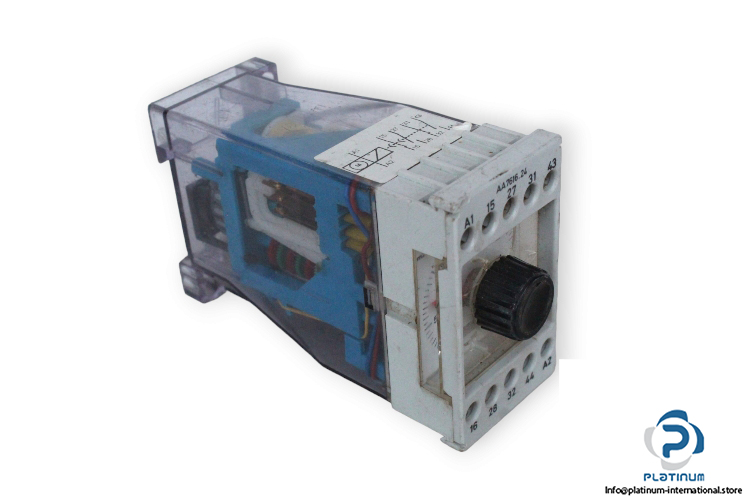

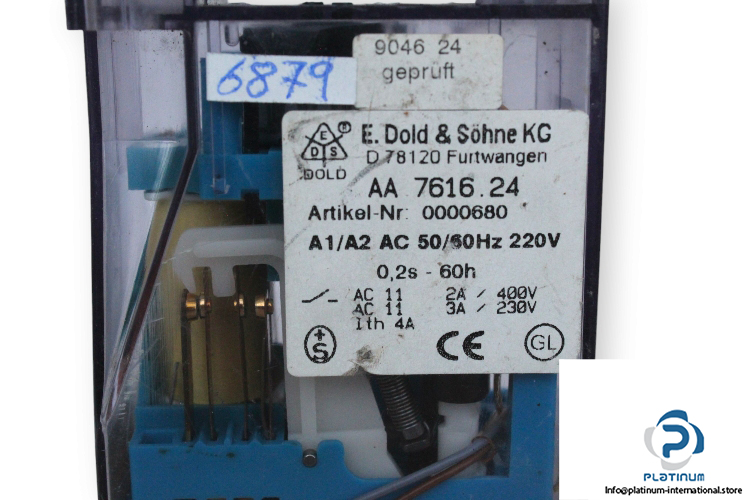

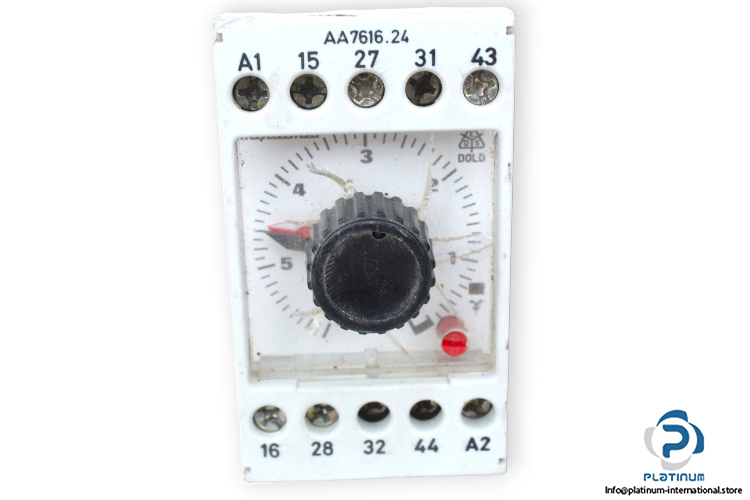

Dold AA7616.24 Minitimer
The Dold AA7616.24 is a precise and versatile industrial minitimer designed for reliable time control in automation systems. It offers wide time ranges, durable AgNi contacts, and robust thermoplastic housing, ensuring long service life in demanding electrical environments.
Manufacturer: Dold
Type: Minitimer
Model: AA7616.24
Art No.: 0000680
| Supply Voltage | 220 V AC |
| Frequency | 50 / 60 Hz |
| Time Range | 0.2 s / 60 h |
| Contact Configuration | 2 Normally Open, 2 Normally Close |
| Contact Voltage | 230 / 400 V AC |
| Contact Current | 2 / 3 A |
| Thermal Current | 4 A |
| Contact Material | AgNi |
| Housing | Thermoplast with V0-behaviour |
| Width | 45 mm |
| Torque | 0.8 Nm |
| Operating Temperature | ˆ’20 / 55 °C |
| Degree of Protection | Housing IP40, Terminal IP20 |
| Dimensions | 45 × 77 × 127 mm |
