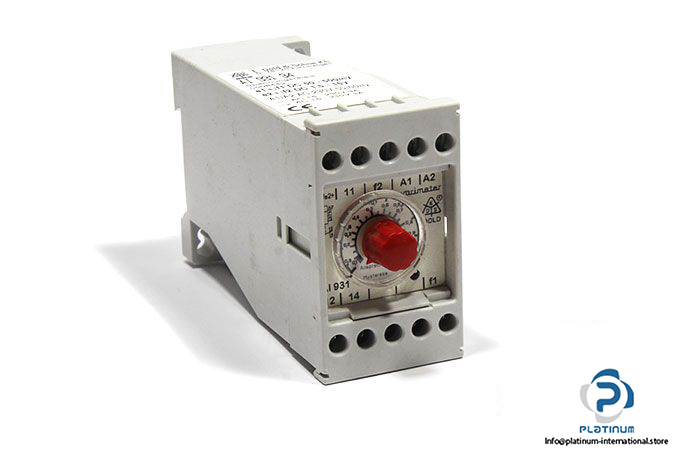

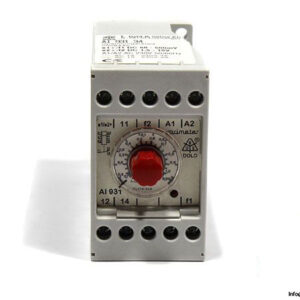

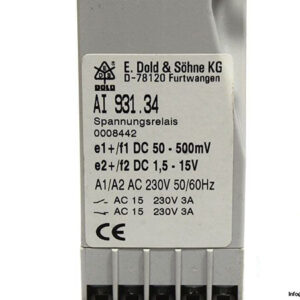

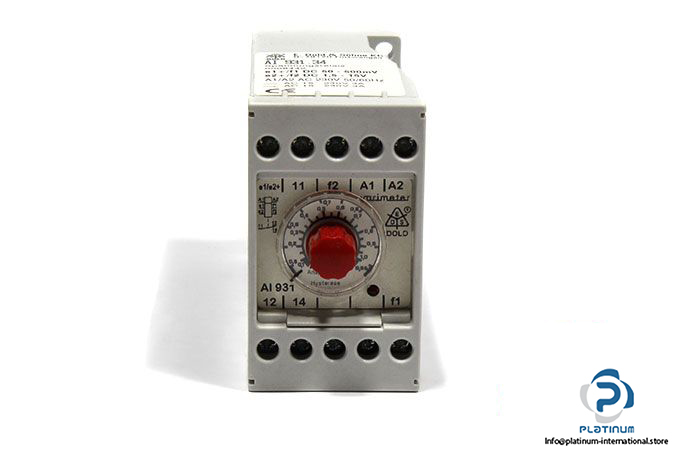

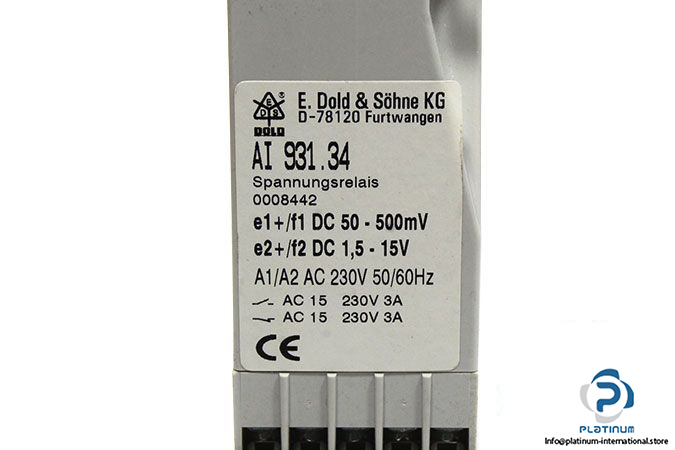

Dold AI 931.34 230 VAC Time Relay

Manufacturer: DOLD

Type: Time Relay

Model: AI931.34

Application: For Monitoring the Power Consumption of Electrical Consumers

Coil Voltage: 230 V AC

Frequency: 50 … 60 Hz

Response Value: 0.1 … 1

Waste Value: 0.5 … 0.95

Contact Rating:

• AC 15 380 V, 2 A
• AC 15 220 V, 3 A

Measuring Range:

• e1+/f1 DC: 50 … 500 mV
• e2+/f2 DC: 5 … 15 V

Protection Class Housing/Terminal: IP 40/ IP 20

Temperature Range: – 20 … + 60 °C

Dimensions: 45 X 116 X 77 mm

Weight: 0.32 Kg
