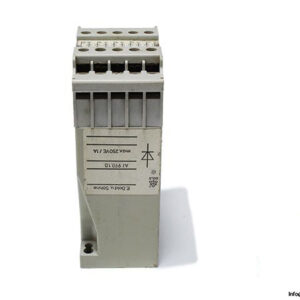

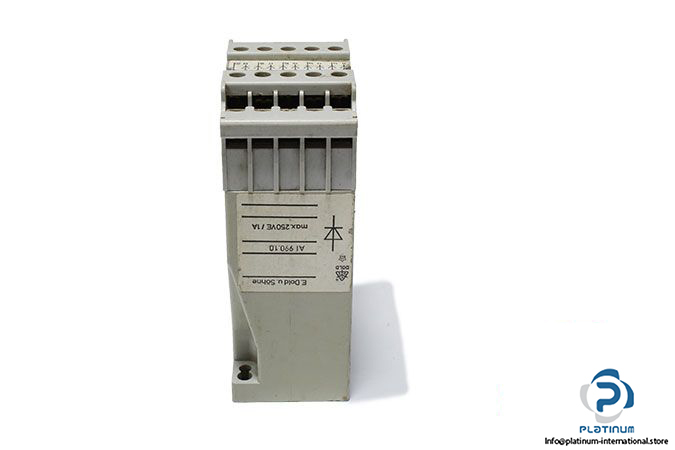

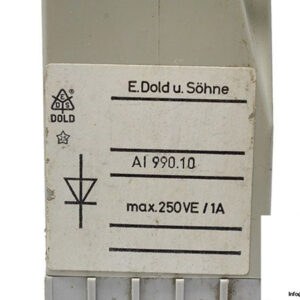

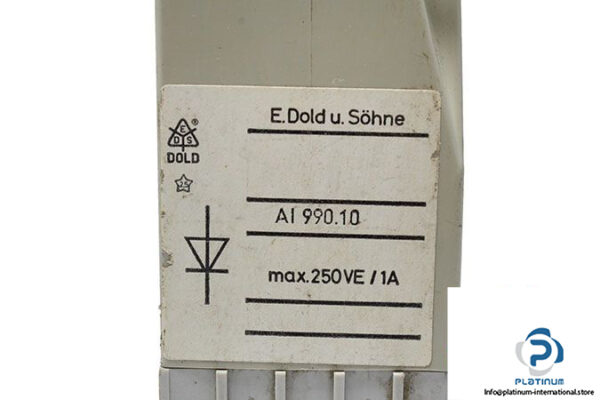

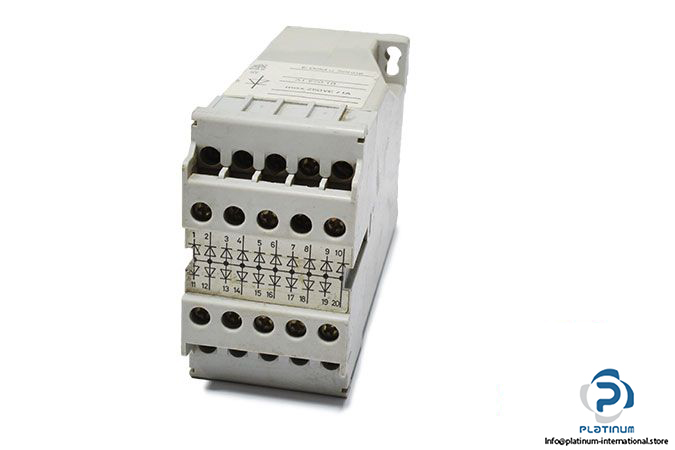

Dold AI 990.10 Lamp Tester

Manufacturer: DOLD

Type: Lamp Tester

Model: AI 990.10

Artical No.: 0002065

Load Per:

Signal Lamp: 1 A

Periodic Peak Reverse Voltage: 1000 V

Peak Impulse Voltage: 1200 V

Pulse Voltage Load:

Disspiation: 1.6 kW at 10µs

Impulse Current Limit Value: 50 A at 10 ms

Periodic Peak Voltage: 1100 V

Wire Connection: 2 x 2.5 mm² solid or 2 x 1.5 mm² stranded wire with sleeve

Nominal Operating Mode: continuous operation

Degree of Protection Housing / Terminals: IP 40 / IP 20

Temperature Range: – 20 … + 60°C

Dimensions: 45 X 77 X 127 mm

Weight: 0.15 Kg
