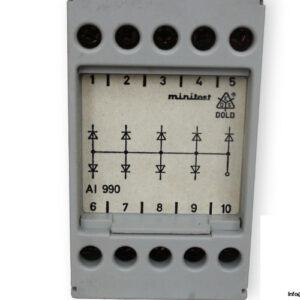

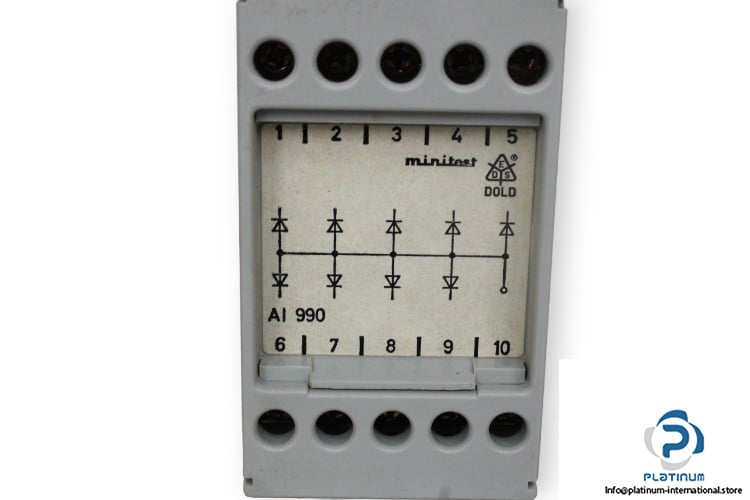

Dold AI 990 Lamp Tester

Manufacturer: Dold

Type: Lamp Tester

Model: AI 990

Part No: 02060

Voltage: 250 V

Signal Lamp: 1 A

Periodic Peak Reverse Voltage: 1000 V

Peak Impulse Voltage: 1200 V

Dissipation: 1.6 kW at 10µs

Impulse Current Limit Value: 50 A at 10 ms

Periodic Peak Voltage: 1 100 V

Variants: max. 9 signal lamps with common anode

Wire Connection: 2 x 2.5 mm2 solid or 2 x 1.5 mm2 stranded wire with sleeve

Wire Fixing: Flat terminals with self-lifting clamping

Nominal Operating Mode: continuous operation

Temperature Range: – 20 … + 60 °C

Degree of Protection Housing / Terminals: IP 40 / IP 20

Dimensions: 45 x 77 x 127 mm
