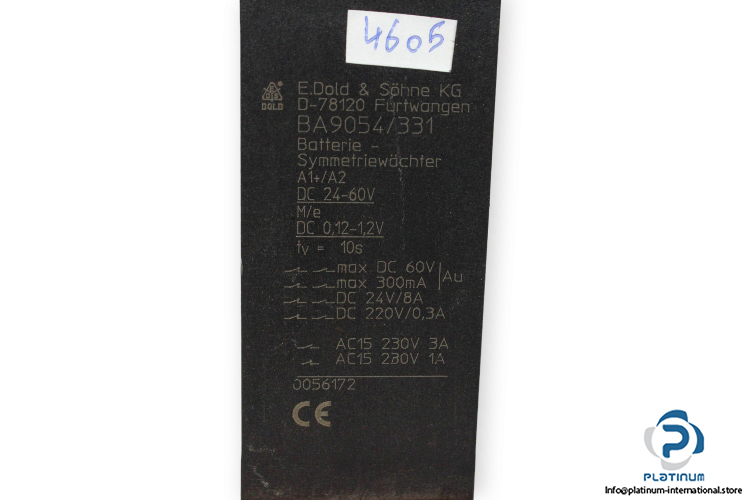

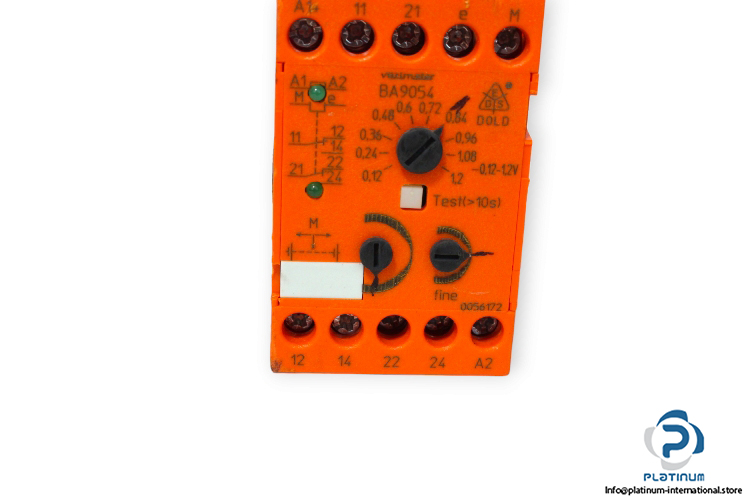

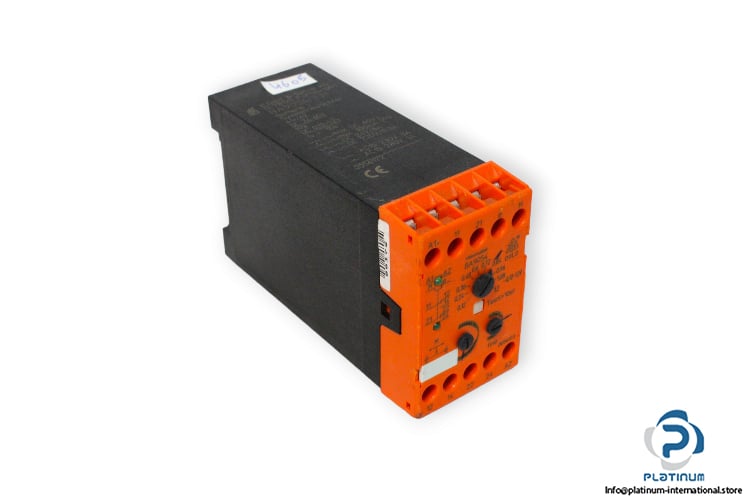

Dold BA9054/331 Battery Symmetry Monitor
Manufacture: Dold
Type: Battery symmetry monitor
Model: BA9054/331
Art. No.: 0056172
Nominal voltage UN: 24 … 60 V DC
Nominal frequency of UN: 50 / 60 Hz
Nominal consumption: Approx. 2.5 VA
Contact rating: 2 changes over contact (SPDT)
Switching capacity
AC-15: 230 V AC,3 A
AC-15: 230 V AC,1 A
Voltage Measuring range: 0.12 … 1.2 V DC
Operation temperature: -40 … + 60°C
Time delay tv: 10s
Degree of protection: Housing: IP 40, Terminals: IP 20
Housing: Thermoplastic with V0 behavior
Mounting: DIN rail
Dimensions: 45 x 75 x 120 mm
