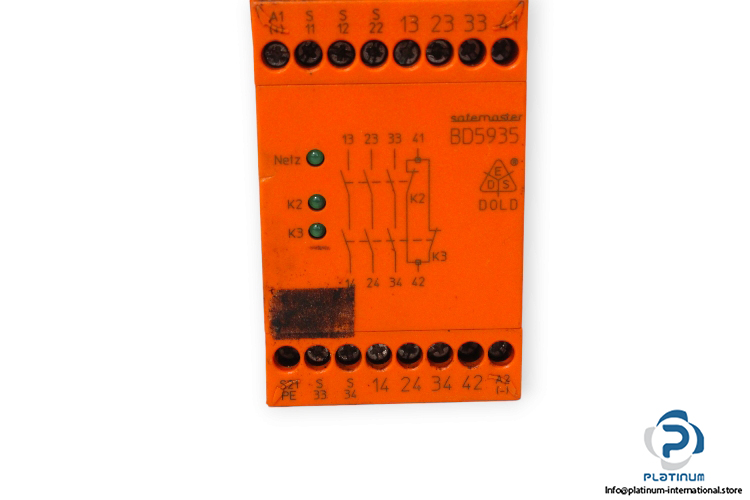

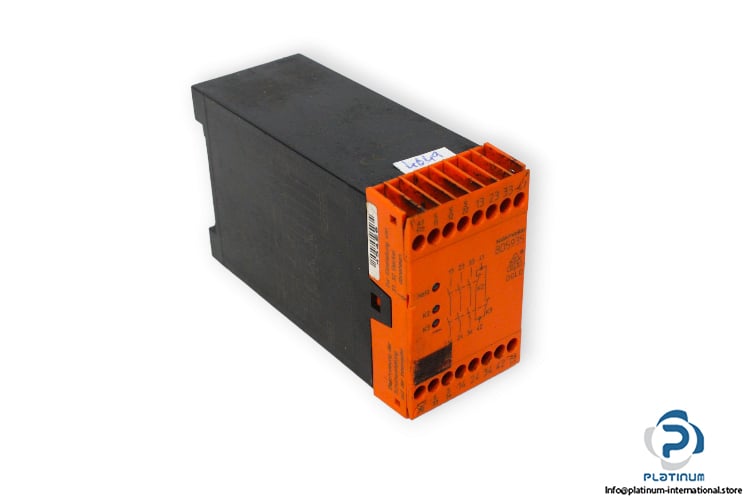

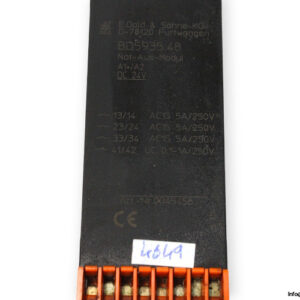

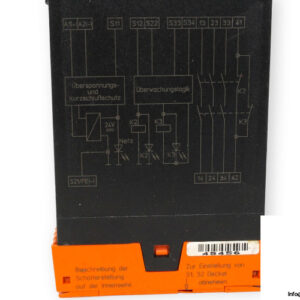

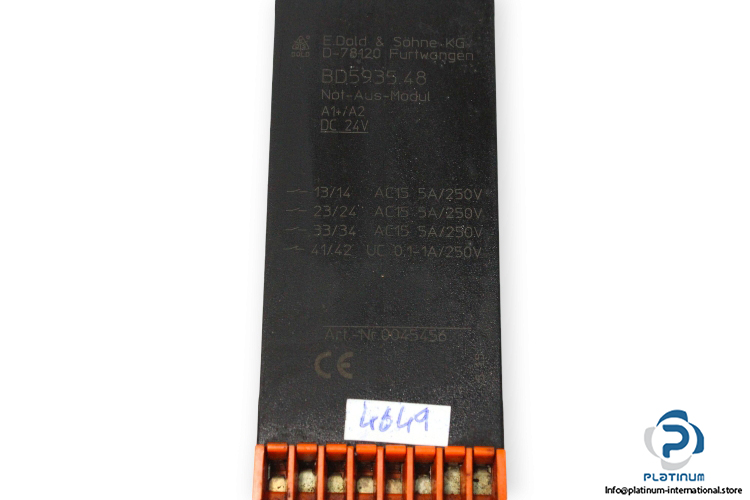

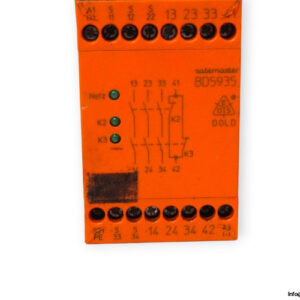

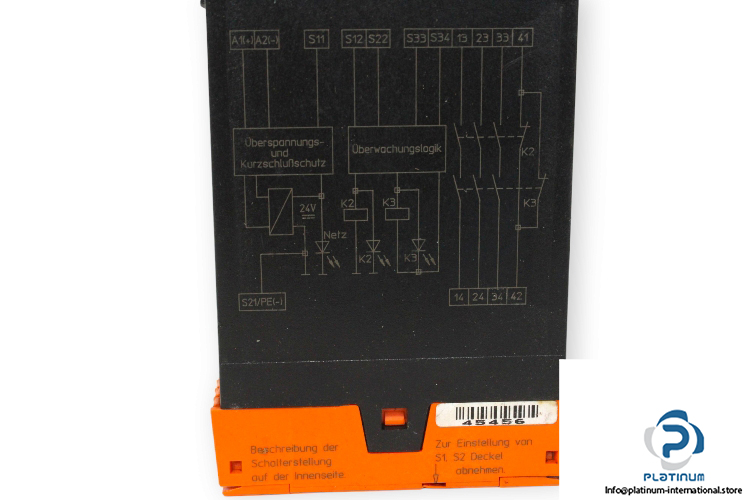

Dold BD5935.48 Emergency Stop Module
Manufacture: Dold
Type: Emergency Stop Module
Model: BD5935.48
Art. No.: 0045456
Nominal voltage UN: 24 V DC
Nominal consumption: 2 W
Contact rating: 3 NO,1 NC
Switching capacity
AC-15: 250 V AC,5 A
AC/DC: 0.1 … 1 A,250 V
Operation temperature: -15 … 55°C
Degree of protection: Housing: IP 40, Terminals: IP 20
Housing: Thermoplastic with V0 behavior
Mounting: DIN rail
Dimensions: 45 x 74 x 121 mm
