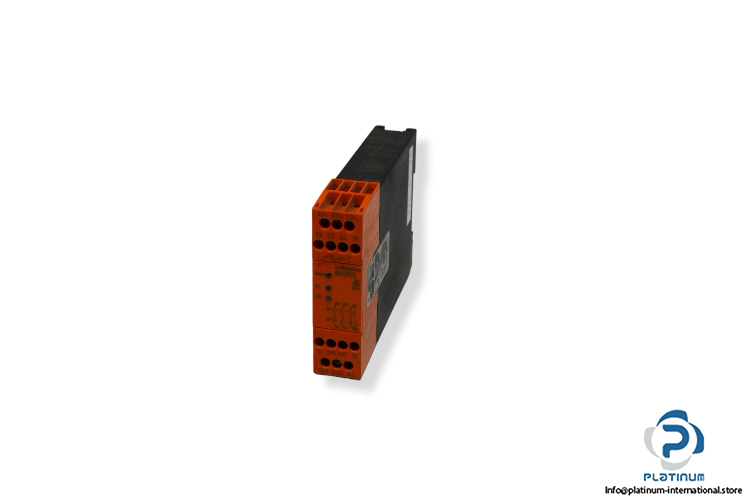

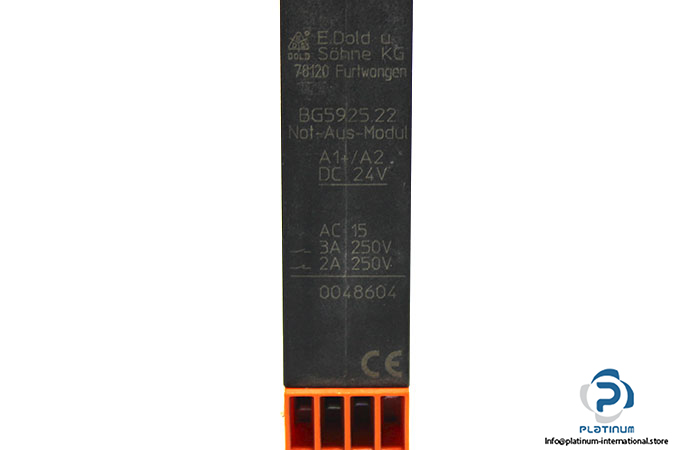

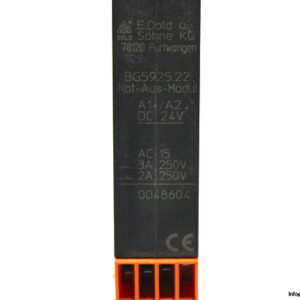

Dold BG5925.22 Emergency Stop Module

Manufacturer: Dold

Type: Emergency stop module

Model: BG5925.22

Nominal Voltage: 24 V DC

Nominal consumption: 2.5 VA

Number of channels: 2 Channels

Contacts: 2 Normally Open, 1 Normally closed

Contacts voltage and current: NO: 250 VAC / 3A, NC: 250 VAC / 2A

Operating mode: Continuous operation

Operating Temperature: – 15 … + 55 °C

Degree of Protection: Housing: IP 40, Terminals: IP 20

Housing: Thermoplastic

Mounting: DIN-rail
