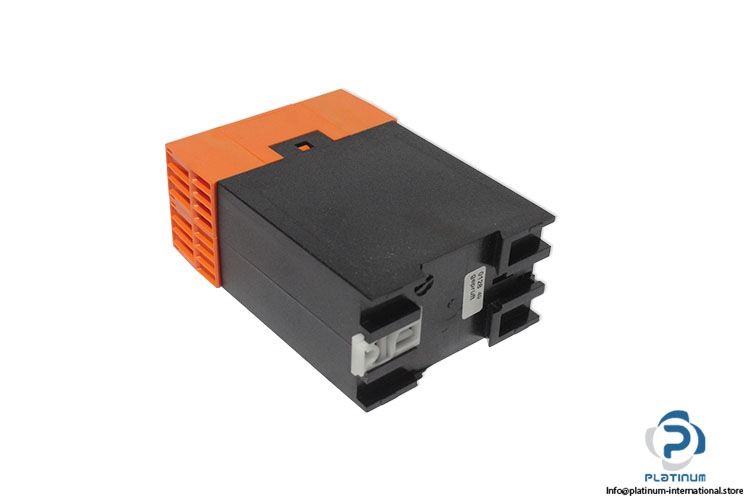

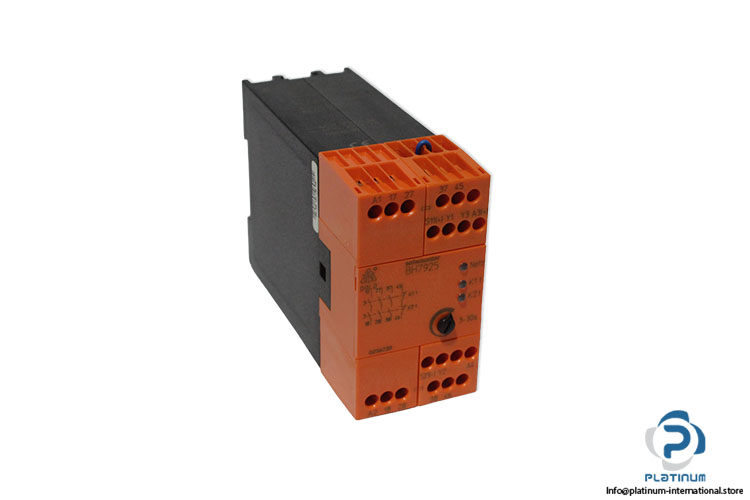

Dold BH7925.96/002 Delay Module
New
In stock1 unitReady to ship
Delay Module DOLD industrial delay module with 230 V AC and 24 V AC/DC control voltage, 10-second maximum time delay, and multiple output contacts for automation and control applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

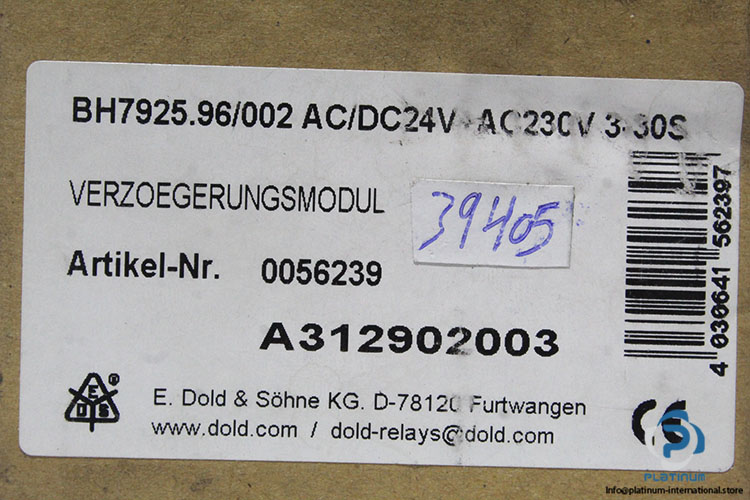

| Code | 0056239, A312902003 |

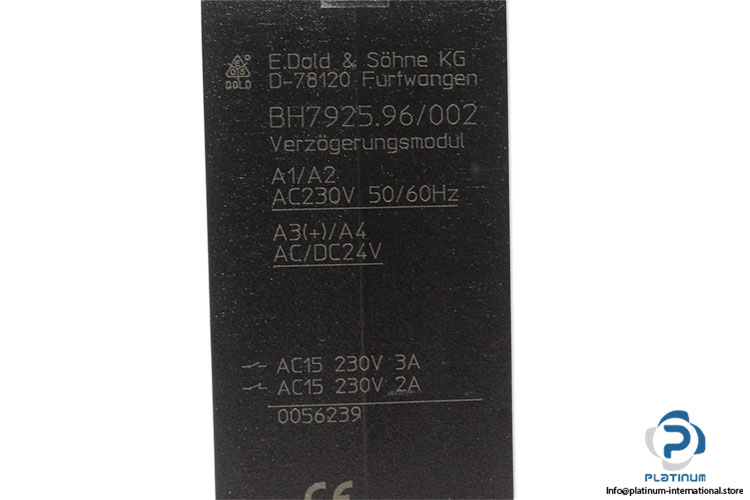

| Nominal / Control Voltage | A1 / A2: 230V AC (50/60 Hz), A3(+) /A4: 24V AC/DC |
| Contact Rating | (AC-15: 230V, 3A/ AC-15: 230V, 2A) |
| Connection | Pluggable screw terminals |

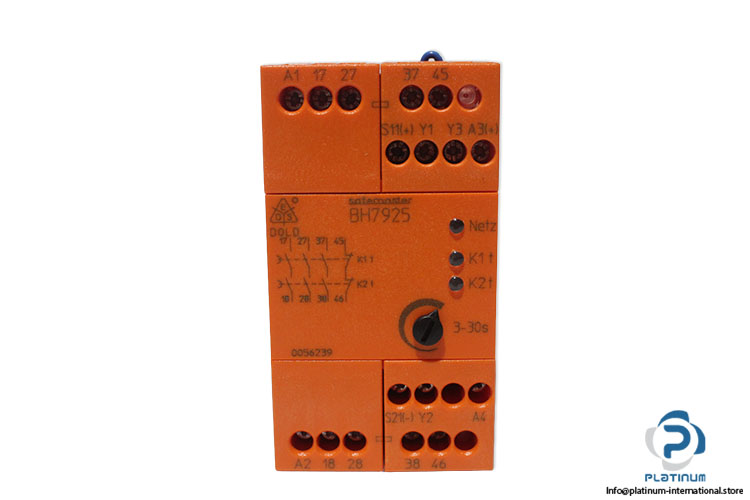

| Output contacts | 1 NC contact, 3 NO contacts |
| Thermal current max. | 5 A |
| Thermischer Strom Ith max. | 5 |
| Time delay max. | 10 s |
| Width | 45 mm |
| Condition | New |
| Stock key | CON003 |
| SKU | 1093833 |
| Weight | 0,44 |
