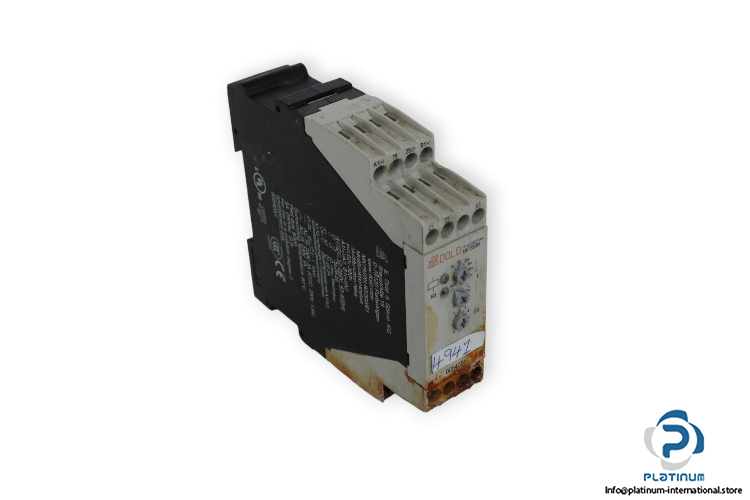

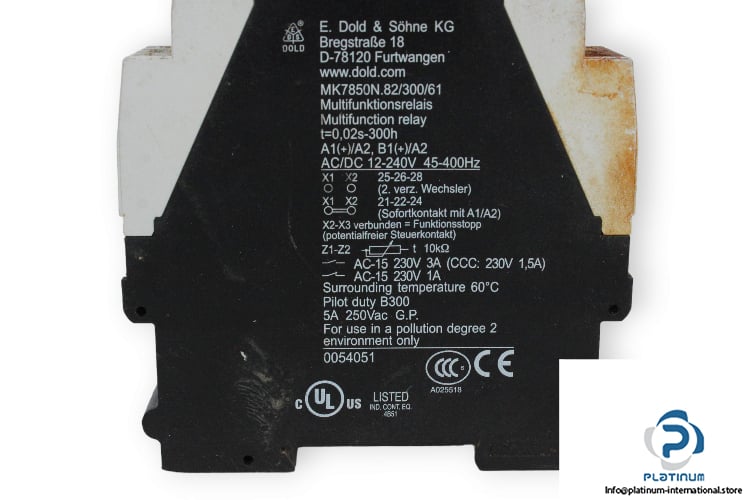

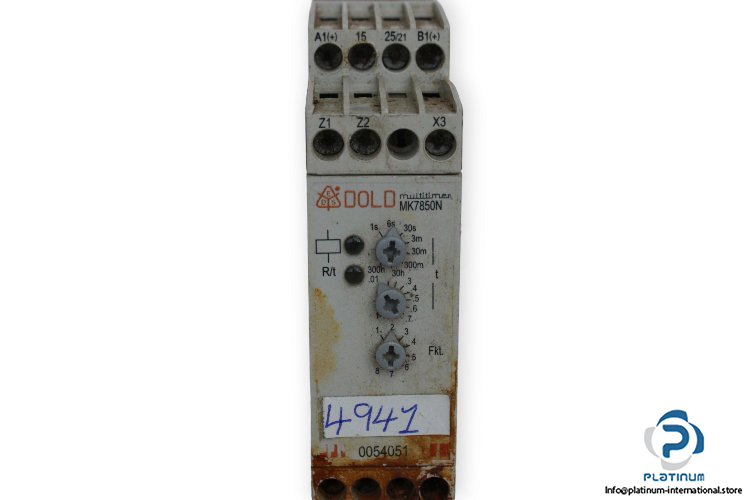

Dold MK 7850N.82/300/61 Multifunction Timer Relay

Manufacture: Dold
Type: Multifunction Timer Relay
Model: MK 7850N.8230061
Art. No.: 0054051

Supply voltage: 12 … 240 V AC /DC
Frequency: 45 … 400 Hz
Output: 2 changes over contact (SPDT)

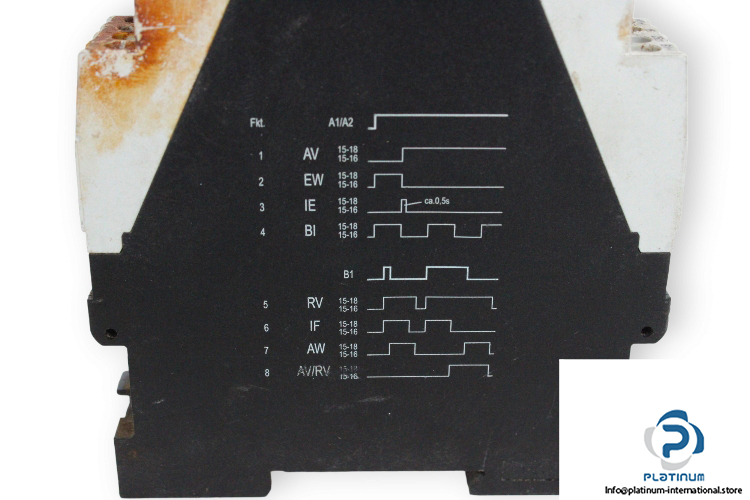

Time ranges: 0.02s … 300h (8-time ranges)
Switching capacity
AC-15: 230 V AC,3 A
AC-15: 230 V AC,1 A
Operating temperature range: -40 … +60°C
Degree of protection: Housing: IP 40, Terminals: IP 20
Housing: Thermoplastic with V0 behavior
Mounting: DIN rail
Width: 22.5 mm
