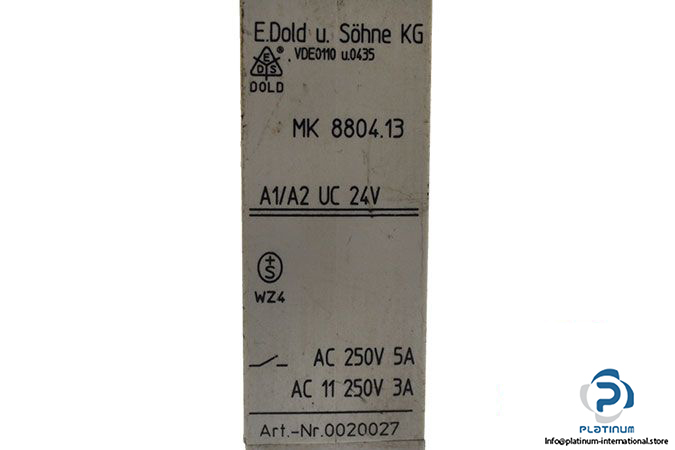

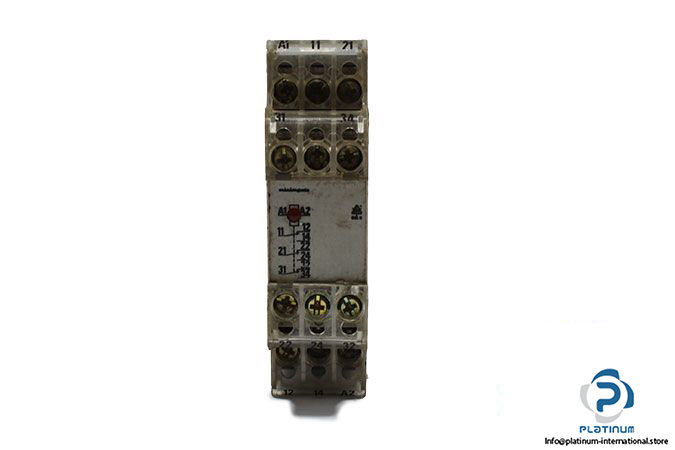

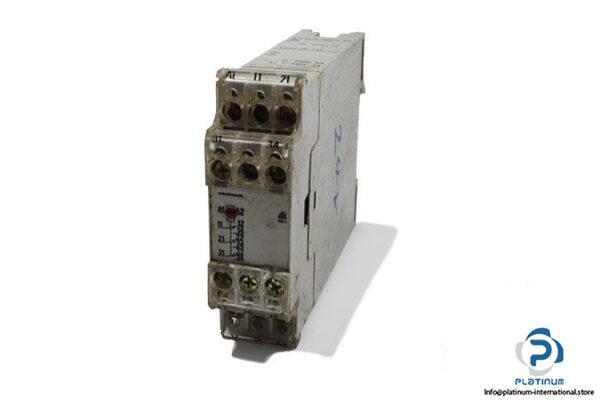

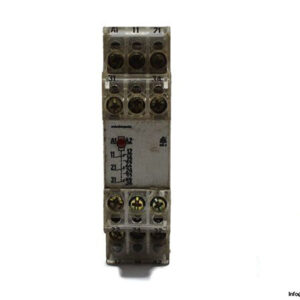

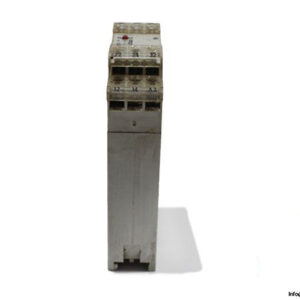

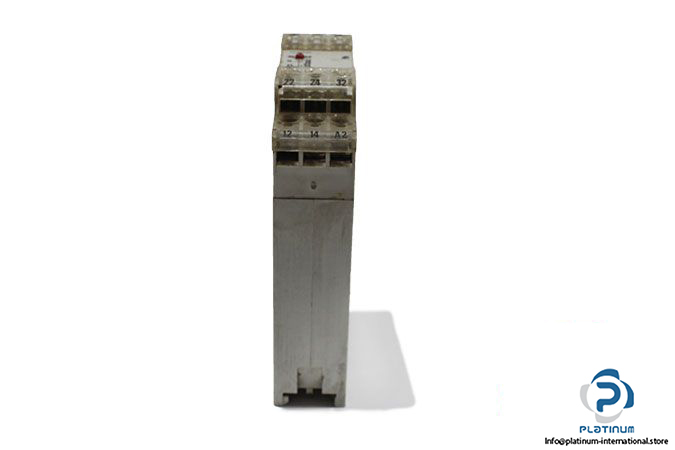

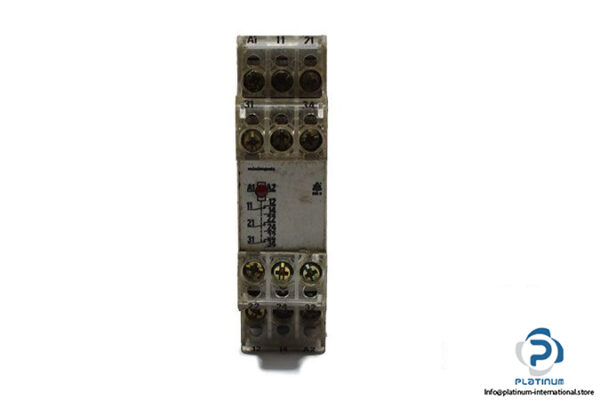

Dold MK 8804.13 Interface Relay

Manufacturer: DOLD

Type: Interface Relay

Model: MK 8804.13

Art No.: 0020027

Nominal Voltage: 24 VAC

Contact Rating: 250 NAV, 5 A ; AC 11: 250 VAC, 3 A

Frequency: 50/60 Hz

Output Contacts: 3 changeover contacts

Release Time: ≤ 15 ms

Thermal Current: 5 A

Temperature Range: – 20 … + 60 °C

Degree of Protection Housing/ Terminals: IP 40 / IP 20

Dimensions: 22.5 X 82 X 99 mm

Weight: 0.14 Kg
