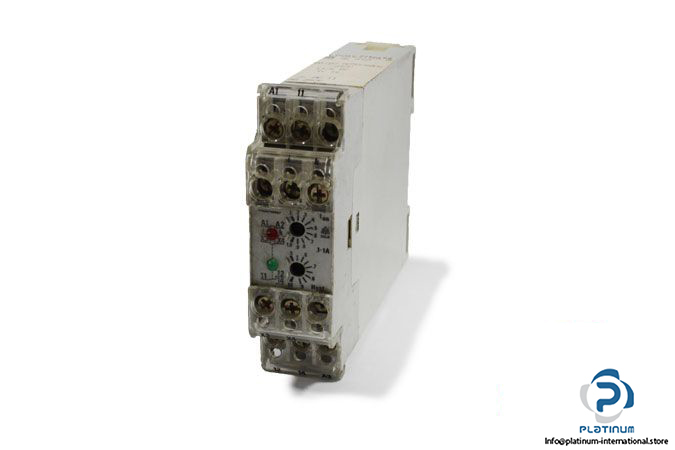

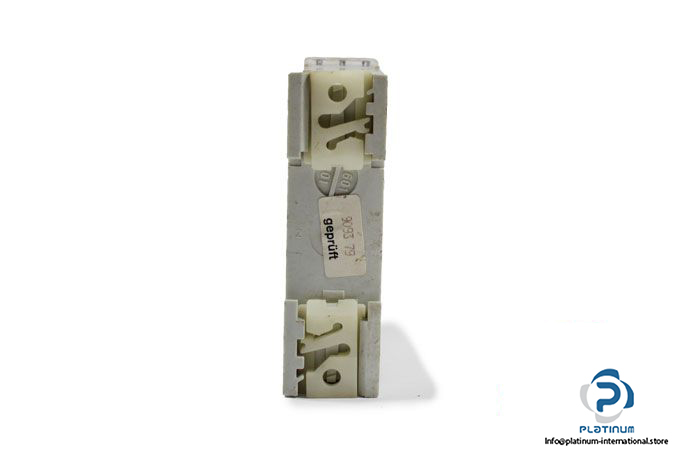

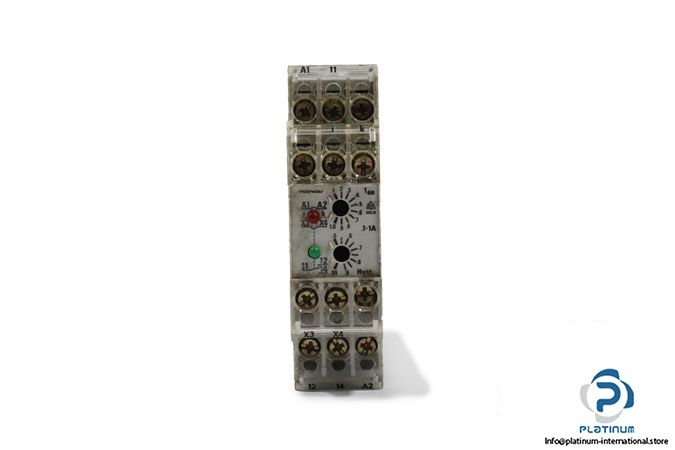

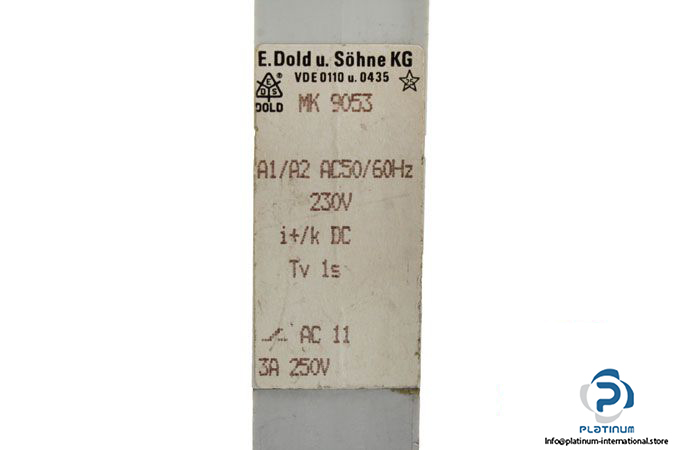

Dold MK 9053 Current Relay Varimeter

Manufacturer: DOLD

Type: Current Relay Varimeter

Model: MK 9053

Article Number: 0026784

Applications: Monitoring current in AC or DC systems

Auxiliary Voltage: 230 VAC

Nominal Frequency: 50 / 60 Hz

Measuring Range: 0.5 … 5 A

Thermal Current: 5 A

Nominal Consumption: approx. 2 VA

Contacts: 1 changeover contact

Time Delay: 1 s

Dimensions: 22.5 X 82 X 102 mm

Operating Mode: Continuous operation

Mechanical Life: 30 x 106 switching cycles

Electrical Life: 10⁵ switching cycles

Temperature Range: -20 … +50°C

Degree of Protection Housing / Terminals: IP 40 / IP 20

Weight: 0.16 Kg
