Donghua 06B-1 Simplex Roller Chain

Manufacturer: DONGHUA

Type: Simplex Roller Chain

Model: 06B-1

Art No.: DIN 06B-1SBSR X 5M

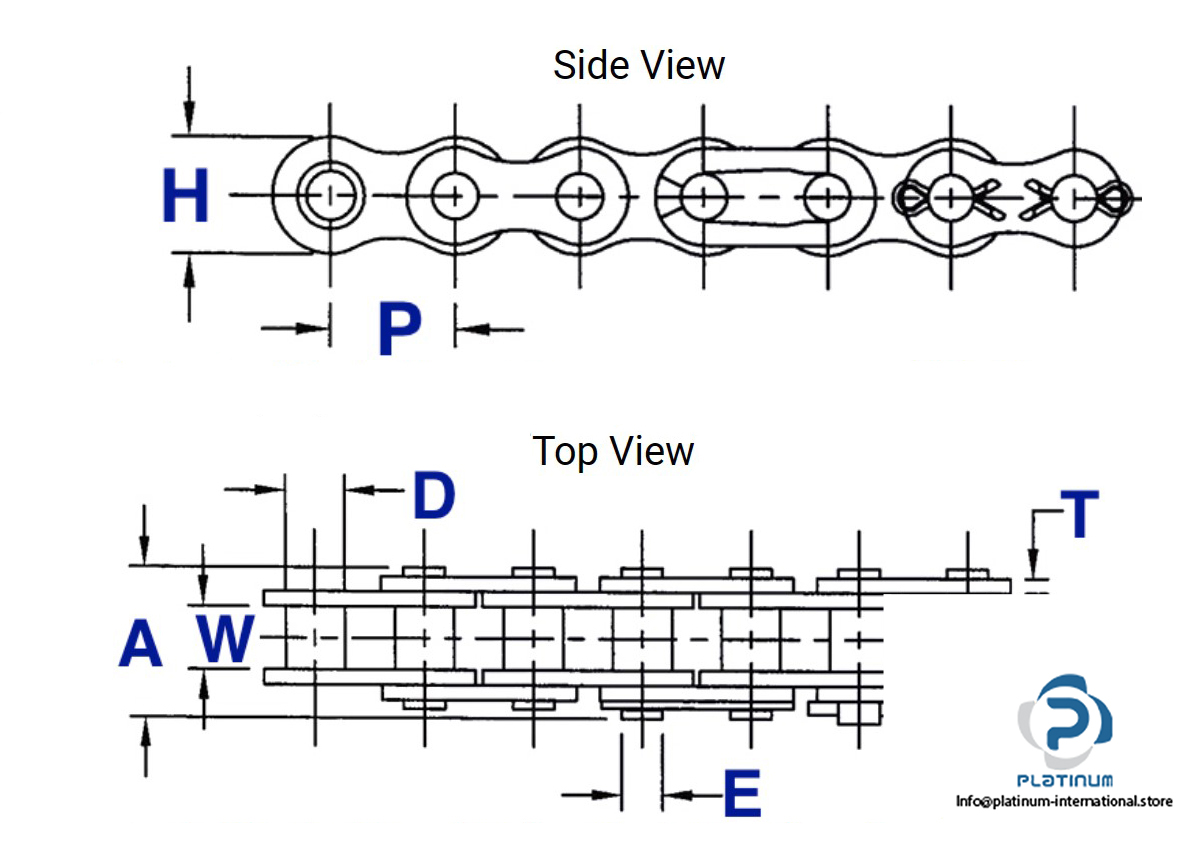

DIN/ISO 606 Chain no. 06B-1

Pitch P 9.525 mm

Roller diameter d1: 6.35 mm

Width between inner plates b1: 5.72 mm

Pin diameter d2 max/L max: 3.28/13.15 mm

Pin length Lc max: 14.1 mm

Plate thickness T: 1.3mm

Ultimate tensile strength Q min: 9.0/2045 kN/lbf

Average tensile strength Q0: 10.4 kN

Weight per meter q: N/A
