Manufacturer: DONGHUA

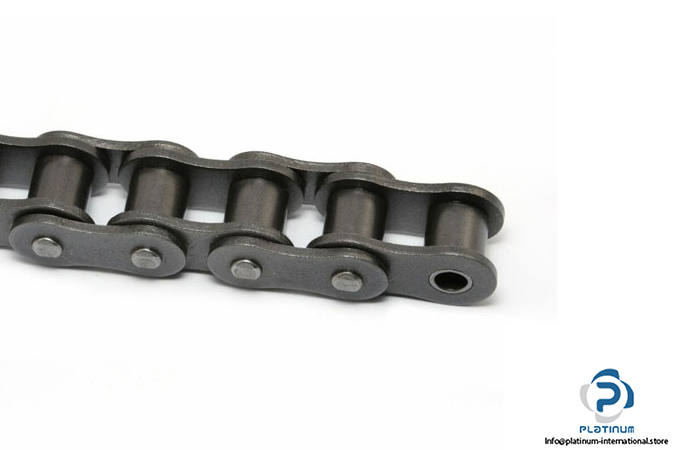

Type: Single-Strand Roller Chain
Model: 16B-1

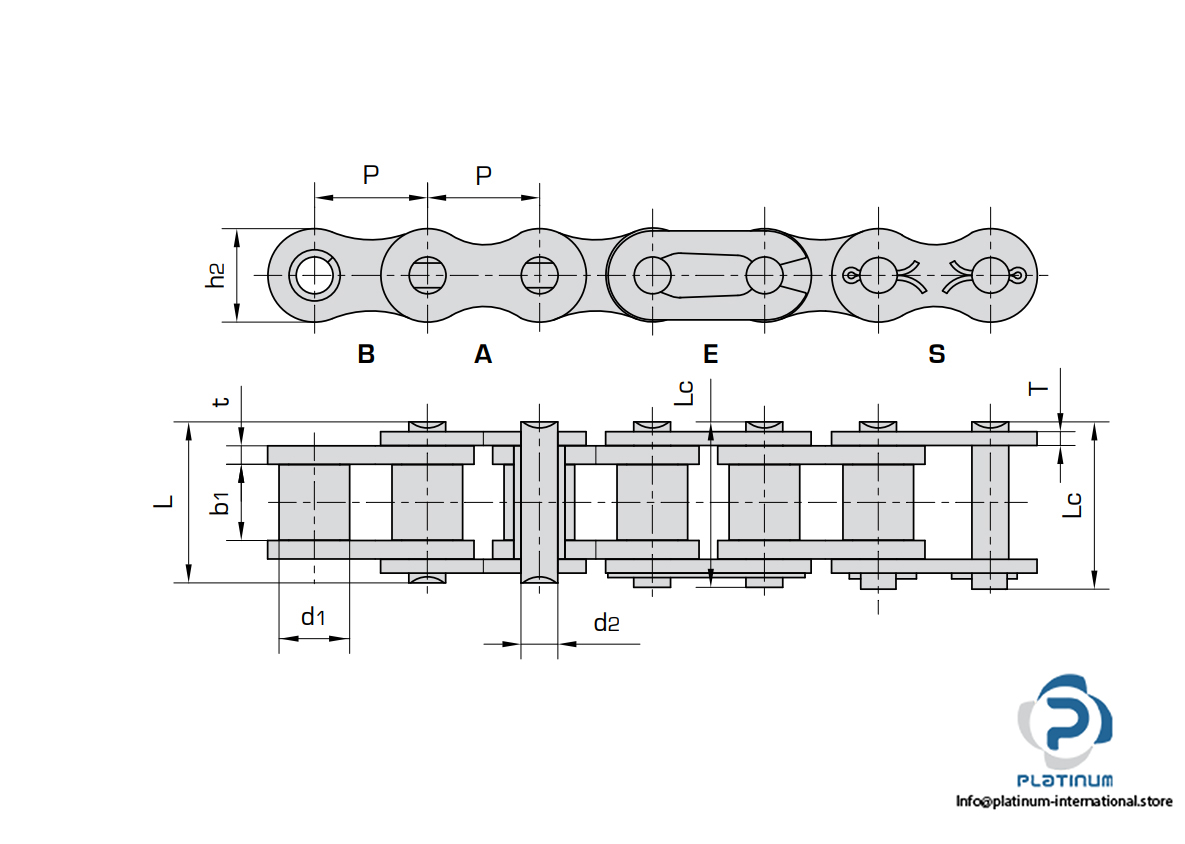

DIN/ISO 606
Chain no.
16B-1
PitchP: 25.4 mm
Roller diameter d1: 15.88 mm
Width between inner plates b1: 17.02 mm
Pin diameter d2 max/L max: 8.28/36.10 mm
Pin length Lc max: 37.4 mm
Plate thickness T: 4.15/3.1mm
Ultimate tensile strength Q min: 60.0/13636 kN/lbf
Average tensile strength Q0: 77.1 kN
Weight per meter q: 2.71 kg/m
