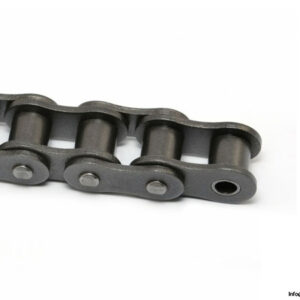

Donghua 32B-1 Single-Strand Roller Chain

Manufacturer: DONGHUA
Type: Single-Strand Roller Chain
Model: 32B-1

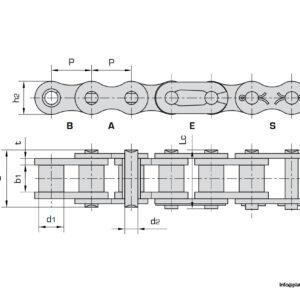

DIN/ISO 606
Chain no. 32B-1
PitchP: 50.8 mm
Roller diameter d1: 29.21 mm
Width between inner plates b1: 30.99 mm
Pin diameter d2 max/L max: 17.81/66.00 mm
Pin length Lc max: 71 mm
Plate thickness T: 7.00/6.0mm
Ultimate tensile strength Q min: 250.0/56818 kN/lbf
Average tensile strength Q0: 277.5 kN
Weight per meter q: 10.25 kg/m
