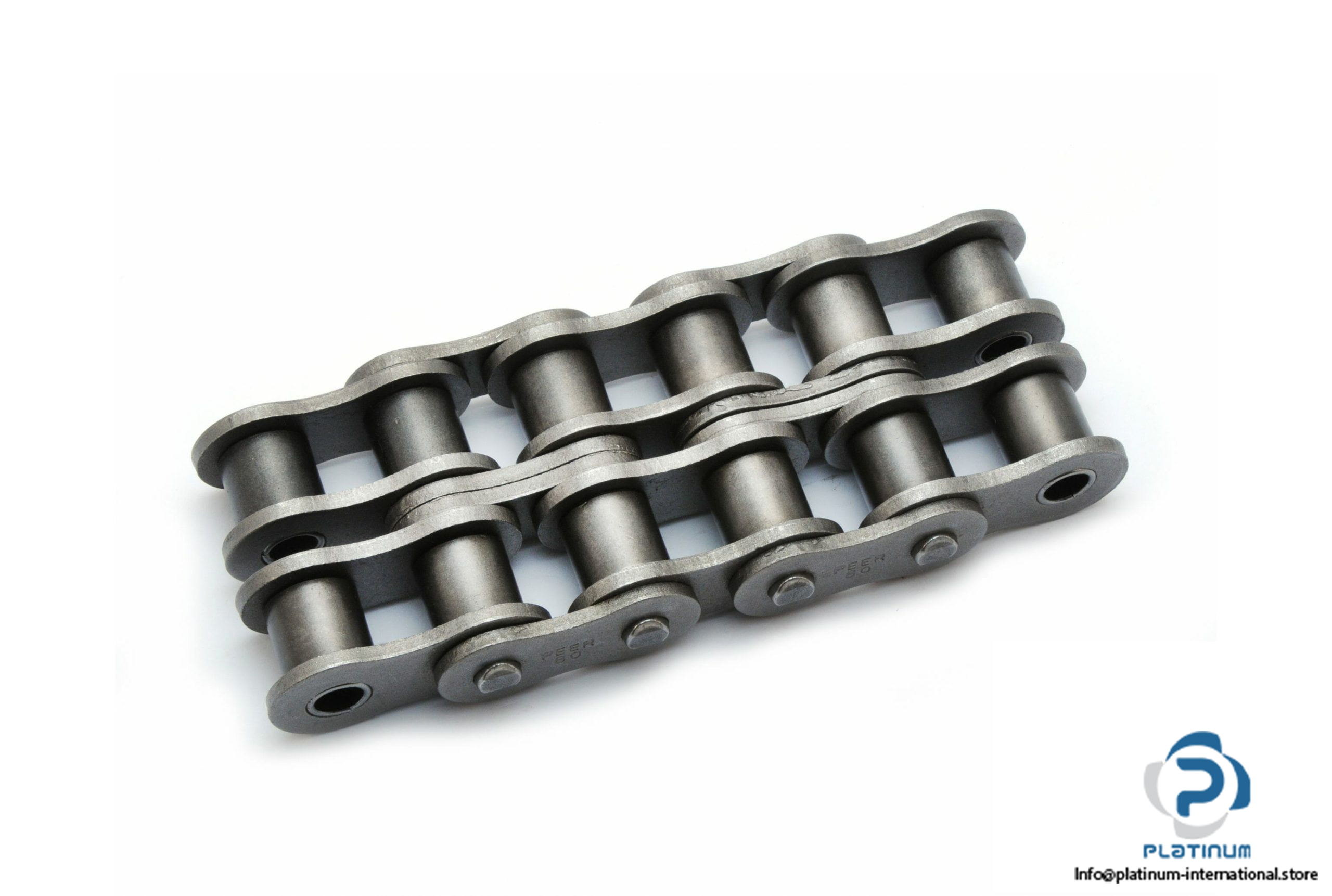

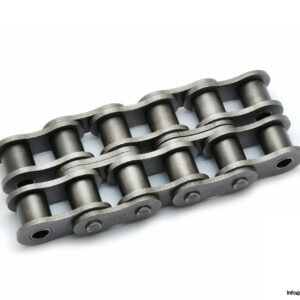

Donghua 56B-2 Double-Strand Metric Roller Chain

Manufacturer: DONGHUA
Type: Double-Strand Metric Roller Chain
Model: 56B-2

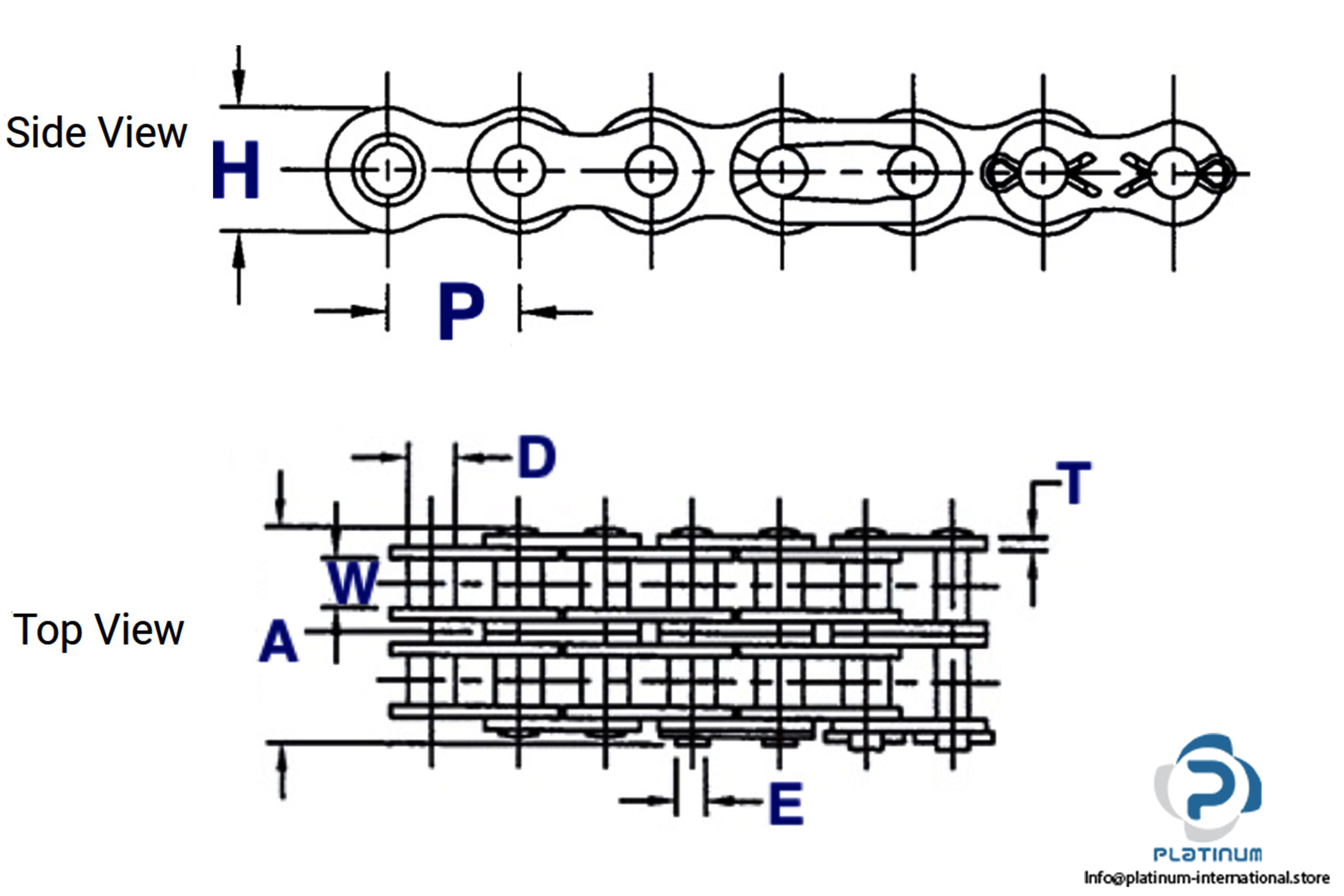

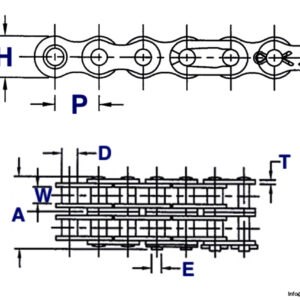

DIN/ISO 606
Chain no. 56B-2
PitchP: 88.9mm
Roller diameter D1: 53.98mm
Roller Width (W): 53.98mm
Pin Diameter E: 34.32mm
Plate Height (H): 77.8mm
Transverse Pitch (T): 106.60mm
C/L Width (A): 229.6mm
Breaking Load: 1760.0 kN
Weight (Per Ft): 70.0 kg/m
