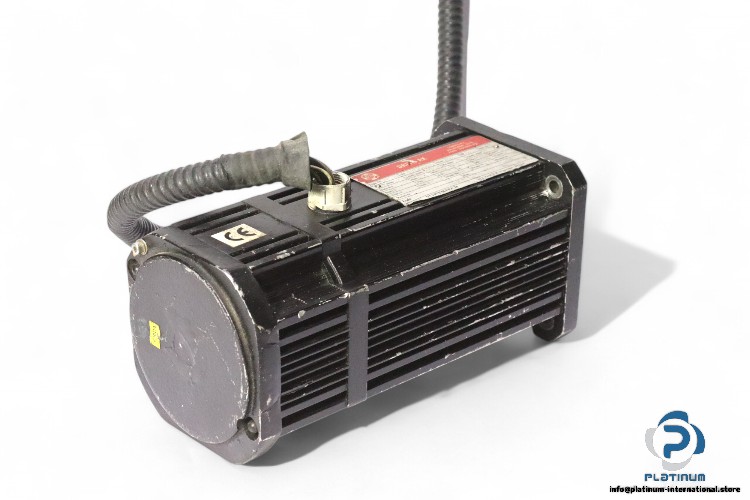

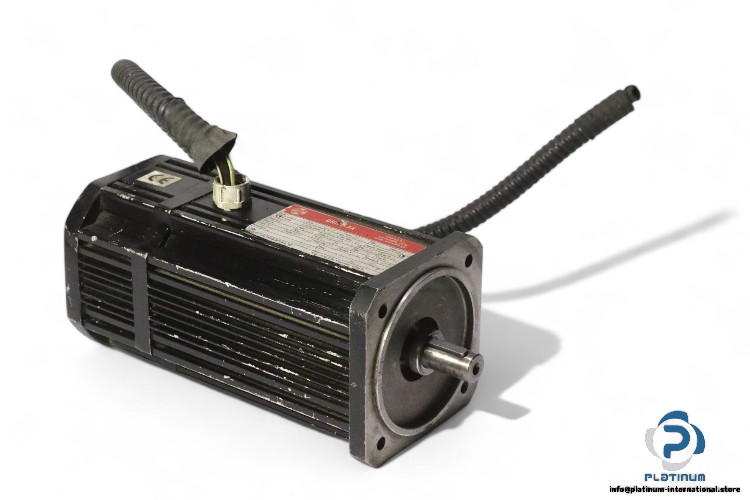

Drive AX 63.1C Motor

DRIVE AX MOTOR 63.1C

The DRIVE AX MOTOR 63.1C is a high-performance motor designed for industrial applications, offering reliable operation with features such as a 220 V nominal voltage, 1500 RPM nominal speed, and a 9500 RPM maximum speed. With a rated power of 0.41 kW and a rated torque of 2.6 Nm, this motor ensures efficient operation under varying conditions.

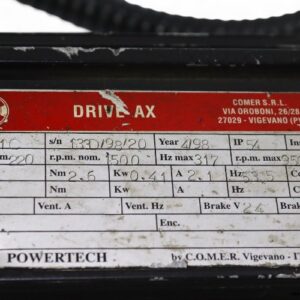

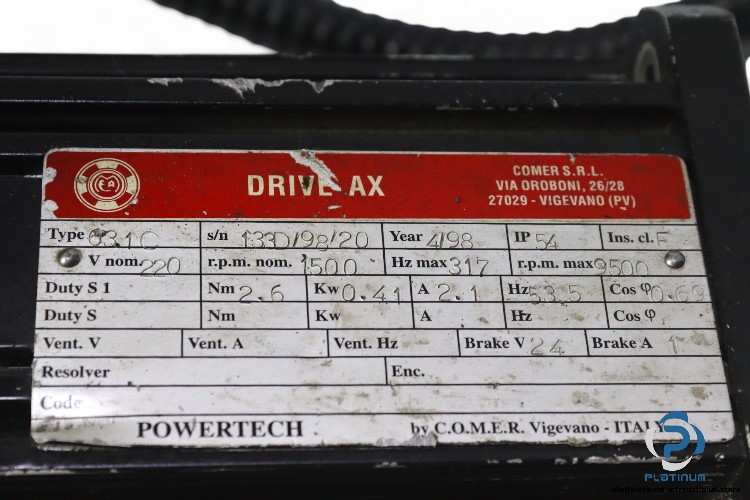

Manufacturer: DRIVE AX

Type: MOTOR

Model: 63.1C

Serial No.: 133D/98/20

Technical Specifications

• Nominal Voltage: 220 V
• Nominal Speed: 1500 RPM
• Max Frequency: 317 Hz
• Max Speed: 9500 RPM
• Rated Torque: 2.6 Nm
• Rated Power: 0.41 kW
• Rated Current: 2.1 A
• Frequency: 53.5 Hz
• Duty: S1
• Power Factor: 0.69
• Insulation Class: F
• Protection Class: IP54
• Brake Voltage: 24 VDC
• Brake Current: 1 A
