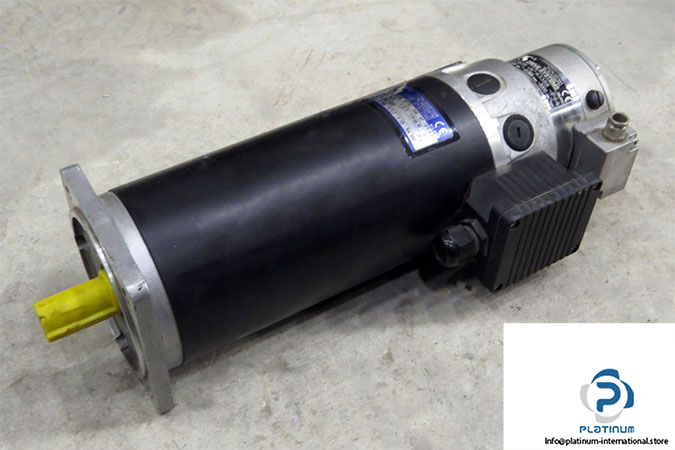

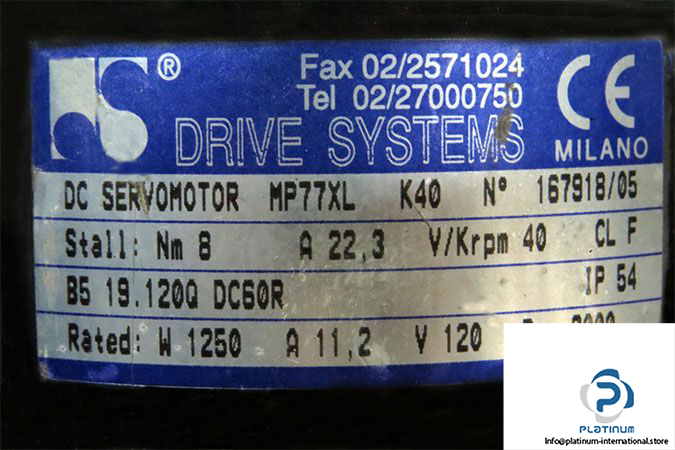

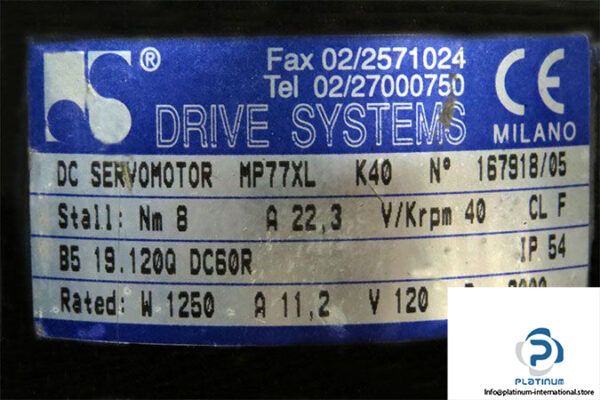

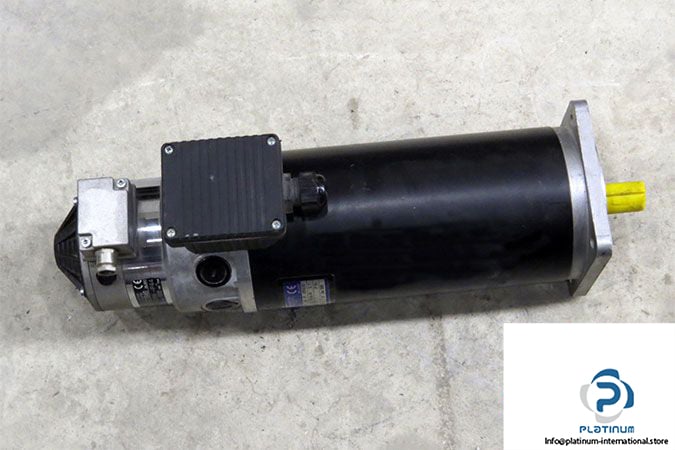

Drive Systems MP77XL K40 Servo Motor

Manufacturer: Drive Systems

Type: Servo Motor

Model: MP77XL K40

Max. Voltage: 120 V

Rated Current: 11.2 A

Continuous Stall Current: 22.3 A

Peak Current: 154 A

Rated Speed: 3000 min^-1

Max. Speed: 4000 min^-1

Rated Power: 1250 W

Continuous Stall Torque: 8 Nm

Peak Stall Torque: 41 Nm

Torque Constant: 0.36 Nm/A

Thermal Class: F

Protection Class: IP54
