Dropsa 1523332 Flow Master
New
In stock3 unitsReady to ship
Flow Master
The Dropsa Flow Master is designed for high-performance lubrication, featuring a 12V DC power supply, 392:1 reduction ratio, and a maximum torque of 3 Kg.cm. It delivers reliable fluid delivery with up to 20 bar pressure and operates in a wide temperature range of -20°C to +60°C.12V20392:1AluminumbardcDeliveryDropsaEquipmentflowFluidhigh-performanceIndustriallubricationmasterPressurepumpratioReductionSystemViscosity
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

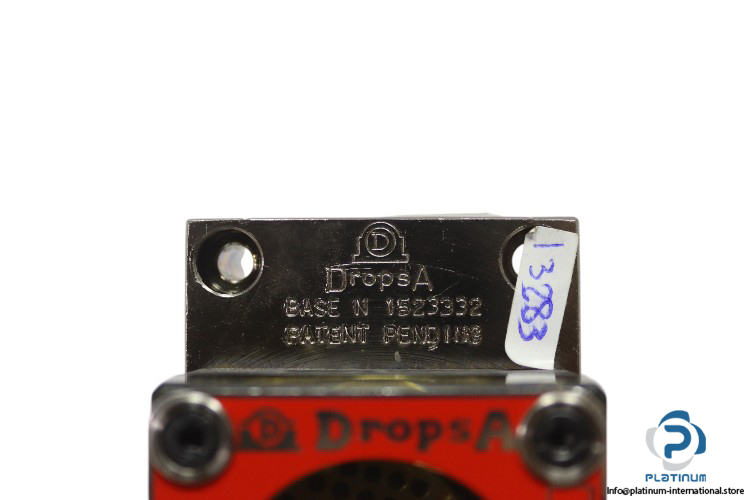

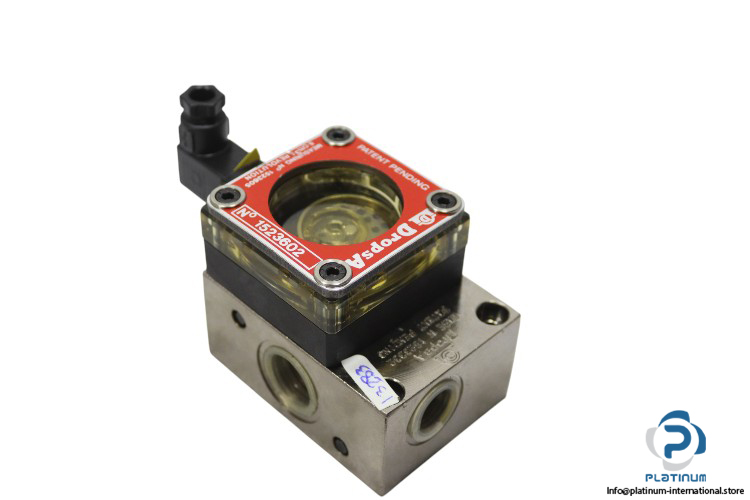

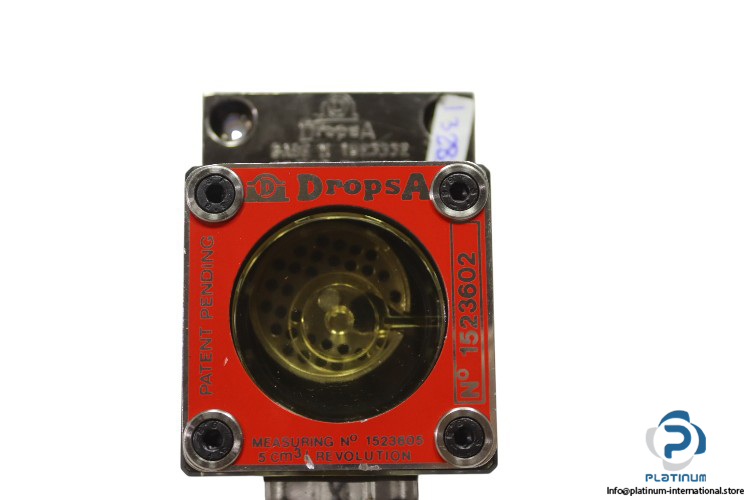

Dropsa Flow Master
The Dropsa Flow Master is an advanced lubrication system designed for high-performance fluid delivery in industrial applications. With a 12V DC power supply, this unit offers a reduction ratio of 392:1, delivering a maximum torque of 3 Kg.cm. It operates efficiently even with high fluid viscosities, ensuring reliable performance across a wide temperature range.
Manufacturer: DROPSA
Type: Flow Master
Code No: 1523332
Part No: 1523602 / 1523605
Technical Data:
- Power Supply: 12 V DC
- Reduction Ratio: 392:1
- Maximum Torque: 3 Kg.cm
- Revolutions Per Minute Without Load: 6 rpm
- Revolutions Per Minute With Maximum Torque: 5 rpm
- Maximum Fluid Viscosity: 1000 cSt (4628 SUS) at operative temperature
- Operative Temperature Range: -20°C to +60°C
- Minimum Pressure: 6 bar (88.2 psi) in continuous working
- Maximum Pressure: 20 bar (294 psi)
- Thread of Base (Inlet/Outlet): G1/2 BSP (inlet) “ G3/8 BSP (outlet)
- Gasket: O Ring in Viton
- Material: Aluminum
