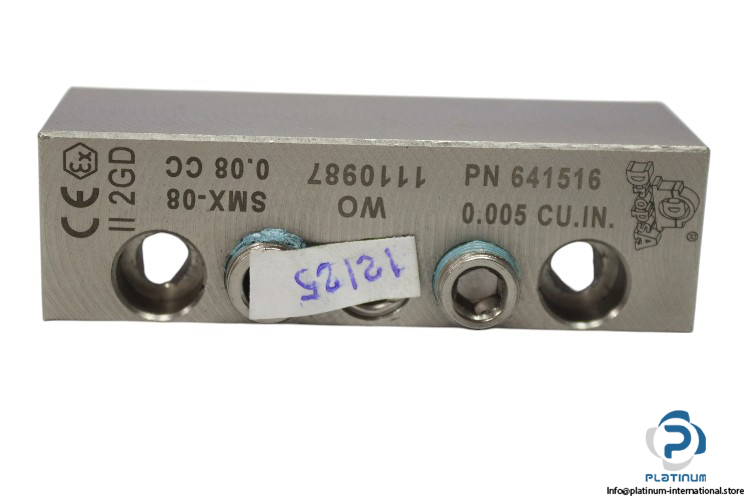

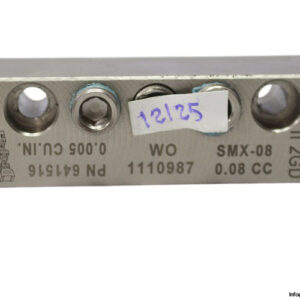

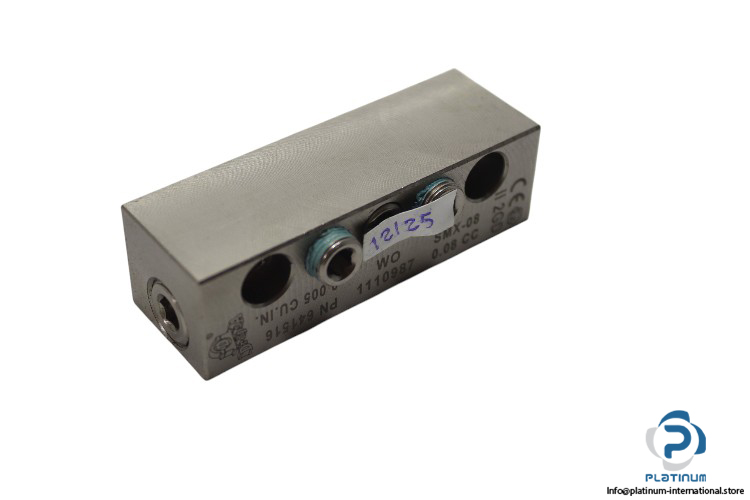

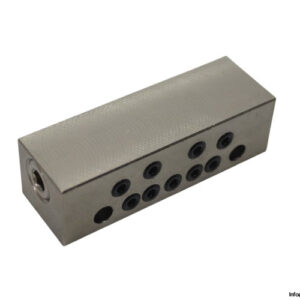

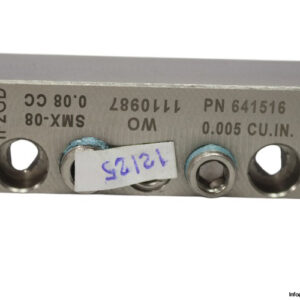

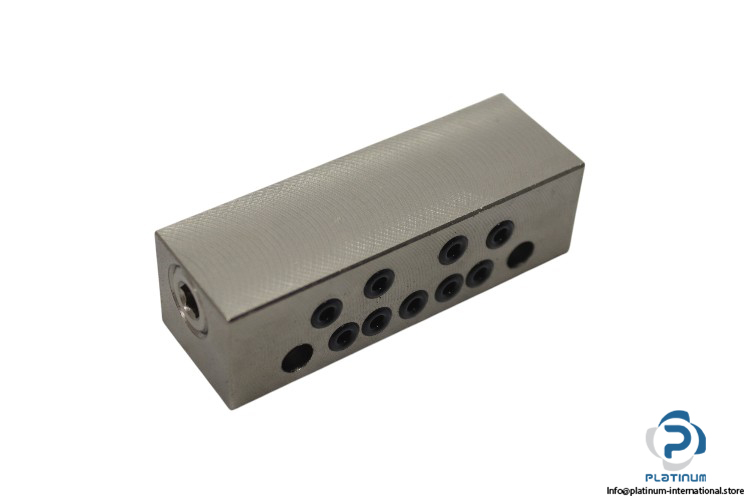

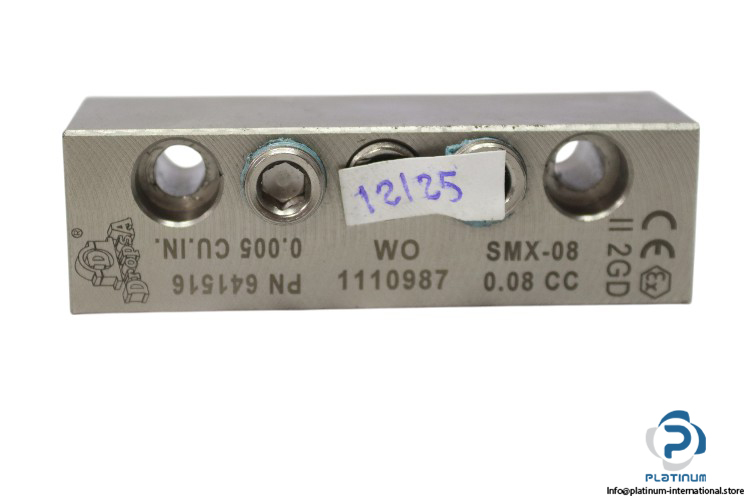

Dropsa SMX-08 0.08 CC Modular Progressive Divider
Dropsa SMX-080.08CC Progressive Divider “ High-pressure modular distributor with full monitoring, G1/8 nickel-plated connection, and compatibility with grease and oil systems.
Dropsa SMX-080.08CC Modular Progressive Divider
The Dropsa SMX-080.08CC is a robust modular progressive divider designed for precision distribution of grease and oil in centralized lubrication systems. Engineered for high-pressure operation and flexibility, it supports multiple thread standards and provides full monitoring capabilities.
Manufacturer: Dropsa
Type: Modular Progressive Divider / Distributor
Model: SMX-080.08CC
Part No.: 641516
Order No.: 1110987
Key Features:
The two outputs are combined by replacing the adapter
Air bleed valves built into both sides of the base
SAE Metric - BSP - NPTF threads available
Operates at: SMX 7,200 psi (500 bar), SMO 5,800 psi (400 bar)
Full monitoring controls
Bases are always supplied complete with standard 'O' rings
| Fluid | Grease and Oil |
| Connection | G1/8 |
| Material | Nickel-Plated |
| Protection | II 2GD |
