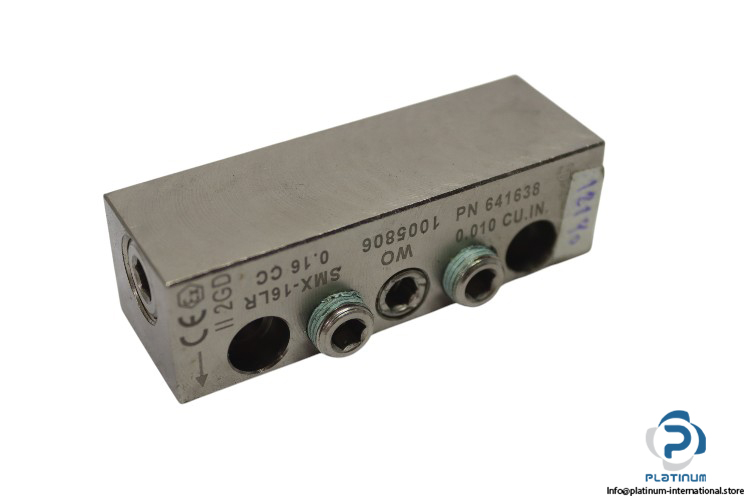

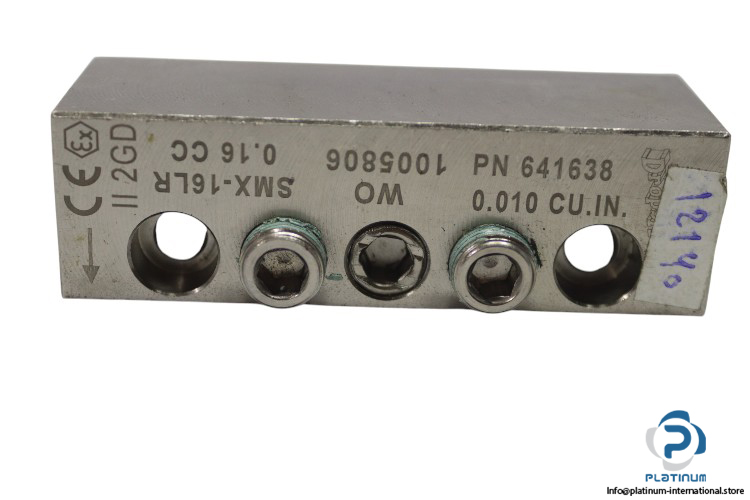

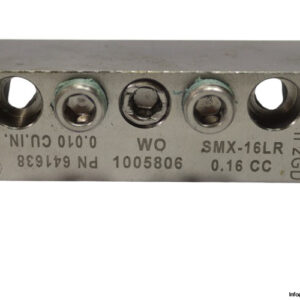

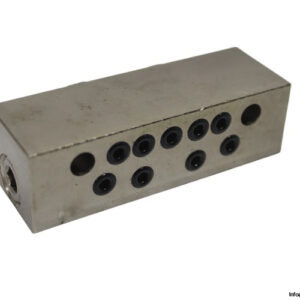

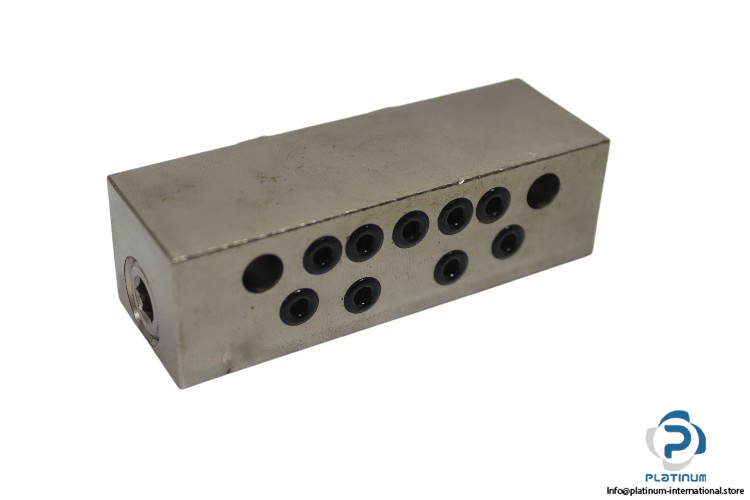

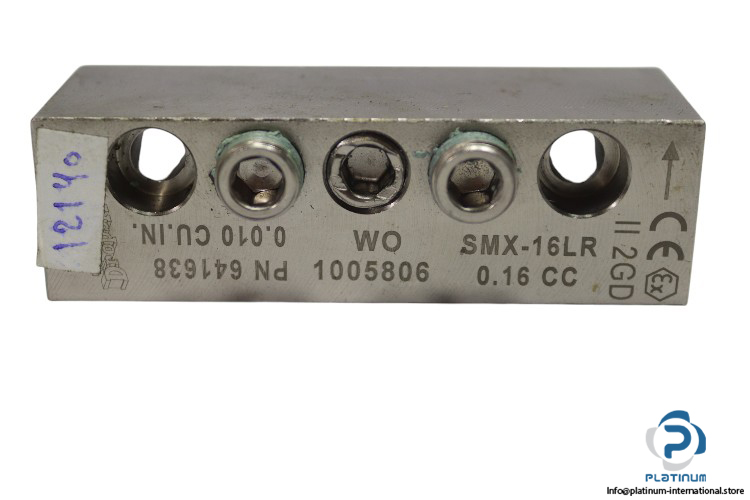

Dropsa SMX-16LR 0.16 CC Modular Progressive Distributor
Dropsa SMX-16LR0.16CC Bridge Valve “ Modular progressive distributor with G1/8 port, nickel-plated build, 500 bar capacity, and II2GD explosion-proof rating. Compatible with oil and grease lubrication systems.
Dropsa SMX-16LR0.16CC Modular Progressive Distributor / Bridge Valve
The Dropsa SMX-16LR0.16CC is a high-precision modular progressive distributor/bridge valve designed for use in advanced lubrication systems. Built for durability and flexibility, it supports multiple thread types and includes key features for reliable and customizable grease and oil delivery.
Manufacturer: Dropsa
Type: Modular Progressive Distributor / Bridge Valve
Model: SMX-16LR0.16CC
MNR: 0.010 CU.IN.
Part No.: 641638
Order No.: 1005806
Key Features:
The two outputs are combined by replacing the adapter
Air bleed valves built into both sides of the base
SAE, Metric, BSP, and NPTF threads available
Full monitoring controls for system diagnostics
Bases include standard O-rings for secure sealing
| Fluid | Grease and Oil |
| Connection | G1/8 |
| Material | Nickel-Plated |
| Protection | II2GD (Explosion-proof rated) |
| Operating Pressure | SMX: 7,200 psi (500 bar), SMO: 5,800 psi (400 bar) |
