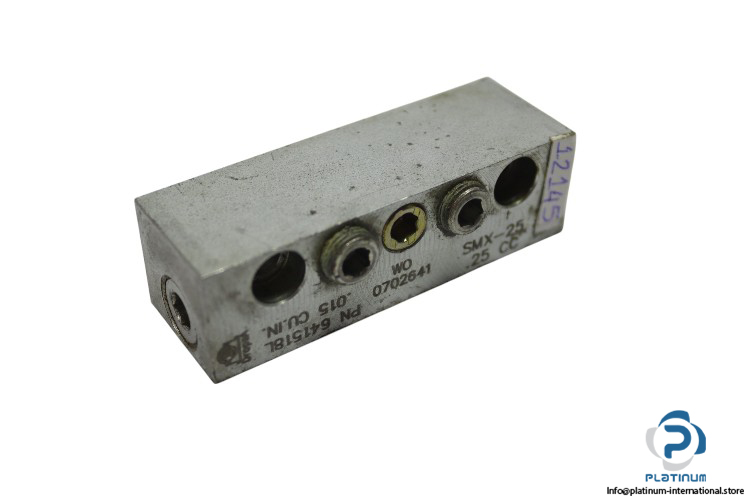

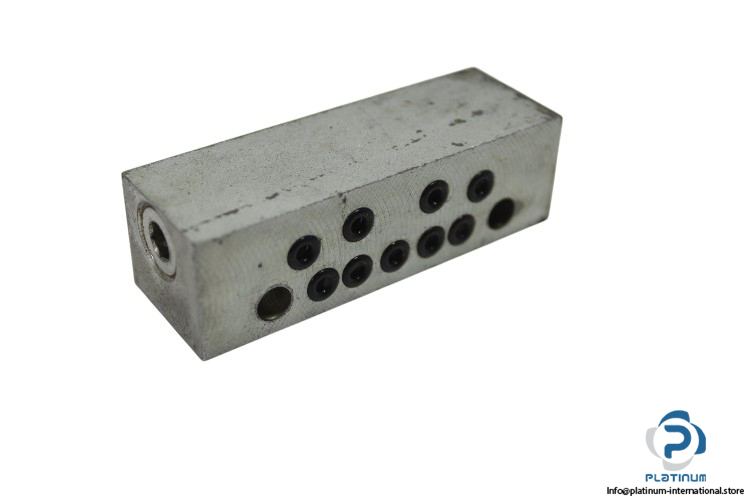

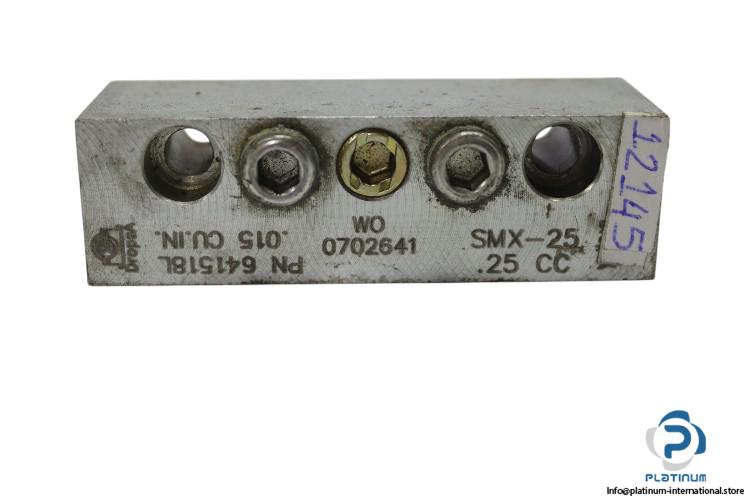

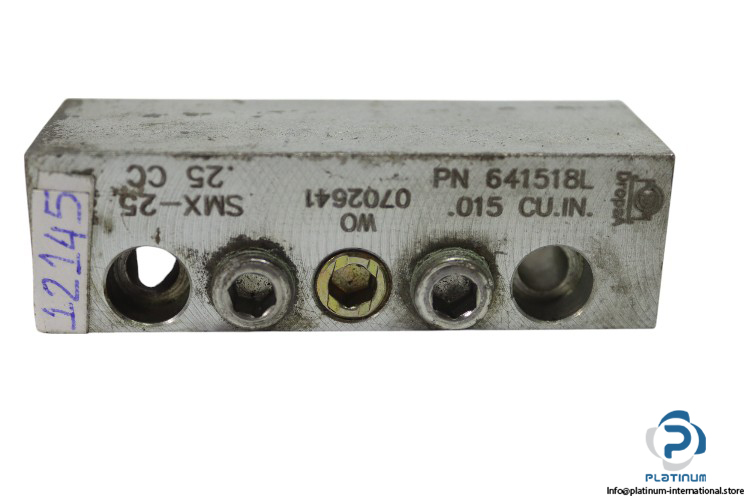

Dropsa SMX-25 .25 CC Modular Progressive Distributor
Dropsa SMX-25.25CC Metering Valve “ Precision modular distributor with G1/8 connection, supports grease and oil. Operates up to 7200 psi with full monitoring and multi-thread compatibility.
Dropsa SMX-25.25CC Modular Progressive Distributor / Metering Valve
The Dropsa SMX-25.25CC is a high-performance modular progressive distributor designed for precise grease and oil metering in centralized lubrication systems. With built-in air bleed valves, full monitoring controls, and multiple threading options, it is engineered for versatility and reliability in high-pressure industrial applications.
Manufacturer: Dropsa
Type: Modular Progressive Distributor / Metering Valve
Model: SMX-25.25CC
MNR: 0.015 CU.IN.
Part No.: 641518L
Order No.: 0702641
Key Features:
The two outputs are combined by replacing the adapter
Air bleed valves built into both sides of the base
Full monitoring controls for system accuracy
Bases are always supplied complete with standard 'O' rings
| Fluid | Grease and Oil |
| Connection | G1/8 |
| Material | Nickel-Plated |
| Operating Pressure | SMX up to 7,200 psi (500 bar), SMO up to 5,800 psi (400 bar) |
| Available threads | SAE Metric, BSP, NPTF |
