Dropsa SMX-50 0.50 CC Modular Progressive Distributor
Dropsa SMX-500.50CC Modular Progressive Distributor “ Nickel-plated lubrication distributor for oil and grease. 500 bar pressure rating, full monitoring, G1/8 port, and flexible threading options.

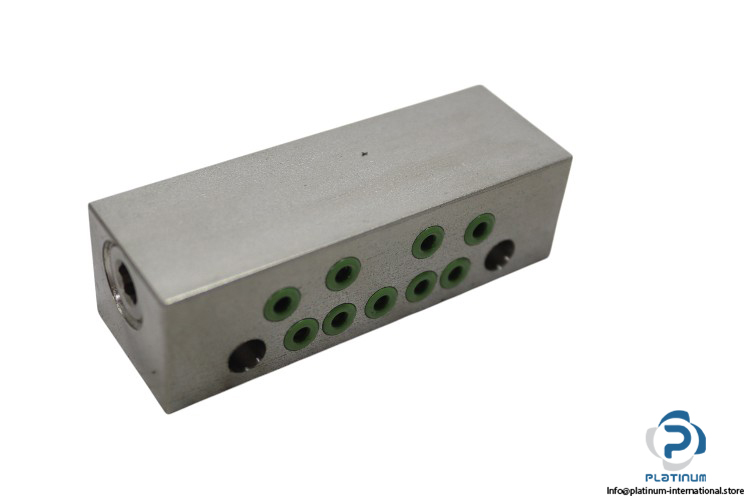

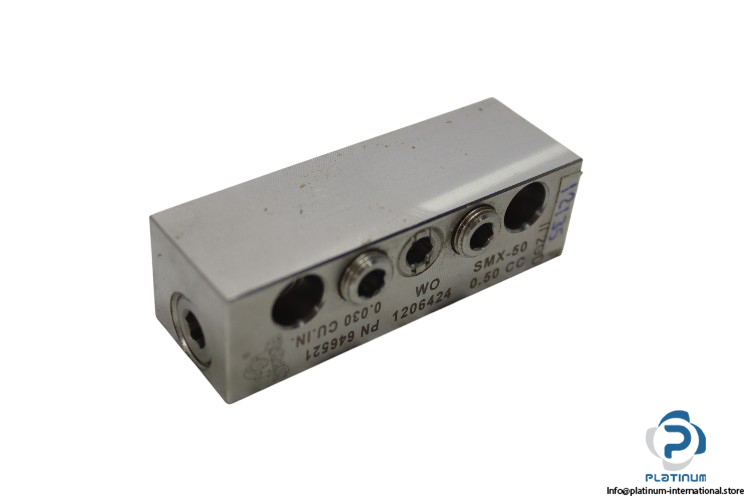

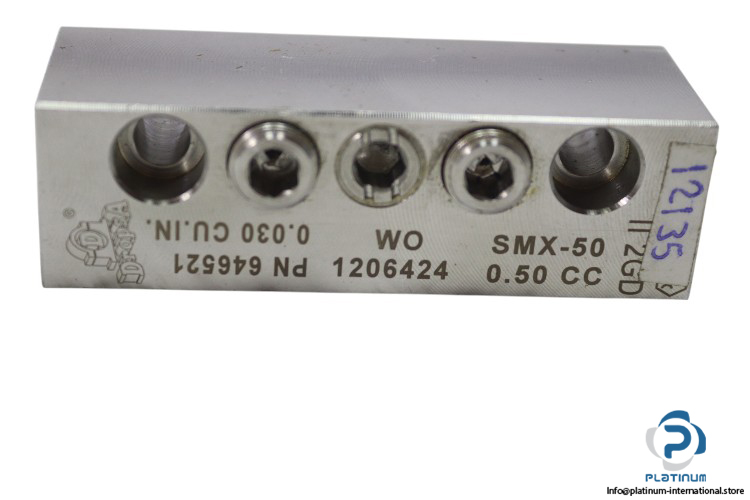

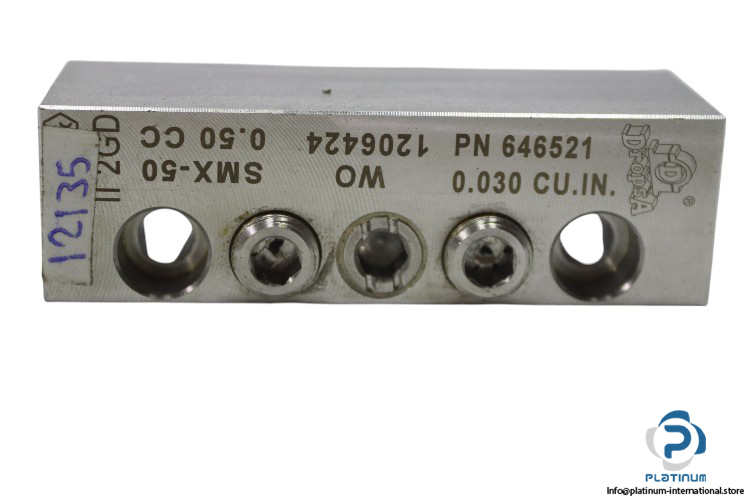

Dropsa SMX-500.50CC Modular Progressive Distributor
The Dropsa SMX-500.50CC is a high-performance modular progressive distributor, engineered for precise lubricant delivery in centralized lubrication systems. Its robust nickel-plated construction and full monitoring features make it ideal for demanding industrial applications involving oil and grease distribution.
Manufacturer: Dropsa
Type: Modular Progressive Distributor
Model: SMX-500.50CC
MNR: 0.030 CU.IN.
Part No.: 646521
Order No.: 1206424
Key Features:
Two outputs can be combined by replacing the adapter
Built-in air bleed valves on both sides of the base
SAE Metric, BSP, and NPTF thread types available
Full monitoring controls for precise operation
Bases supplied complete with standard O-rings
| Fluid | Grease and Oil |
| Connection | G1/8 |
| Material | Nickel-Plated |
| Operating Pressure | SMX 7,200 psi (500 bar), SMO 5,800 psi (400 bar) |
