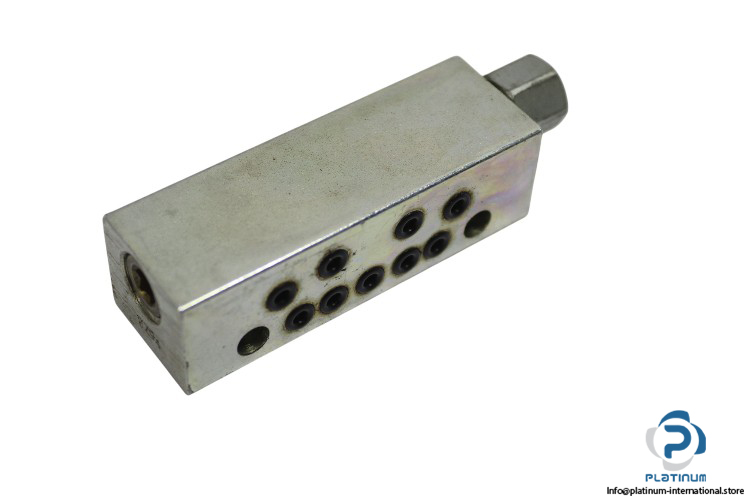

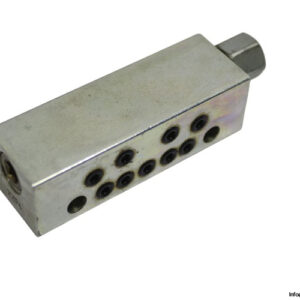

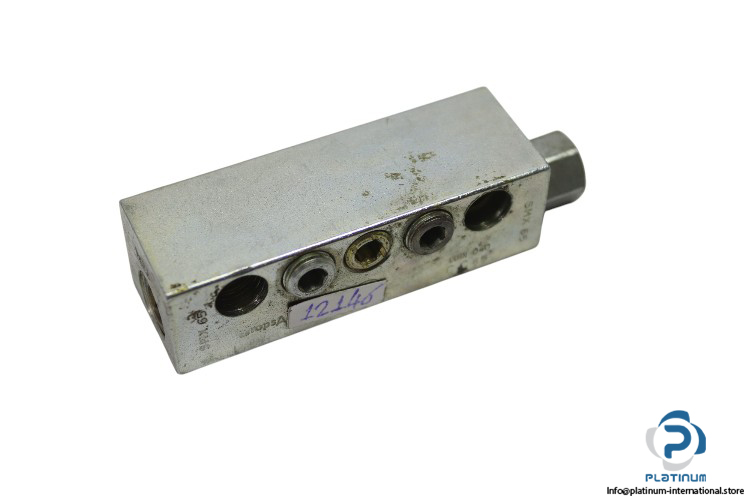

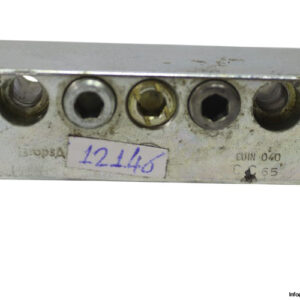

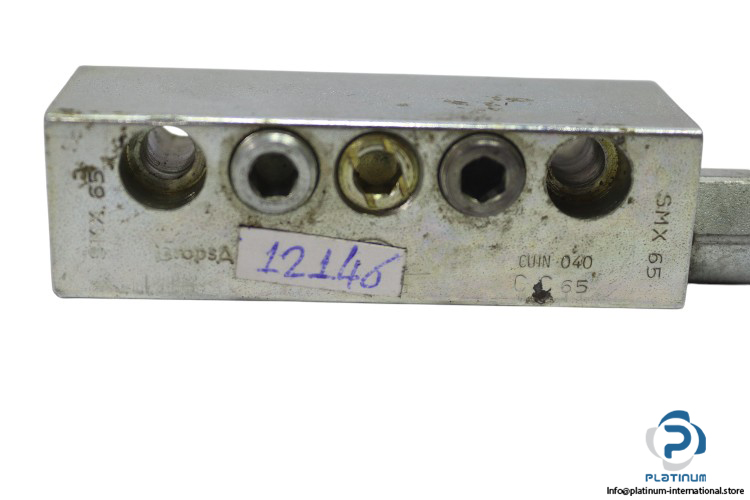

Dropsa SMX 65 Modular Progressive Distributor
Dropsa SMX65 Progressive Distributor “ High-performance modular unit for oil and grease lubrication, supporting up to 7,200 psi with air bleed valves, full monitoring, and G1/8 connections.
Dropsa SMX65 Modular Progressive Distributor
The Dropsa SMX65 is a high-pressure modular progressive distributor designed for precision lubrication in complex machinery systems. Built for versatility and durability, this unit supports grease and oil delivery under extreme operating conditions with full monitoring capabilities and multiple thread options.
Manufacturer: Dropsa
Type: Modular Progressive Distributor
Model: SMX65
Special Features:
Two outputs can be combined by replacing the adapter
Air bleed valves on both sides of the base
Full monitoring controls
Bases come complete with standard 'O' rings
| Fluid | Grease and Oil |
| Connection | G1/8 |
| Material | Nickel-Plated |
| Operating Pressure | SMX 7,200 psi (500 bar), SMO 5,800 psi (400 bar) |
| Thread Options | SAE Metric, BSP, NPTF |
