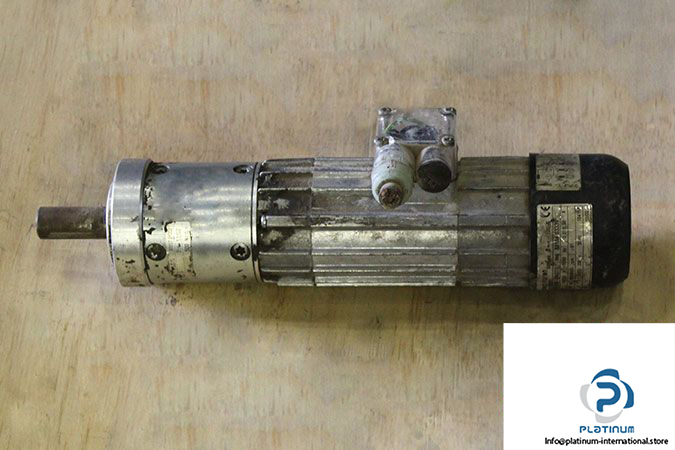

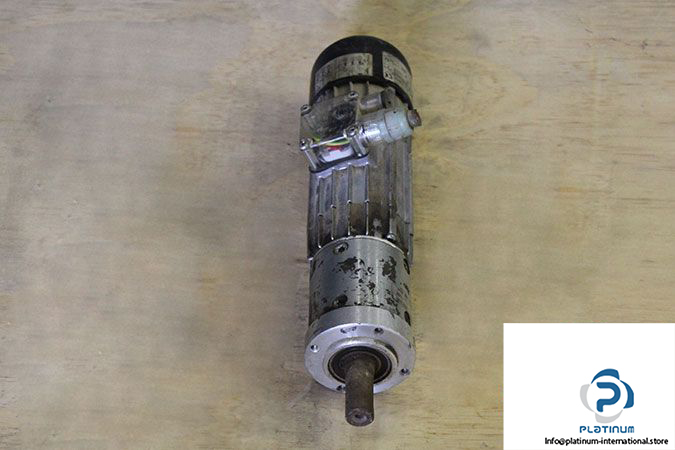

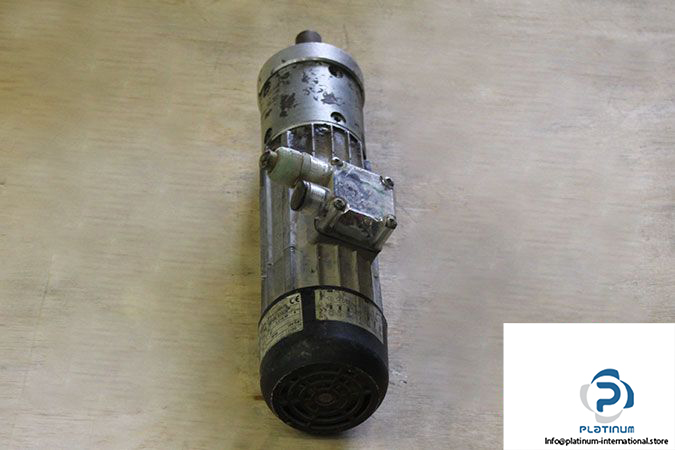

Dunkermotoren DR62.0X80-2/ASTO Servo Motor

Manufacturer: Dunker Motoren

Type: Servo Motor

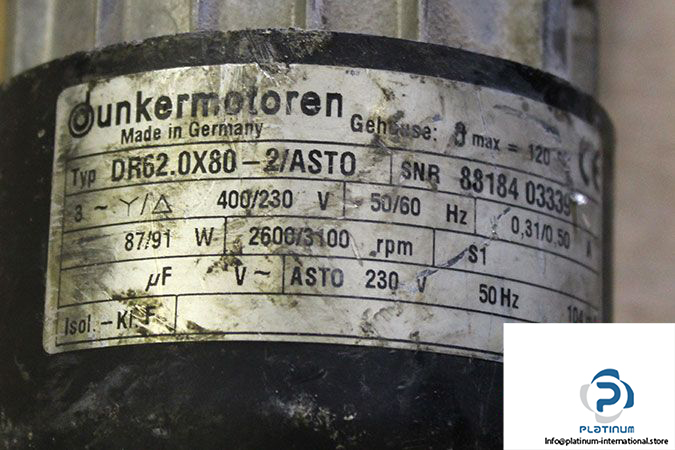

Model: DR62.0X80-2/ASTO

Rated Voltage (star): 400 V AC

Rated Voltage (delta): 230 V AC

Rated Current (star): 0.31 A

Rated Current (delta): 0.50 A

Rated Power (star): 87 W

Rated Power (delta): 91 W

Rated Speed (star): 2600 min^-1

Rated Speed (delta): 3100 min^-1

Frequency: 50/60 Hz

Max. Temperature: 120 °C

Duty: S1

Protection Class: IP54

Weight: 4.14 kg

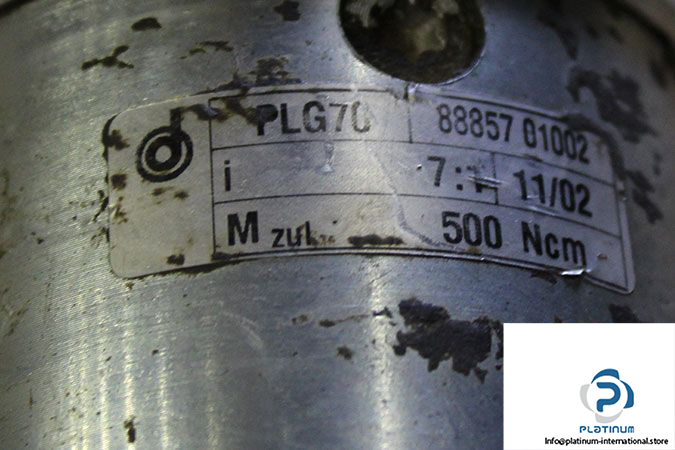

Attachments: DUNKERMOTOREN PLG70 GEARBOX

Manufacturer: Dunker Motoren

Type: Gearbox

Model: PLG70

Ratio: 7

Nominal Output Torque: 500 Ncm
