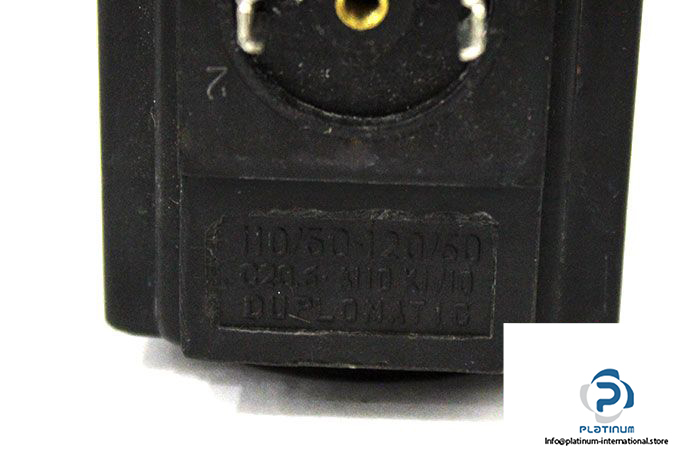

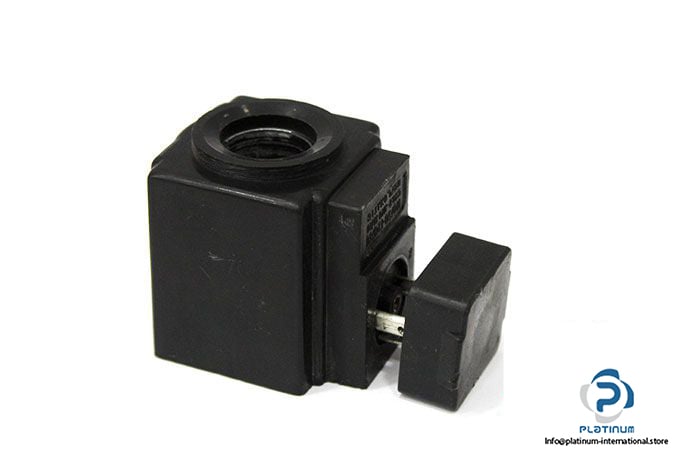

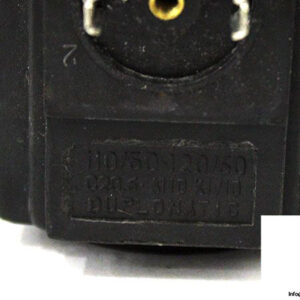

Duplomatic C20.6-AII0 KI/10 Solenoid Coil

Manufacturer: DUPLOMATIC

Type: Solenoid Coil

Model: C20.6-AII0 KI/10

Part No.: 1902832

Power supply:

Voltage: 120 V AC

• Frequency: 60 Hz
• Current consumption: 56 A @ inrush / 0.39 @ holding
• Power consumption: 188 VA @ inrush / 47 VA @ holding

Voltage: 110 V AC

• Frequency: 50 Hz
• Current consumption: 84 A @ inrush / 0.46 @ holding
• Power consumption: 192 VA @ inrush / 48 VA @ holding

Electrical connection: 3-pin

Plug design: Cylindrical

Inner diameter: 21.9 mm

Length: 54.5 mm

Protection Class: IP65

Weight: 0.33 kg
