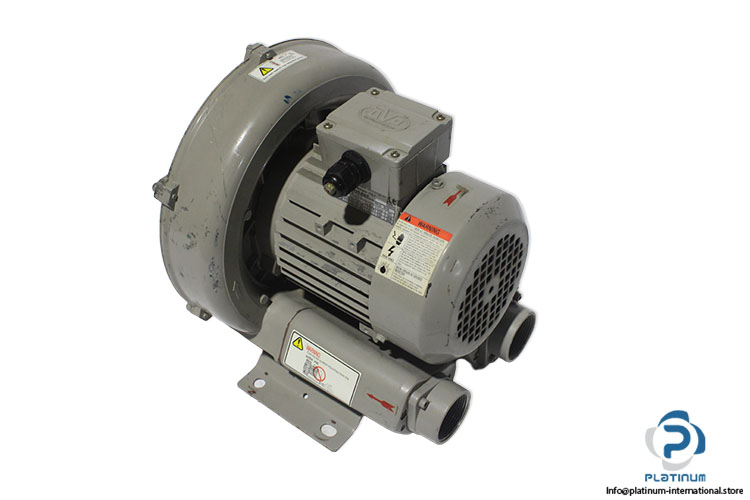

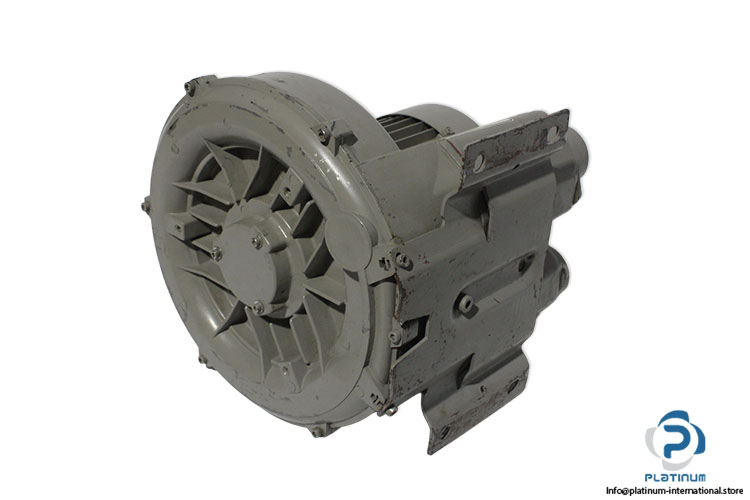

Dvp Tsb 9402032 Side Channel Blower
Used
In stock1 unitReady to ship
Side Channel Blower The D.V.P. TSB 9402032 is a high-performance side channel blower designed for continuous-duty industrial vacuum and pressure applications, offering reliable airflow, dual-frequency operation, and IP55 protection.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

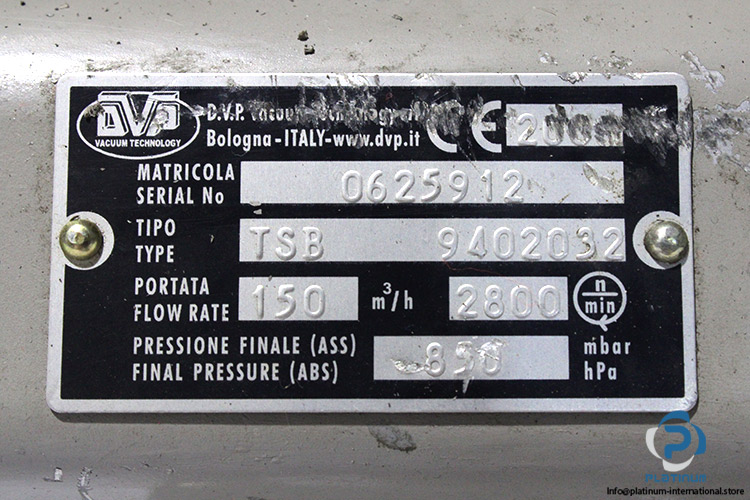

| SN. | 0625912 |
| Flow Rate (Portata) | 150 m³/h |
| Rotational Speed | 2800 RPM (n/min) |
| Final Absolute Pressure | 850 mbar / hPa |
| Wiring Connection | ? (Delta) / Y (Star) |

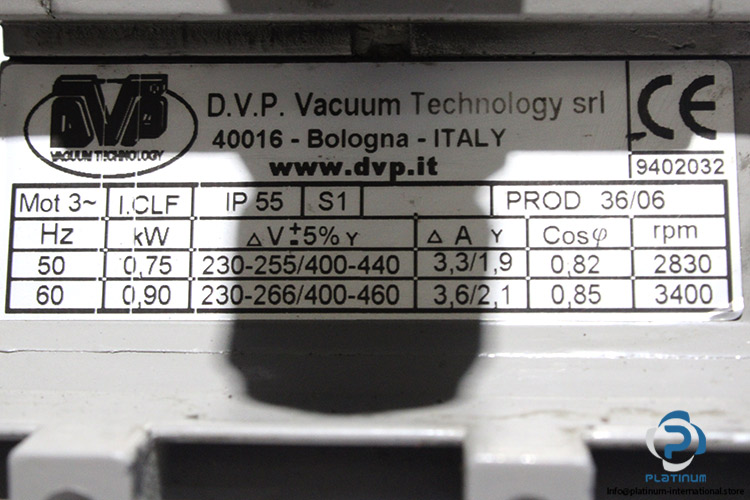

| Rated Voltage (V) at 50 hz | 230-255/400-440 |
| Rotational Speed (1/min) at 50 hz | 2830 RPM |
| Power Factor at 50 hz | 0,82 |
| Power Output at 50 hz | 0,75 kW |
| Current Consumption (A) at 50 hz | 3,3/1,9 |
| Rated Voltage (V) at 60 hz | 230-266/400-460 |
| Rotational Speed (1/min) at 60 hz | 3400 RPM |
| Power Factor at 60 hz | 0,85 |
| Power Output at 60 hz | 0.90 kW |
| Current Consumption (A) at 60 hz | 3,6/2,1 |
| Thermal Class | F |
| Enclosure [IP] | 55 |
| Duty | S1 |
| Stock key | JO-004 |
| Condition | Used |
| SKU | 1100495 |
| Weight | 16,76 |
