Dwyer 1823-10 Differential Pressure Switch
New
In stock2 unitsReady to ship
Differential Pressure Switch
DWYER 1823-10 Differential Pressure Switch is designed for precise pressure monitoring in HVAC and industrial automation applications. With a set point range of 5.1 – 25.4 mbar and a maximum operating pressure of 350 mbar, it offers reliable performance. Features include SPDT output, IP65 protection, and aluminum wetted material.1823-103505.1-25.4AluminumAutomationdifferentialDwyerHighHvacIndustrialIP65-ratedMaxmbarmonitoringOutputPneumaticPointPressureSetSpdtSwitch
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

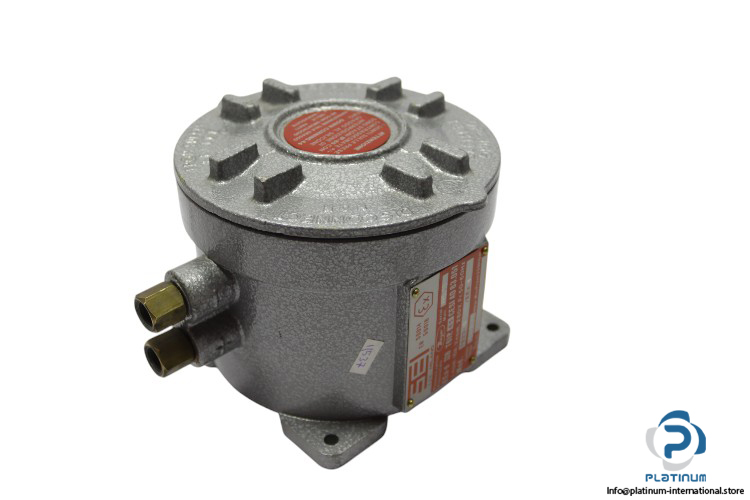

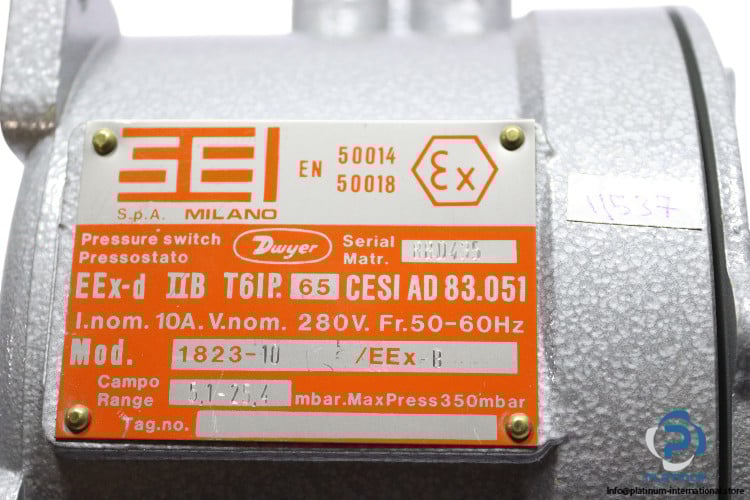

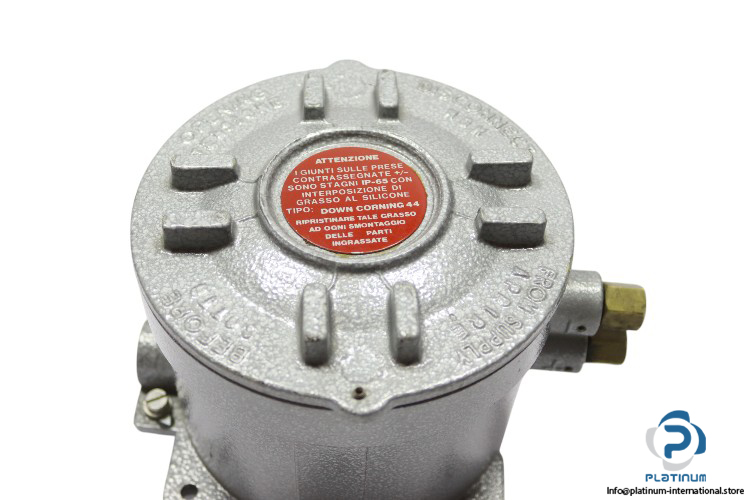

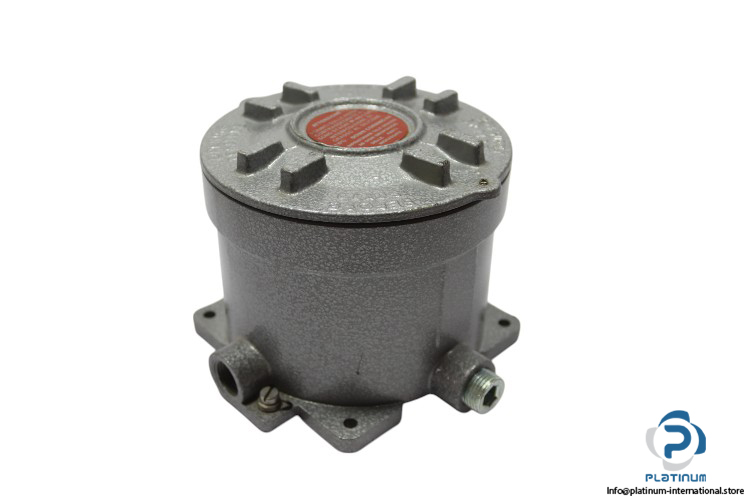

DWYER 1823-10 Differential Pressure Switch
The DWYER 182310 Differential Pressure Switch is a high-performance pressure monitoring device designed for precise differential pressure control in HVAC systems, industrial automation, and pneumatic applications. It features a robust aluminum housing and an IP65 protection rating, ensuring durability in demanding environments.
Manufacturer: DWYER
Type: Differential Pressure Switch
Model: 1823-10
| Medium | Air and Non-Combustible, Compatible Gases |
| Set Point Range | 5.1 … 25.4 mbar |
| Operating Pressure Max. | 350 mbar |
| Rated Voltage | 280 V AC |
| Rated Current | 10 A |
| Frequency | 50 … 60 Hz |
| Switching Output | SPDT |
| Wetted Material | Aluminum |
| Pneumatic Connection | G 1/4 & G 1/2 |
| Protection Class | IP65 |
| Temperature Range | -10 … 70 °C |
