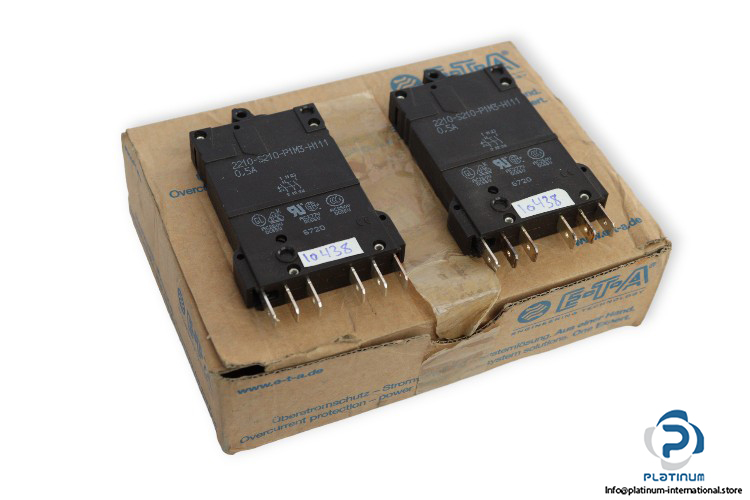

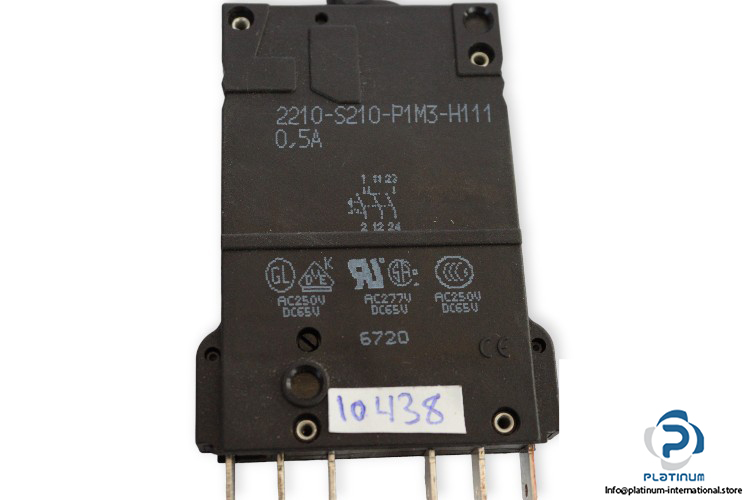

E-T-A 2210-S210-P1M3-H1110.5A Thermal-Magnetic Circuit Breaker
Manufacture: E-T-A Type: Thermal-Magnetic Circuit Breaker Model: 2210-S210-P1M3-H1110,5A Part No.: 6720
Manufacture: E-T-A
Type: Thermal-Magnetic Circuit Breaker
Model: 2210-S210-P1M3-H1110,5A
Part No.: 6720
Voltage rating: 250 V AC,277 V AC, 65 V DC
Auxiliary circuit: 1 A, 240 V AC/ 65 V DC, resistive (min. 10 V / 10 mA)
Actuator design: toggle
Number of poles: 1
Terminal design (main contacts): blade terminals 6.3-0.8
Characteristic curve: standard delay, low resistance: therm.1.4-1.8xIN; magnetic. 6-12xIN AC; 7.8-15.6xIN DC
Intermediate position: without intermediate position (standard)
Auxiliary contacts: with auxiliary contacts in all poles
Auxiliary contact function: one each N/C and N/O
Current ratings: 0,5 A (0.1…16 A)
Ambient temperature: -30 … +60 °C
