E131F26 Solenoid Valve
Used
In stock1 unitReady to ship
39,99$
SOLENOID VALVE
Compact 3/2 way solenoid valve with FKM seals, 1/8 inch connection, and 10 bar pressure rating. Suitable for AC/DC applications with a temperature range of -10 to 50 °C.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

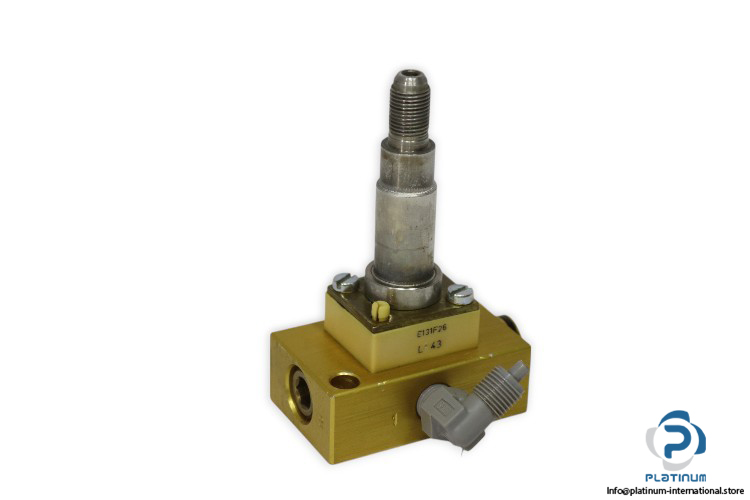

E131F26 SOLENOID VALVE
The E131F26 is a compact and efficient 3/2 way solenoid valve designed for versatile control of air and compatible fluids. With an FKM seal, wide temperature range, and 10 bar operating pressure, it provides reliable switching performance in both AC and DC systems.
Type: Solenoid Valve

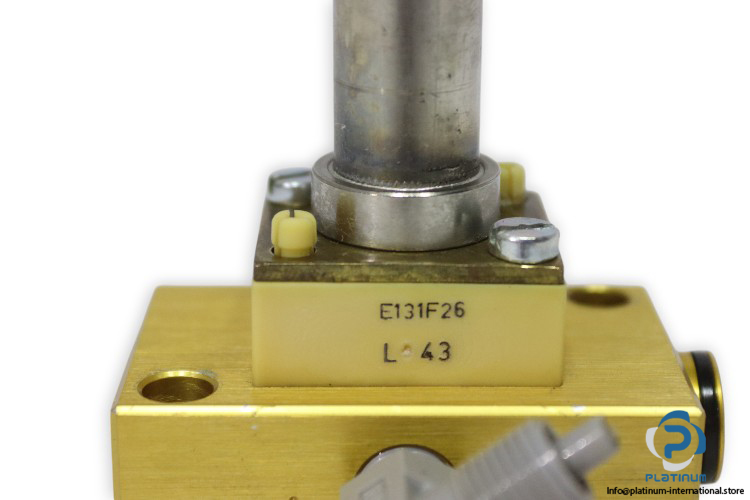

Model: E131F26

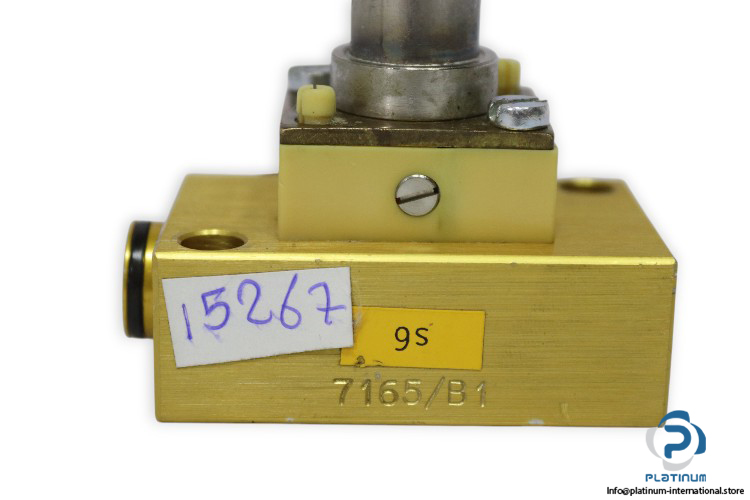

Part No.: 7165/B1
Code: L 43/9S
| Connection | 1/8 inch |
| Seal Material | FKM |
| Fluid Temperature | -10 to 50 °C |
| Valve Type | 3/2 Way |
| Maximum Operating Pressure | 10 bar (AC/DC) |
| Port Size | 32 x 32 mm |
| Exhaust Orifice Size | 2 mm |
| Flow Coefficient 1/2 | 2 / 0.12 m³/h |
