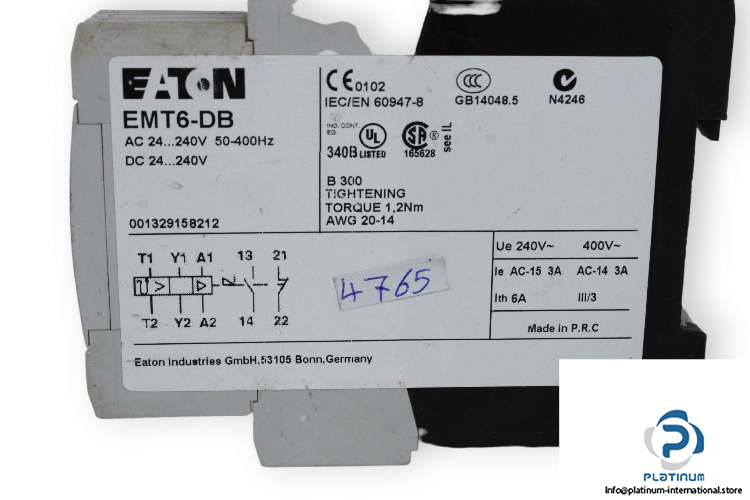

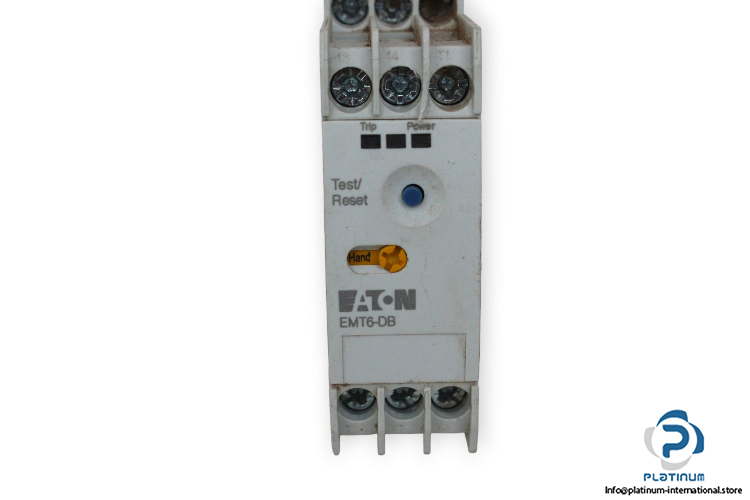

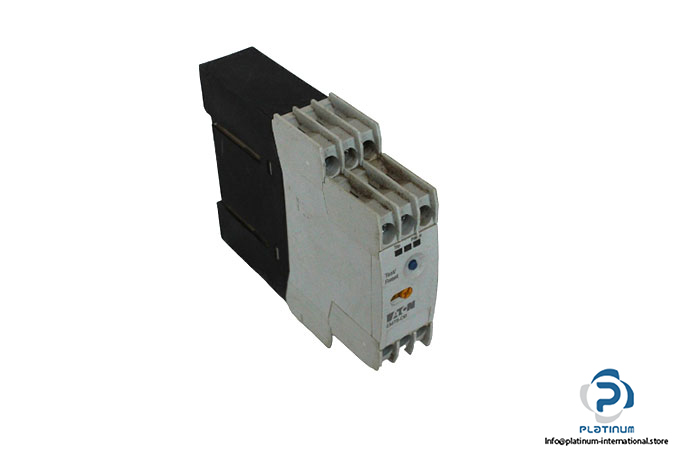

Eaton EMT6-DB Thermistor

Manufacturer: EATON
Type: Thermistor
Model: EMT6-DB

Rated impulse withstand voltage (Uimp):
6000 V AC
4000 V AC
Contact discharge: 6 kV
Tightening torque: 1.2 Nm
Conventional thermal current ith of auxiliary contacts
(1-pole, open): 6 A
Pick-up voltage: 0.85 – 1.1 V x Uâ‚‘
Power consumption: 2 W at DC, 3.5 VA at AC
Rated control supply voltage (Us) at AC, 50 Hz – min: 24 V
Rated control supply voltage (Us) at AC, 50 Hz – max: 240 V
Rated control supply voltage (Us) at AC, 60 Hz – min: 24 V
Rated control supply voltage (Us) at AC, 60 Hz – max: 240 V
Rated control supply voltage (Us) at DC – min: 24 V
Rated control supply voltage (Us) at DC – max: 240 V
Rated insulation voltage (Ui): 240 V
Ambient Temperature: 25 … 45 °C
Protection Class: IP20
Dimensions: 103 x 83 x 23 mm
