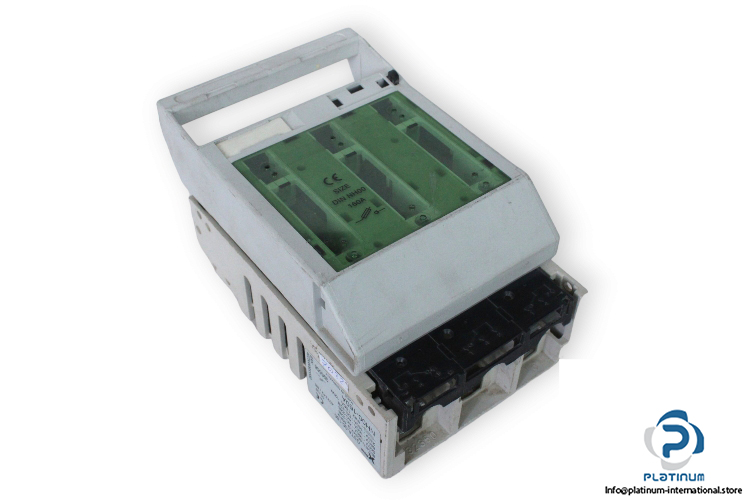

Eaton GSTA00-160 Fuse Switch-Disconnector

Manufacturer: Eaton
Type: Fuse Switch-Disconnector

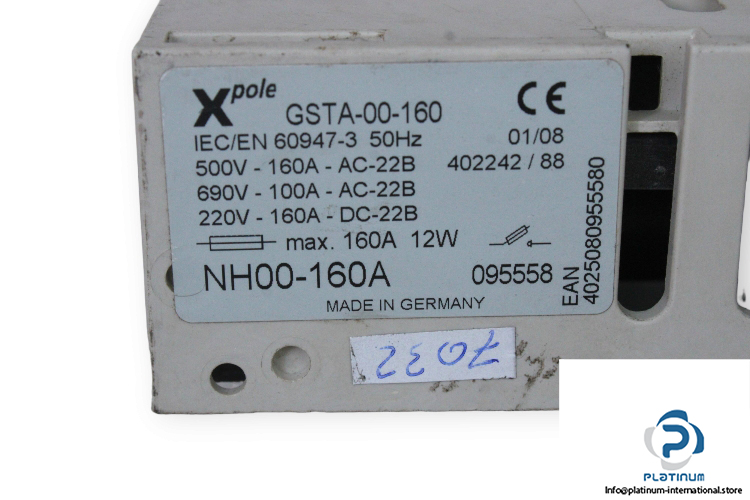

Model: GSTA00-160
Article No.: 095558

Voltage Rating:

AC-22B: 690 V AC,100 A

AC-22B: 500 V AC,160 A
DC-22B: 220 V DC,160 A

Actuator Type: Rocker lever

Max. Allowed Power Dissipation of Solid Links: 12 W

Rated current Max.: 160 A
Tightening Torque: 2.6 Nm

Number of poles: 3 Pole
Frequency: 50 Hz

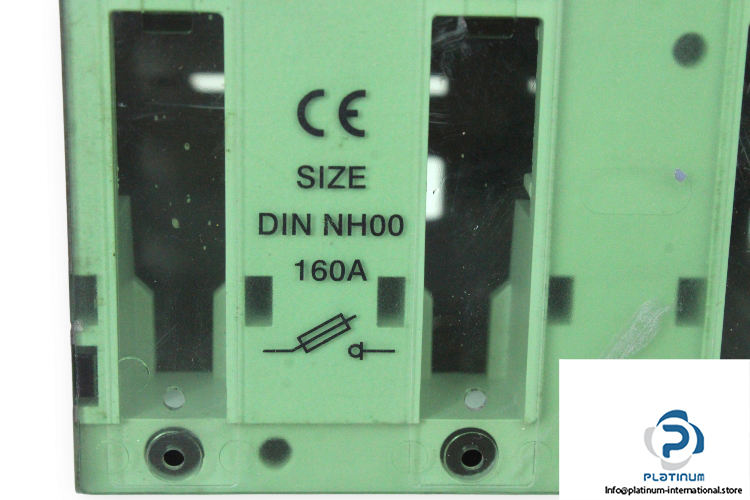

Fuse-Link Size: NH00

Degree of protection: IP20

Ambient operating temperature: -25 … 55 °C
Dimension: 105.5 X 169 X 86 mm
NH00-160A
