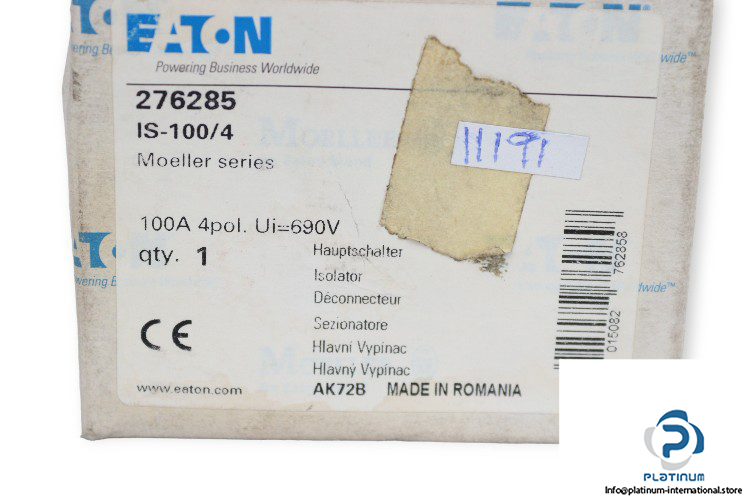

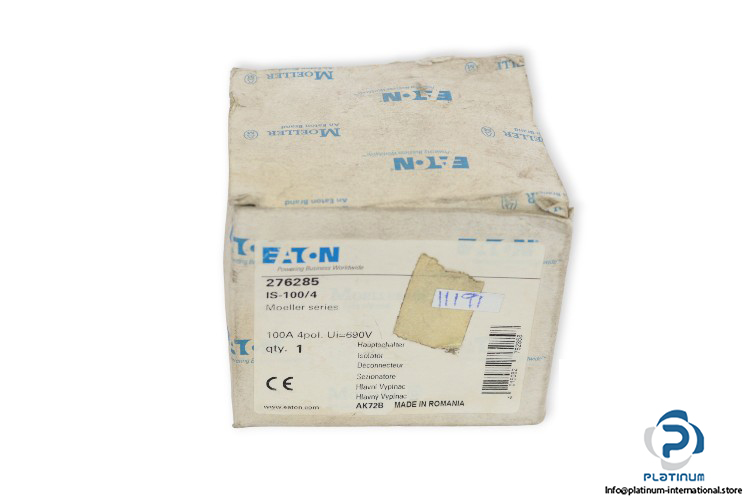

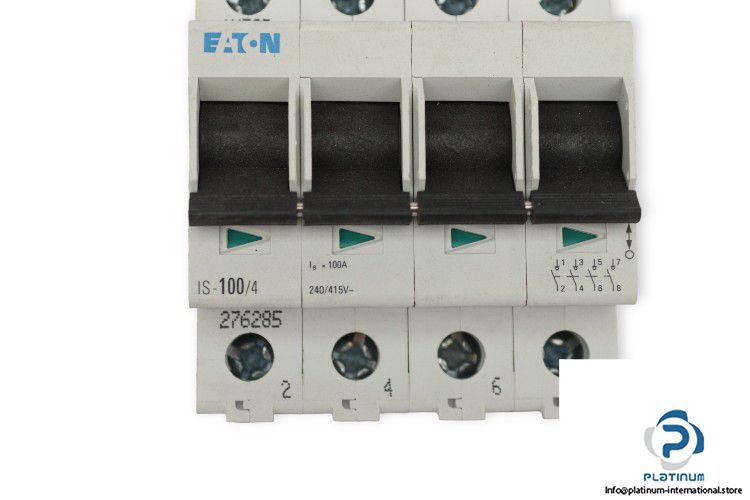

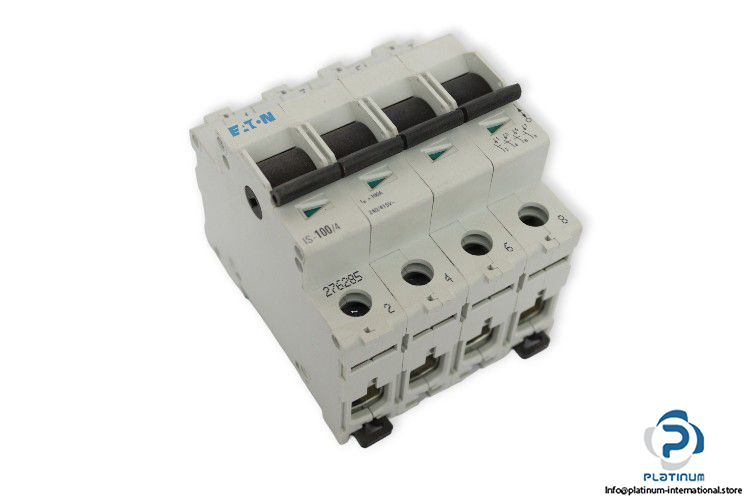

Eaton IS-100/4 Main Switch

Manufacture: Eaton
Type: Main switch
Model: IS-100/4
Part No.: 276285

Application: Switchgear for industrial and advanced commercial applications
Voltage rating: 240/400 V AC
Frequency: 50/90 Hz
Insulation voltage Ui: 690 V AC
short-circuit making capacity (Icm): 2800 A
Rated short-time withstand current (Icw): 2000 A
Equipment heat dissipation, current-dependent: 11.8 W
Heat dissipation per pole, current-dependent: 3.9 W
Number of poles: Four-pole
Rated operational current for specified heat dissipation (In): 100 A
Rated operational voltage (Ue): max 415 V
Standard: IEC/EN 60947-3
Protection degree: IP10
Dimensions: 80 x 76 x 70 mm
