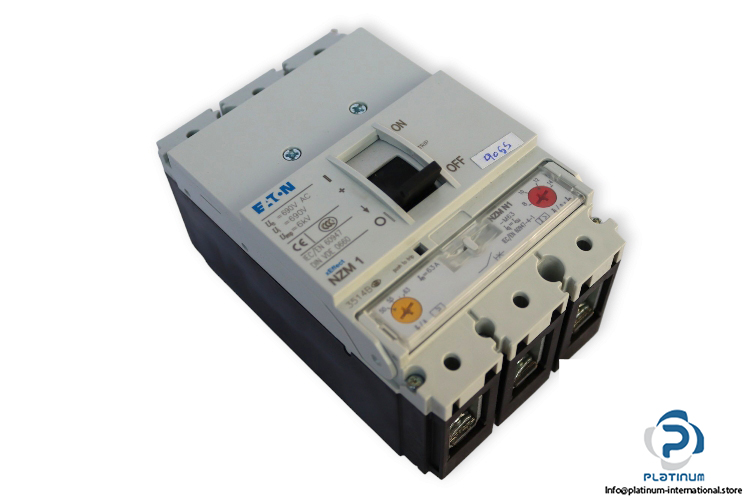

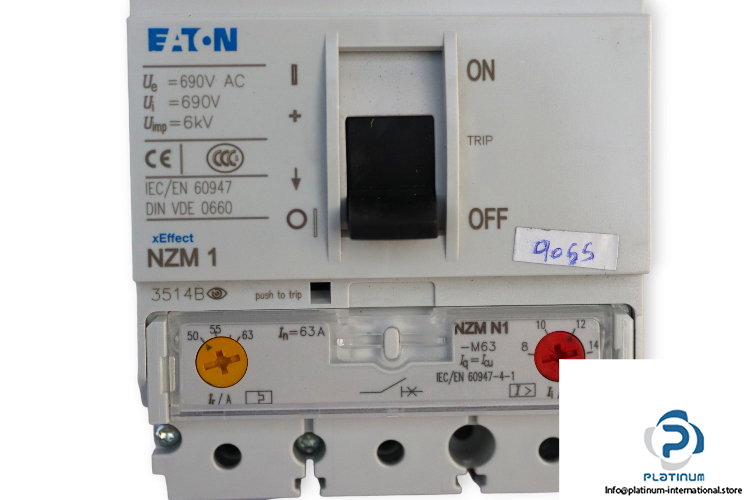

Eaton NZMN1-M63 Circuit-Breaker
Manufacturer: Eaton
Type: Circuit-breaker

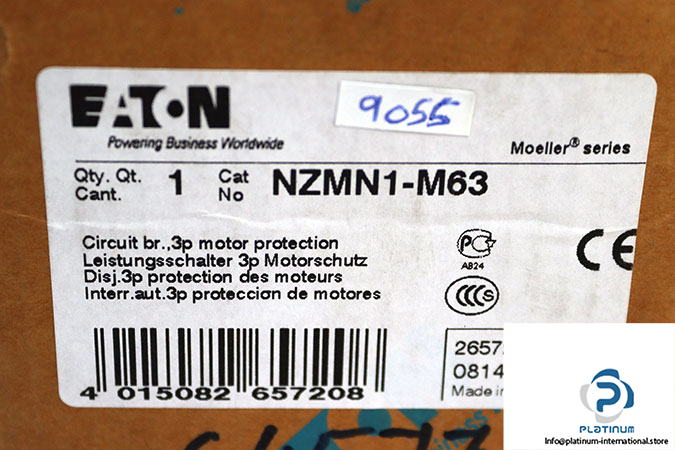

Model: NZMN1-M63
Part No: 265720
Operating Voltage: 115 … 500 V AC/ 24 … 220 V DC

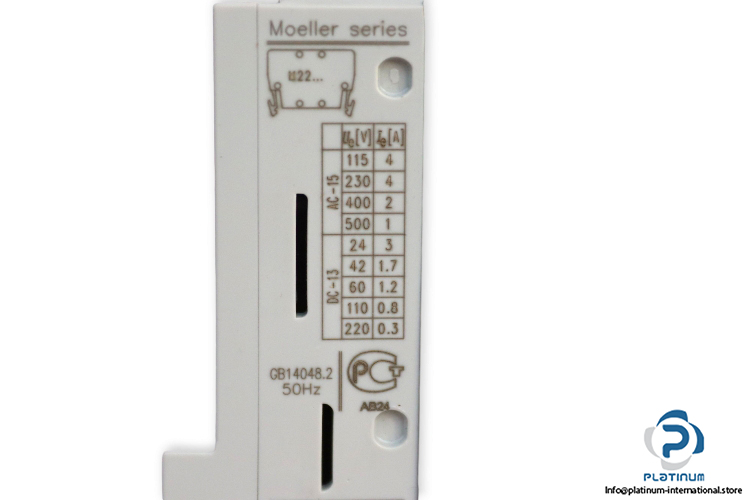

Current: 4 … 1 A (AC), 3 … 0.3 A (DC)
Rated Insulation Voltage: 690 V
Impulse withstand Voltage: 6 kV
Rated Operational Current: 55 A
Nominal Current: 63 A
Overload current setting: (50 … 63 A)
Rated Operating Power: 18.5 … 30 kW (230 … 400 V)

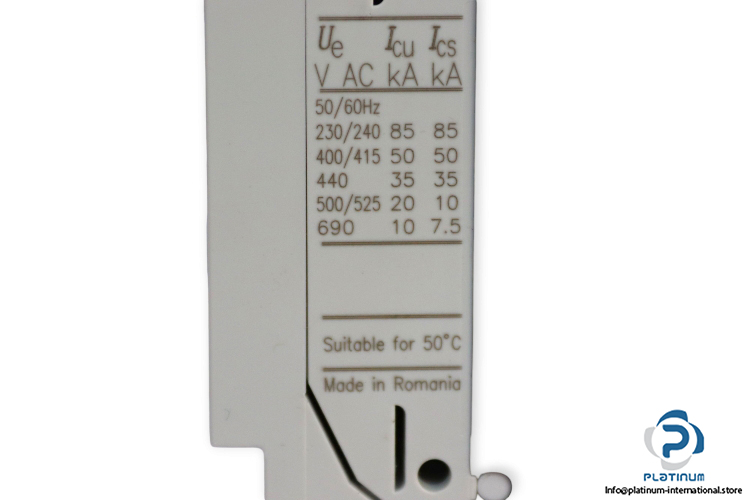

Breaking Capacity: 85 … 10 kA ( 230 … 690 V)
Handle type: Rocker lever
Operating Temperature: -25 … 70 °C
Degree of protection: IP20
Dimensions: 88 X 145 X 90 mm
