Eaton PKZM0-16 Motor-Protective Circuit-Breaker
New
In stock1 unitReady to ship
Motor-Protective Circuit-Breaker
MOELLER EATON PKZM0-16 motor-protective circuit-breaker with 10“16 A setting range, AC-3 motor rating up to 9 kW, and compliance with IEC/EN 60947 standards.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

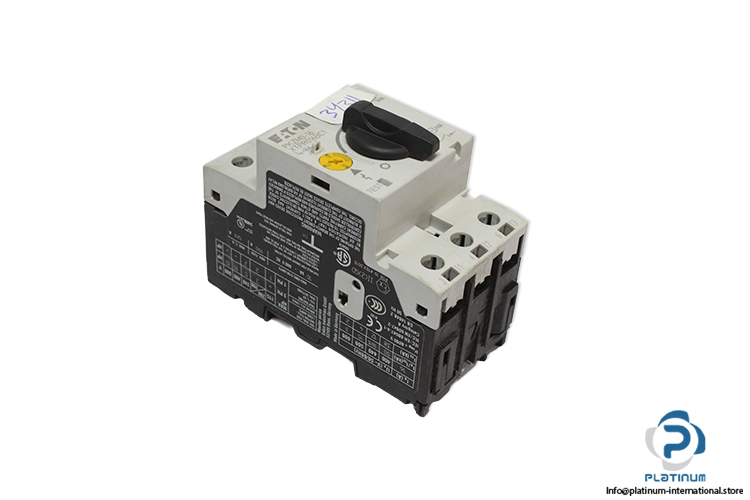

MOELLER EATON PKZM0-16 Motor-Protective Circuit-Breaker
The MOELLER EATON PKZM0-16 is a motor-protective circuit-breaker designed for reliable motor protection in industrial electrical systems. It provides precise overload protection, high operational safety, and compliance with international standards for demanding applications.
Manufacturer: MOELLER EATON
Type: Motor-Protective Circuit-Breaker
Model: PKZM0-16
Catalog No.: XTPR016BC1
SN: 4 015080 469384
Code: XTPR016BC1NL / MSAA046938 / 34W16
Max. Motor Rating (AC-3):
220 V / 230 V / 240 V “ 4 kW
380 V / 400 V / 415 V “ 7.5 kW
440 V “ 9 kW
Damp Heat, Cyclic “ IEC 60068-2-30
| Setting Range (Overload Releases Ir) | 10 “ 16 A |
| Rated Impulse Withstand Voltage (Uimp) | 6000 V |
| Rated Operational Voltage (Ue) | 690 V AC |
| Rated Uninterrupted Current (Iu = Ie) | 16 A |
| Rated Frequency (f) | 40 “ 60 Hz |
| Standards | IEC/EN 60947, VDE 0660, UL, CSA |
| Climatic Proofing | Damp Heat, Constant “ IEC 60068-2-78 |
| Ambient Temperature (Storage) | -40 “ 80 °C |
| Dimensions (H x W x D) | 93 x 45 x 76 mm |
