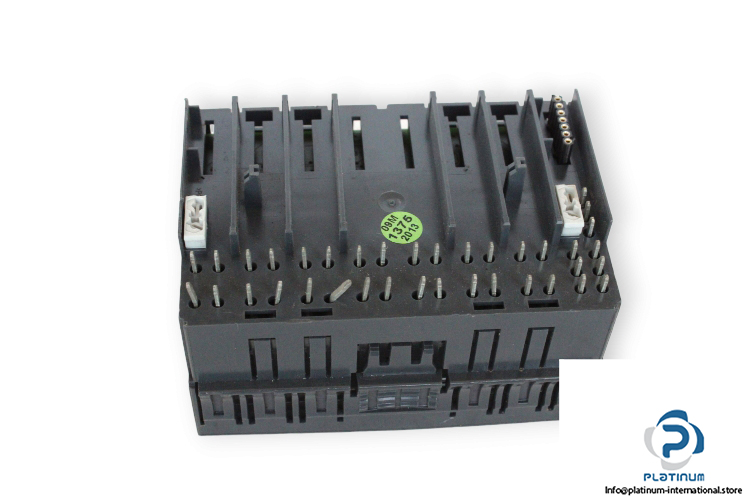

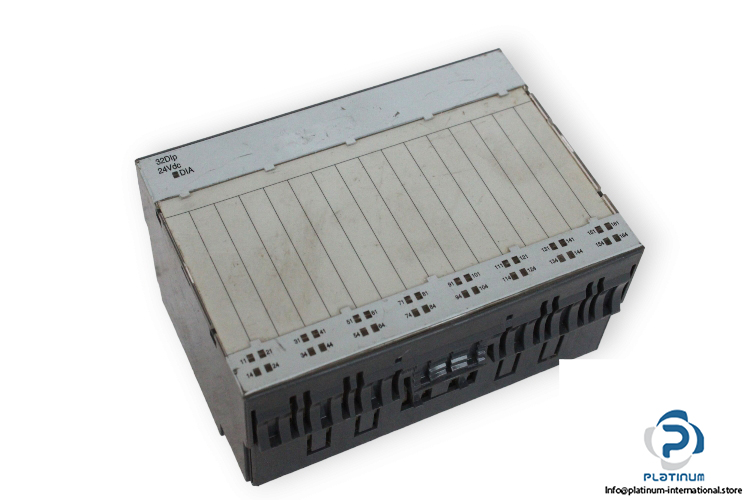

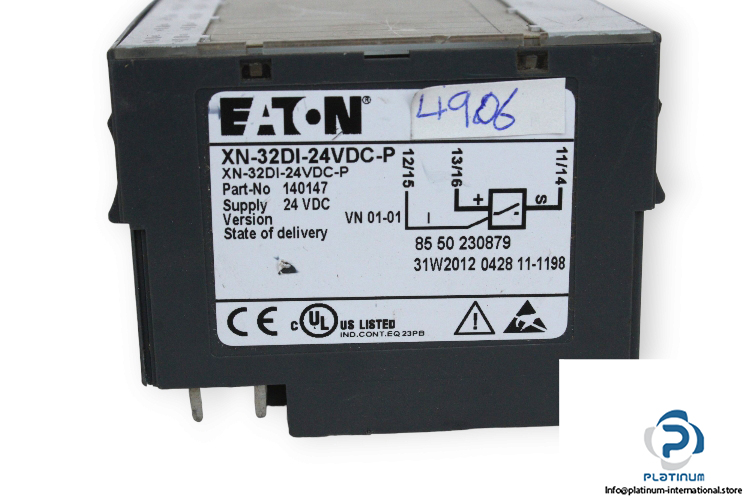

Eaton XN-32DI-24VDC-P Input Block Module
Manufacture: Eaton
Type: Input block module
Model: XN-32DI-24VDC-P
Part No.: 140147
Rated operational voltage: 24 V DC
Rated insulation voltage Ui: 500 V
No. of digital input (DI): 32
Electric connection type: Screw-/spring clamp connection
Current consumption: 30 mA, from module bus/30 mA, from supply terminal
Mounting method: Rail mounting possible
No. of channels: 32
Degree of protection: IP20
Ambient operating temperature: 0 … 55°C
Dimensions: 100.8 x 55.4 x 74.1 mm
