Industrial Fans Axial Fans & Fan Filter Units

EBM R2D180-AL02-15 Centrifugal FAN

Name: EBM R2D180-AL02-15 CENTRIFUGAL FAN
SKU: 1063828
Price: 169.99 USD
Availability: LimitedAvailability

Used

Available on request

169,99$

CENTRIFUGAL FAN

Dual-speed centrifugal fan by EBM with 16 blades, 400 V input, and ball-bearing motor. Built for efficient industrial airflow with durable plastic housing and 180×78 mm circular frame.

Manufacturer

EBM

SKU

1063828

Category

Axial Fans & Fan Filter Units

Condition

Used

180 400V Ball bearing Blade Centrifugal Circular dual-speed Ebm Fan frame Hvac Industrial M2D068-CF mm motor Plastic R2D180-AL02-15

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

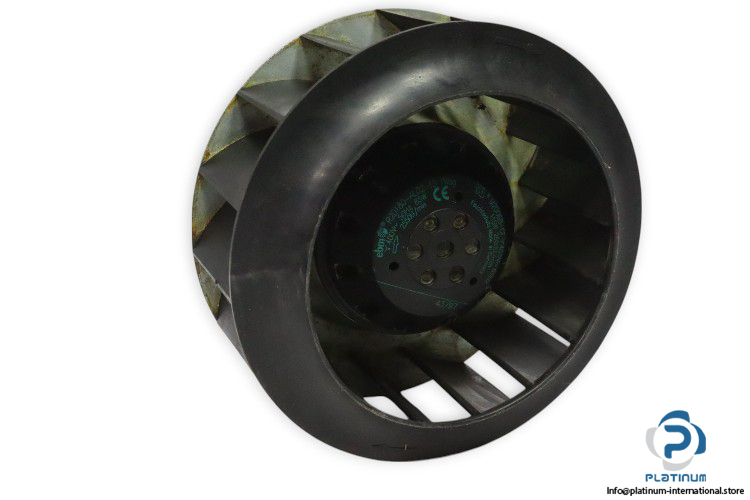

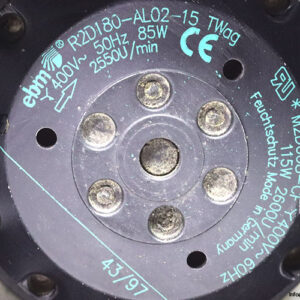

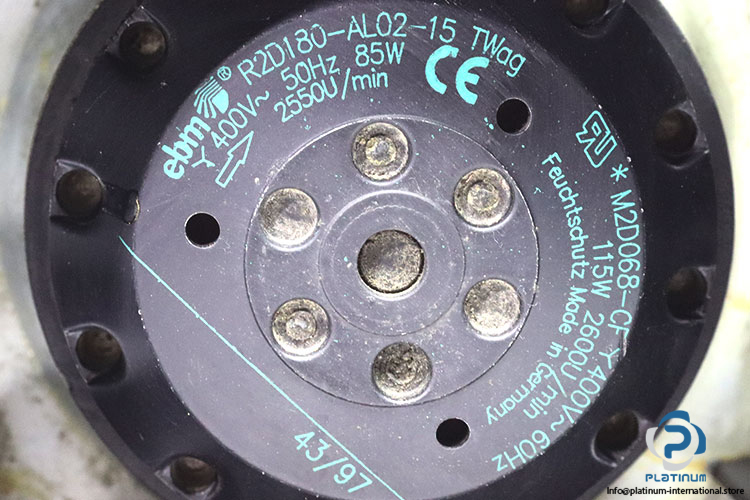

EBM R2D180-AL02-15 CENTRIFUGAL FAN

The EBM R2D180-AL02-15 centrifugal fan is designed for high-efficiency airflow in industrial and HVAC applications. Featuring a 16-blade circular frame, ball-bearing motor, and durable plastic construction, this fan ensures reliable operation across dual-speed settings and variable frequencies.

Manufacturer: Ebm

Type: Centrifugal Fan

Model: R2D180-AL02-15

Motor: M2D068-CF

Code: 43/97

Frame Shape	Circular Frame
No. of Blades	16

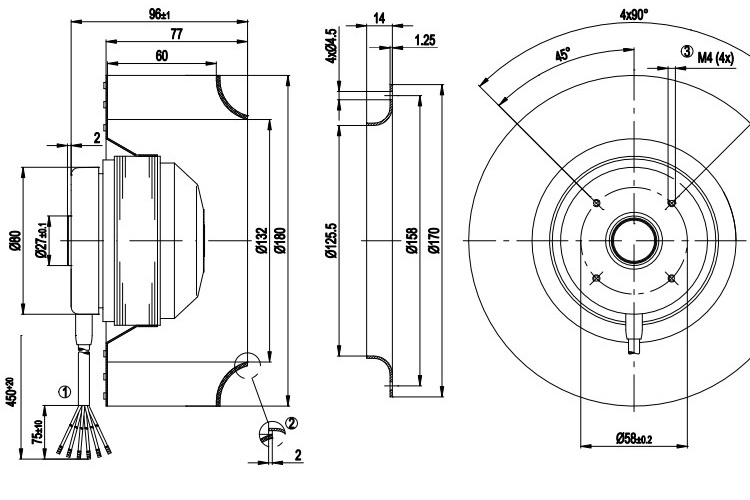

Dimensions (mm)	180x78
Direction	Push
Voltages (V)	400
Power Rating (W)	85/115
Speed (rpm)	2250/2600
Current (A)	0.17 A
Frequency	50/60 Hz
Inverter	Without Inverter
Number of Wires	6
Blade Material / Fan Housing Material	Plastic
Motor Bearing	Ball bearing

Specification	Value
Weight	1,7 kg
Condition	Used
Type of Product	Centrifugal Fan
Inverter	Without Inverter
Blade Material	Plastic
Fan Housing Material	Plastic
Direction	Push
Frequency [Hz]	50/60
Frame Shape	Circular Frame
Voltage [V]	400
Current [A]	0.17
No. of Wires	6
Manufacturer	EBM
Shelf No.	250631
No. of Blades	16
Dimensions [mm]	180X78
Power [kW]	0.085/0.115
Speed [RPM]	2250/2600
