Ebmpapst 3214 JH Axial FAN
Used
In stock1 unitReady to ship
AXIAL FAN
Compact axial fan from Ebmpapst featuring a 92 mm square frame, 6800 rpm speed, and 146 m³/h airflow. Built with ball bearings and plastic housing for reliable thermal management in electronic and industrial systems.14624v3214743852292AirflowAxialBallbearingCompactCoolingdcEbmpapstenclosureFanHighIndustrialJHm3hmmSpeed
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

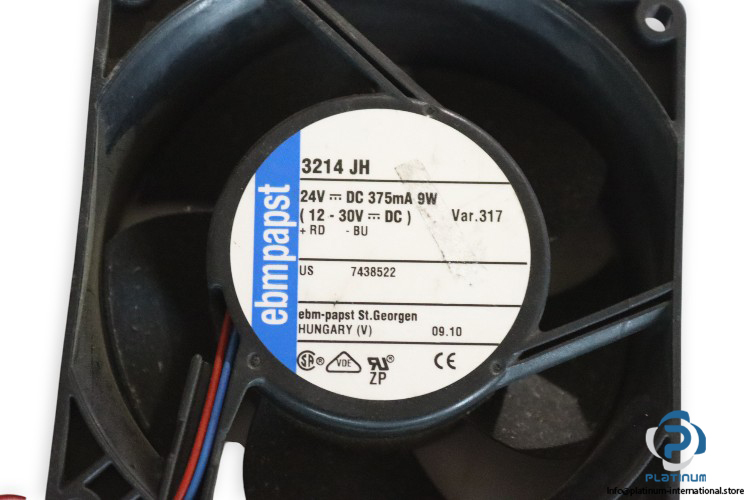

EBMPAPST 3214 JH AXIAL FAN
The Ebmpapst 3214 JH axial fan is built for reliable, high-speed airflow in compact enclosures. With a 92 mm square frame, ball bearing support, and 6800 rpm speed, it ensures efficient cooling performance across a wide ambient temperature range. Ideal for electronic cabinets, control panels, and industrial ventilation systems.
Manufacturer: Ebmpapst
Type: Axial Fan
Model: 3214 JH
Code: 317
Part No.: 7438522
| Frame Shape | Square Frame |
| Number of Blades | 5 |

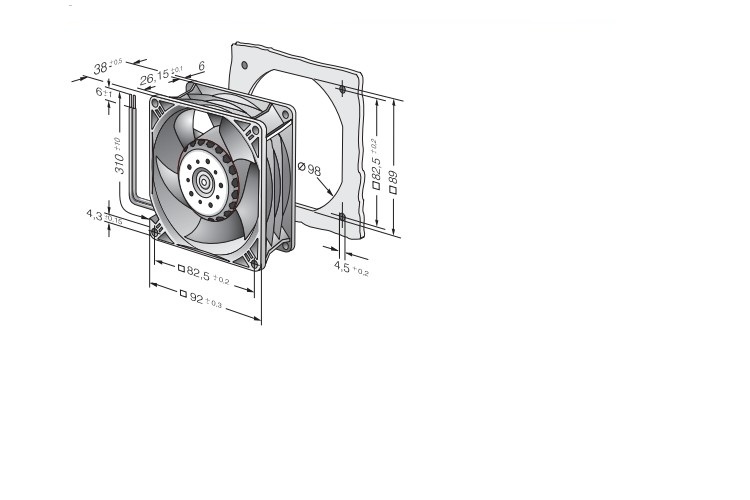

| Dimensions (mm) | 92x92x38 |
| Direction | Push |
| Bearing | Ball Bearing |
| Voltages (V DC) | 24 (12 to 30) |
| Power Rating | 9 W |
| Speed | 6800 rpm |
| Flow Rate | 146 m³/h (86.39 CFM) |
| Current | 0.375 A |
| Inverter | Without Inverter |
| Number of Wires | 2 |
| Blade Material / Fan Housing Material | Plastic / Plastic |
| Ambient Temperature | -20 to 70 °C |
