Ebmpapst BCI 63.25 DC Gearmotor
DC Gearmotor
Ebmpapst BCI63.25 DC Gearmotor, 24 V DC, 46 W, 3560 rpm, torque 0.175 Nm with Compactline worm gearbox ratio 1:7.85. Reliable, efficient, and compact drive solution for automation and mechanical systems.Ebmpapst BCI63.25 DC Gearmotor with Compactline Gearbox

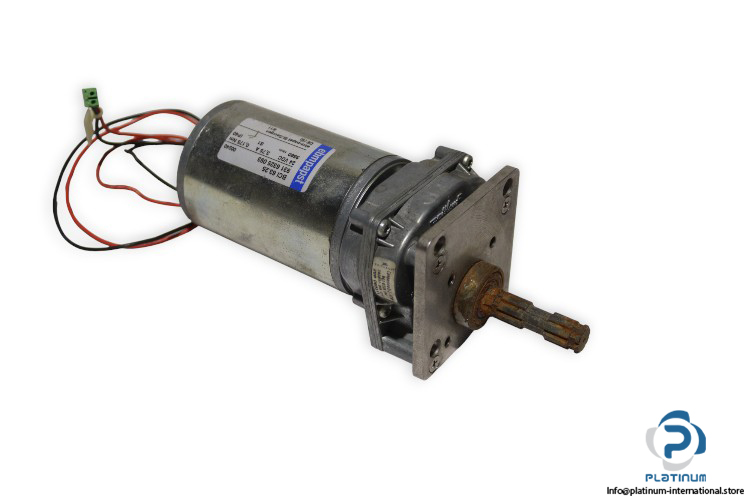

The Ebmpapst BCI63.25 DC Gearmotor is a high-performance and compact drive solution designed for continuous-duty industrial applications. Equipped with the robust Compactline worm gearbox, this motor delivers precise torque transmission, excellent efficiency, and long service life. It is ideal for automation systems, conveyors, and mechanical drives that demand durability and reliable motion control.

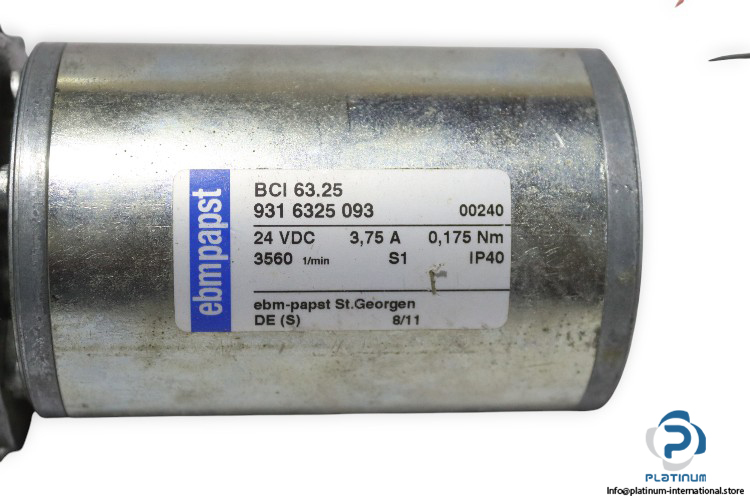

Manufacturer: Ebmpapst / ebm-papst
Type: DC Gearmotor with Compactline Gearbox / BCI-Motor
Model: BCI63.25
Order No.: 931 6325 093
Code: 00240
Gearbox Data
This gearmotor stands out for its quiet operation, low maintenance, and exceptional reliability. Its combination of precise control, high torque density, and long-lasting components makes it an excellent choice for advanced motion systems, packaging equipment, and automation lines.
| Voltage Supply | 24 V DC |
| Current Draw | 3.75 A |
| Nominal Output Power | 46 W |
| Nominal Speed | 3560 rpm |
| Torque (Nominal) | 0.175 Nm |
| Starting Torque | 1100 mNm |
| Duty Type | S1 “ Continuous Operation |
| Rotor Moment of Inertia | 400 gcm² |
| Nominal Efficiency Approx. | 71% |
| Free-running Current | 0.4 A |
| Protection Class | IP40 |

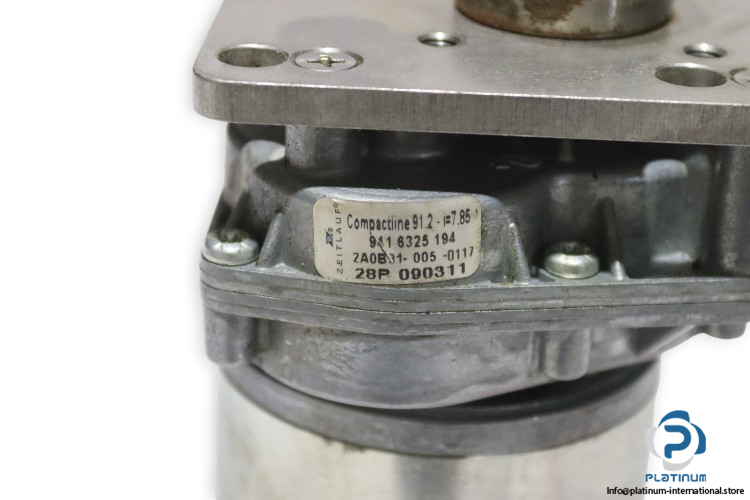

| Part No. | 941 6325 194 |
| Code | 2A0B-005-0117 / 28P 090311 |
| Gearbox Type | Worm Gear Reducer |
| Series | Compactline 91.2 |
| Gear Ratio (i) | 1:7.85 |
| Shaft Type | Solid output shaft with keyway |
