Ebmpapst G2E120-AR77-01 Blower FAN
Used
In stock1 unitReady to ship
189,99$
BLOWER FAN
Metal-constructed blower fan with ball bearing, 230 V operation, and dual-speed range, designed for consistent airflow and thermal performance in industrial systems.115x63230v50-60HzACBallbearingblowerCoolingEbmpapstFanG2E120-AR77-01High-SpeedHousingIndustrialMetalmmVentilation
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

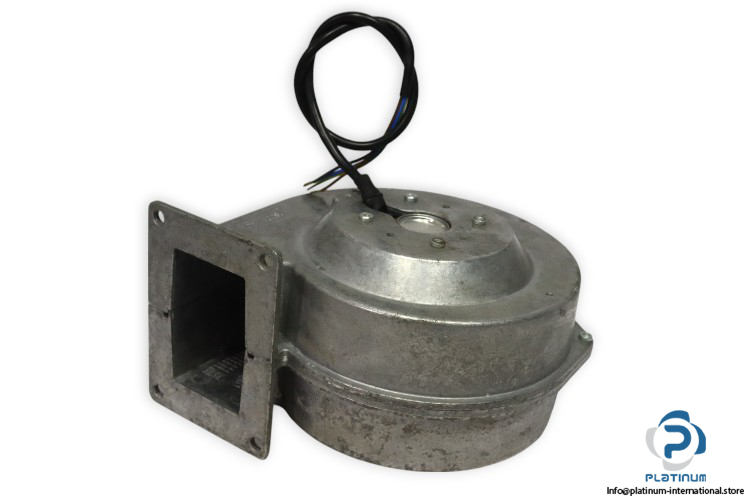

EBMPAPST G2E120-AR77-01 BLOWER FAN
High-performance blower fan from Ebmpapst designed for ventilation and cooling in demanding industrial environments. Featuring ball bearing support and metal construction, it delivers reliable airflow under varying voltages and ambient temperatures.

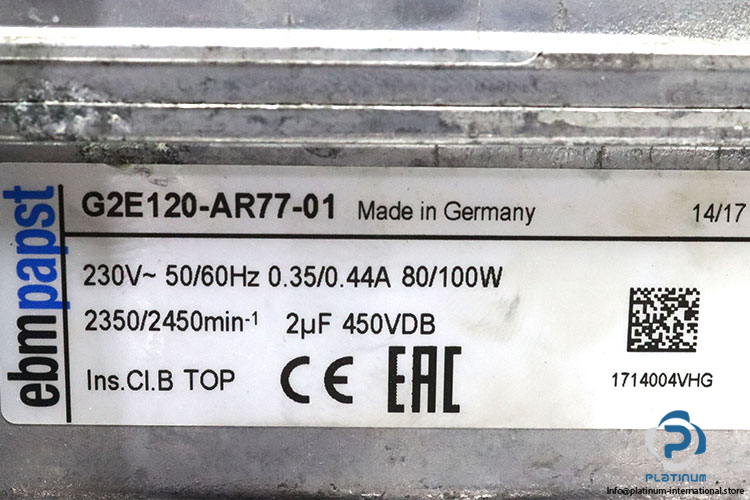

Manufacturer: Ebmpapst
Type: Blower Fan
Model: G2E120-AR77-01
Part No.: 1714004VHG
Code: 14/17
| Direction | Push |

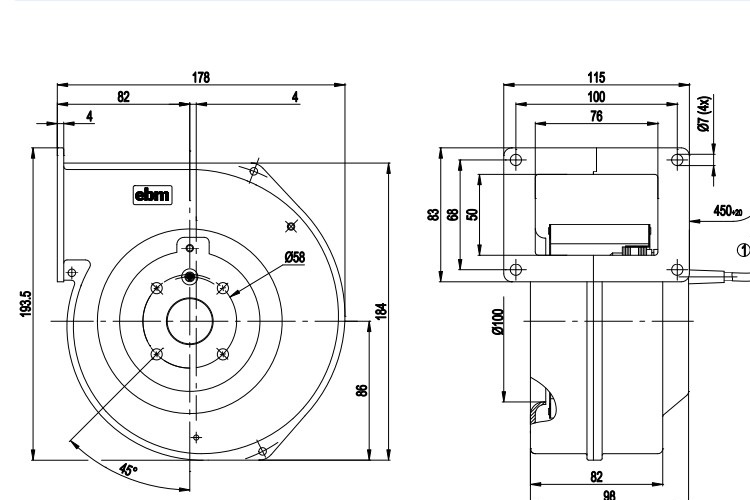

| Dimension | 115x63 mm |
| Bearing | Ball bearing |
| Nominal Voltage | 230 V |
| Rated Current | 0.35/0.44 A |
| Frequency | 50/60 Hz |
| Speed | 2350/2450 rpm |
| Power Input | 0.08/0.1 kW |
| Max. Ambient Temperature | 45 °C |
| Min. Ambient Temperature | -25 °C |
| Blade/Fan Housing Material | Metal |
| Capacitor Voltage (VDB) | 450 V |
| Capacitor Capacity | 2 µF |
| No. of Wires | 3 |
| Insulation Class | B |
