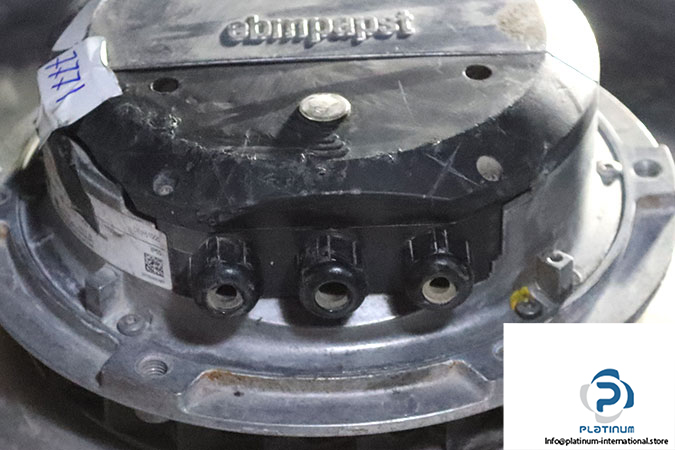

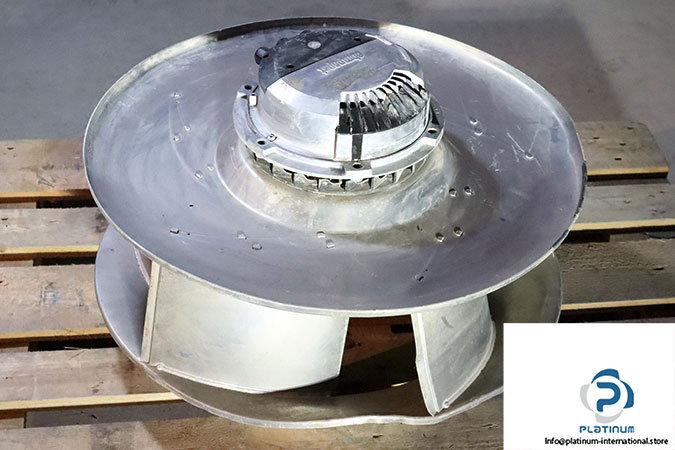

Ebmpapst K3G630-AB06-03 EC Centrifugal FAN

Manufacturer: EBMPAPST
Type: EC Centrifugal Fan
Model: K3G630AB0603

Frequency: 50 … 60 Hz
Size: 630 mm
Air flow (q_v): 10005 m³/h
Rated Voltage: 3-Phase, 380 – 480 V AC
Rated Current: 6.6 A
Rated Power: 4400 W
Rated Speed: 1700 min^-1
Surface of Rotor: Coated in black
Material of Impeller: Aluminum Sheet
No. of Blades: 6
Direction of Rotation: Clockwise
Protection Class: IP55
Ambient Motor Temperature: -25 … 50 °C
Diameter (Outer x Motor x Depth) : 635 x 463 x 252 mm
