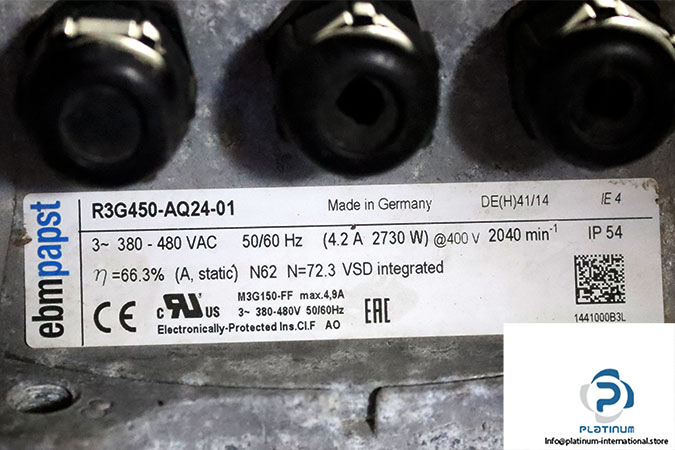

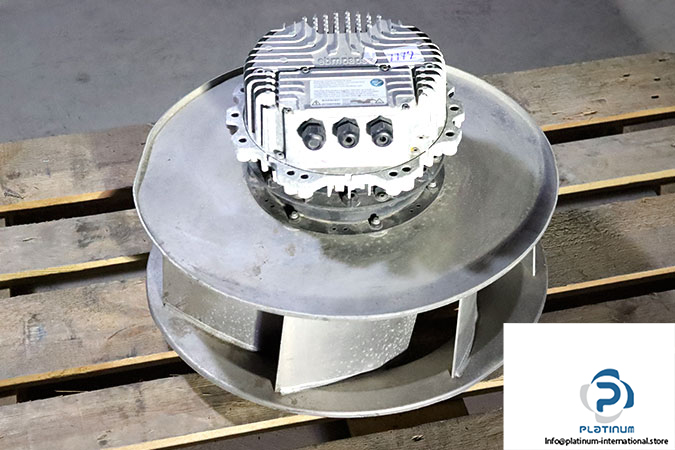

Ebmpapst R3G450-AQ24-01 EC Centrifugal FAN

Manufacturer: EBMPAPST
Type: EC Centrifugal Fan
Model: R3G450AQ2401

Frequency: 50 … 60 Hz
Size: 450 mm
Air flow (q_v): 7585 m³/h
Rated Voltage: 3-Phase, 380 – 480 V AC
Rated Current: 4.2 A
Rated Power: 2730 W
Rated Speed: 2040 min^-1
Surface of Rotor: Coated in black
Material of Impeller: Aluminum Sheet
No. of Blades: 7
Direction of Rotation: Clockwise
Protection Class: IP54
Ambient Motor Temperature: -25 … 60 °C
Diameter (Outer x Motor x Depth): 505 x 232 x 357 mm
