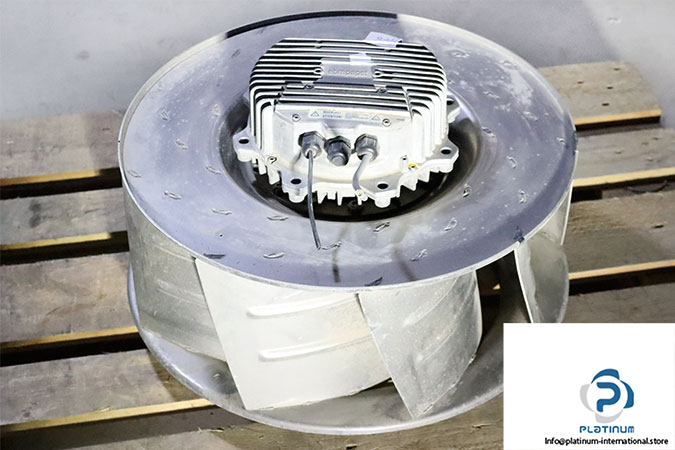

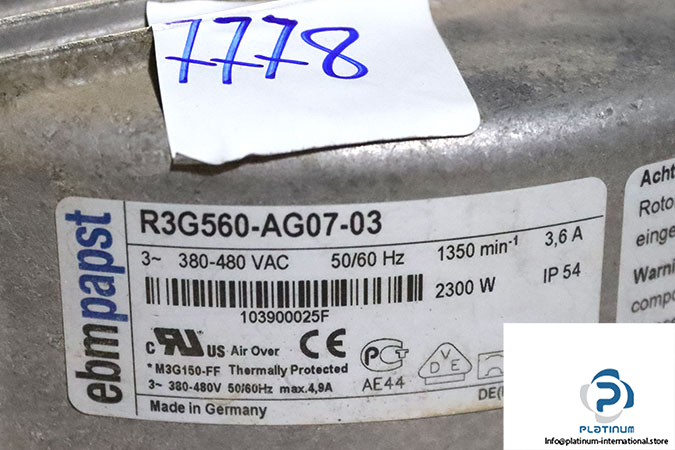

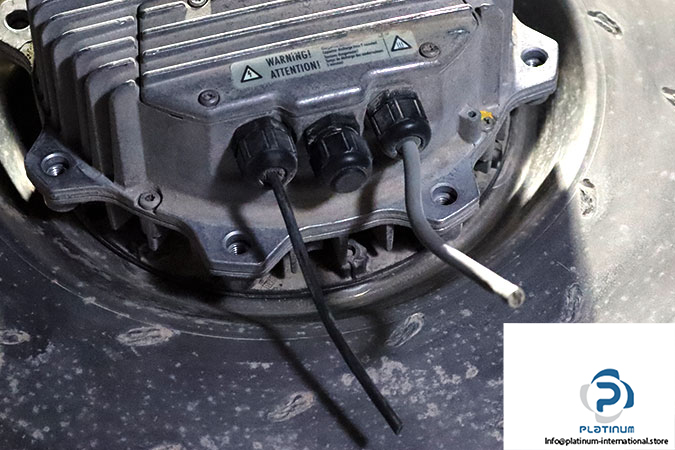

Ebmpapst R3G560-AG07-03 Centrifugal FAN

Manufacturer: EBMPAPST
Type: Centrifugal Fan
Model: R3G560AG0703

Frequency: 50 … 60 Hz
Size: 560 mm
Air Flow (q_v): 8010 m³/h
Rated Voltage: 3-Phase, 380 – 480 V AC
Rated Current: 3.6 A
Rated Power: 2300 W
Rated Speed: 1350 min^-1
Surface of Rotor: Coated in black
Material of Impeller: Aluminum Sheet
No. of Blades: 9
Direction of Rotation: Clockwise
Protection Class: IP54
Ambient Motor Temperature: -40 … 80 °C
Diameter (Outer x Motor x Depth): 565 x 344 x 235 mm
